1995 Kawasaki ZR1100 Zephyr Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1995 Kawasaki ZR1100 Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

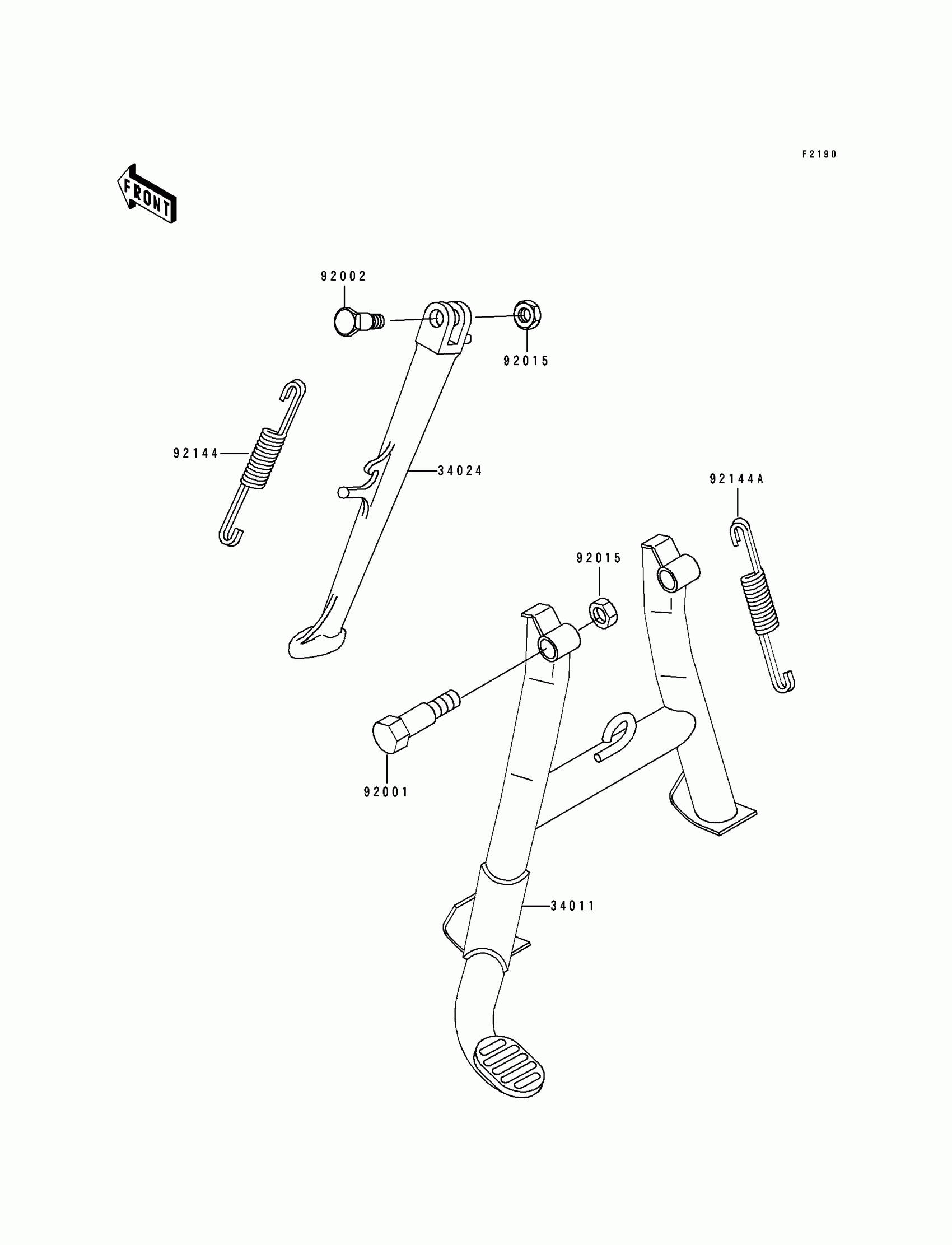

1995 Kawasaki ZR1100 Zephyr Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34011

STAND-CENTER,C.GRAY

34011-1153-EZ

1

$142.48

In stock

34024

STAND-SIDE,C.GRAY

34024-1283-EZ

1

$115.50

In stock

92001

BOLT,CENTER STAND

92001-1214

1
Out of stock

92002

BOLT,SIDE STAND

92002-1813

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92144

SPRING,SIDE STAND

92144-1127

1
Out of stock

92144A

SPRING,SIDE STAND

92144-1293

1
Out of stock
