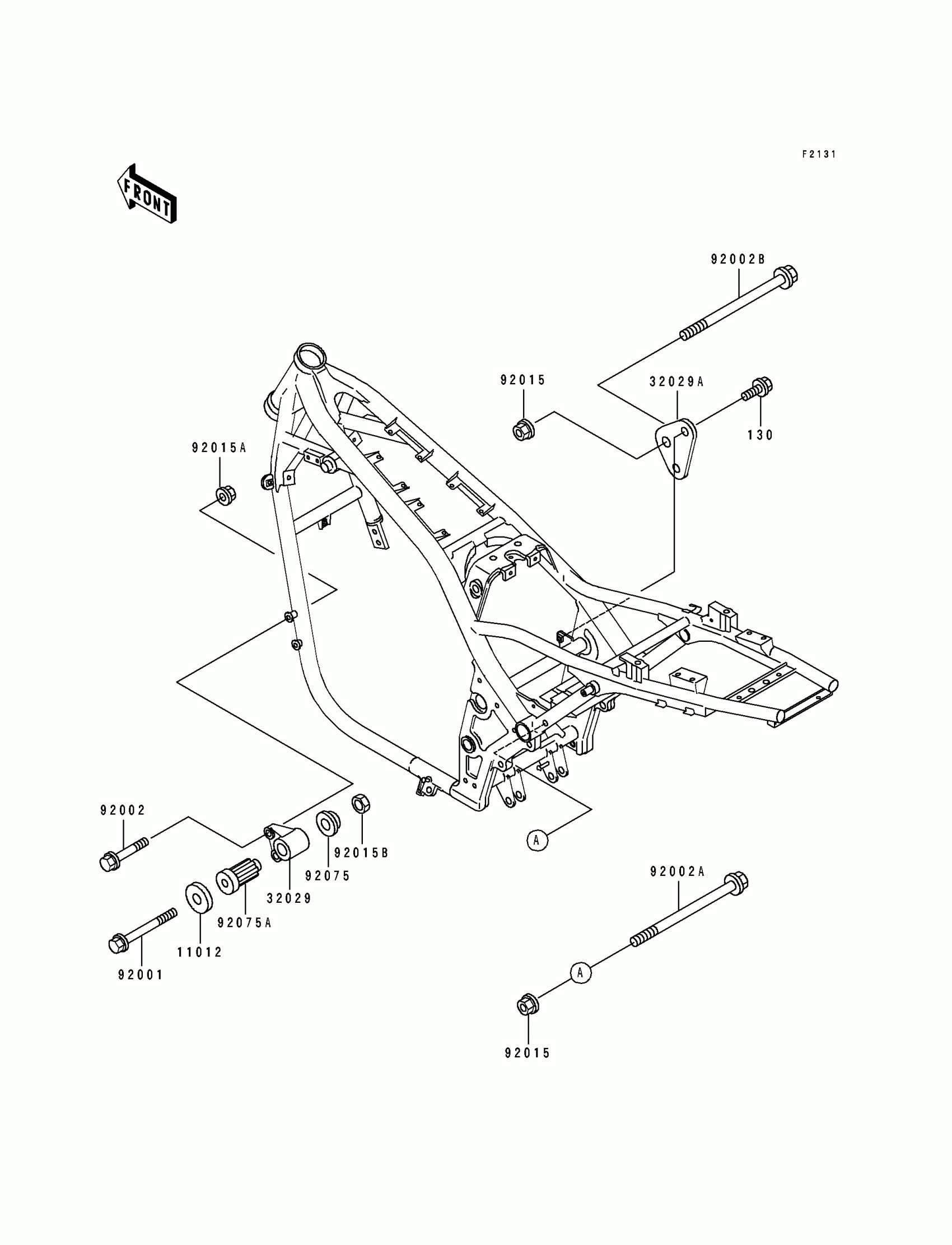

Kawasaki ZR1100 Zephyr Frame Fittings Diagram

Description

Price

11012

CAP,ENGINE BRACKET

11012-1228

$7.49

32029

BRACKET-ENGINE,FR,RH,C.GRAY

32029-1680-EZ

$37.06

32029A

BRACKET-ENGINE,RR,UPP

32029-1809

Unavailable

92001

BOLT,FLANGED,10X105,BLACK

92001-1751

$8.10

92002

BOLT,FLANGED,8X90

92002-1401

$7.69

92002A

BOLT,FLANGED,10X170

92002-1470

Unavailable

92002B

BOLT,FLANGED,10X190

92002-1548

$14.76

92015

NUT,FLANGED,10MM

92015-1180

$3.29

92015A

NUT,FLANGED,8MM,BLACK

92015-1183

$4.07

92015B

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$16.49

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

$31.41

130

BOLT-FLANGED,8X20

130J0820

Unavailable
