2005 Kawasaki ZR-7S (Canada Only) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

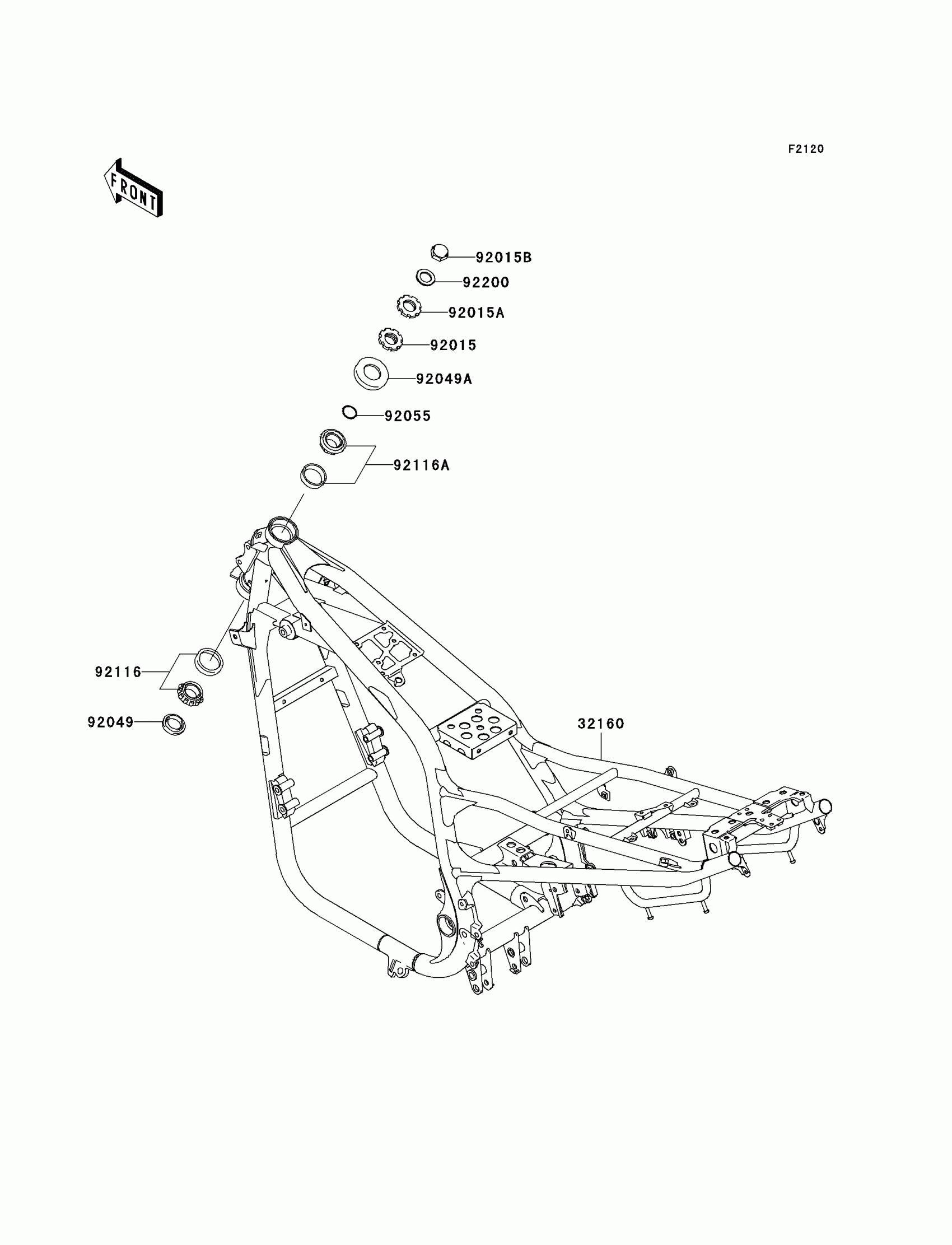

2005 Kawasaki ZR-7S (Canada Only) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,C.GRAY

32160-1704-EZ

1

$2,164.61

In stock

92015

NUT,25MM

92015-1803

1

$25.61

In stock

92015A

NUT,25MM

92015-1810

1

$19.66

In stock

92015B

NUT,CAP,22MM

92015-1873

1

$29.82

In stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92049A

SEAL-OIL,STEERING STEM

92049-1214

1
Out of stock

92055

RING-O,ID=24.5

92055-1459

1

$3.75

In stock

92116

1

$33.21

In stock

92116A

1

$43.76

In stock

92200

WASHER,22.5X36X3.2

92200-0134

1
Out of stock
