2005 Kawasaki ZR-7S (Canada Only) Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

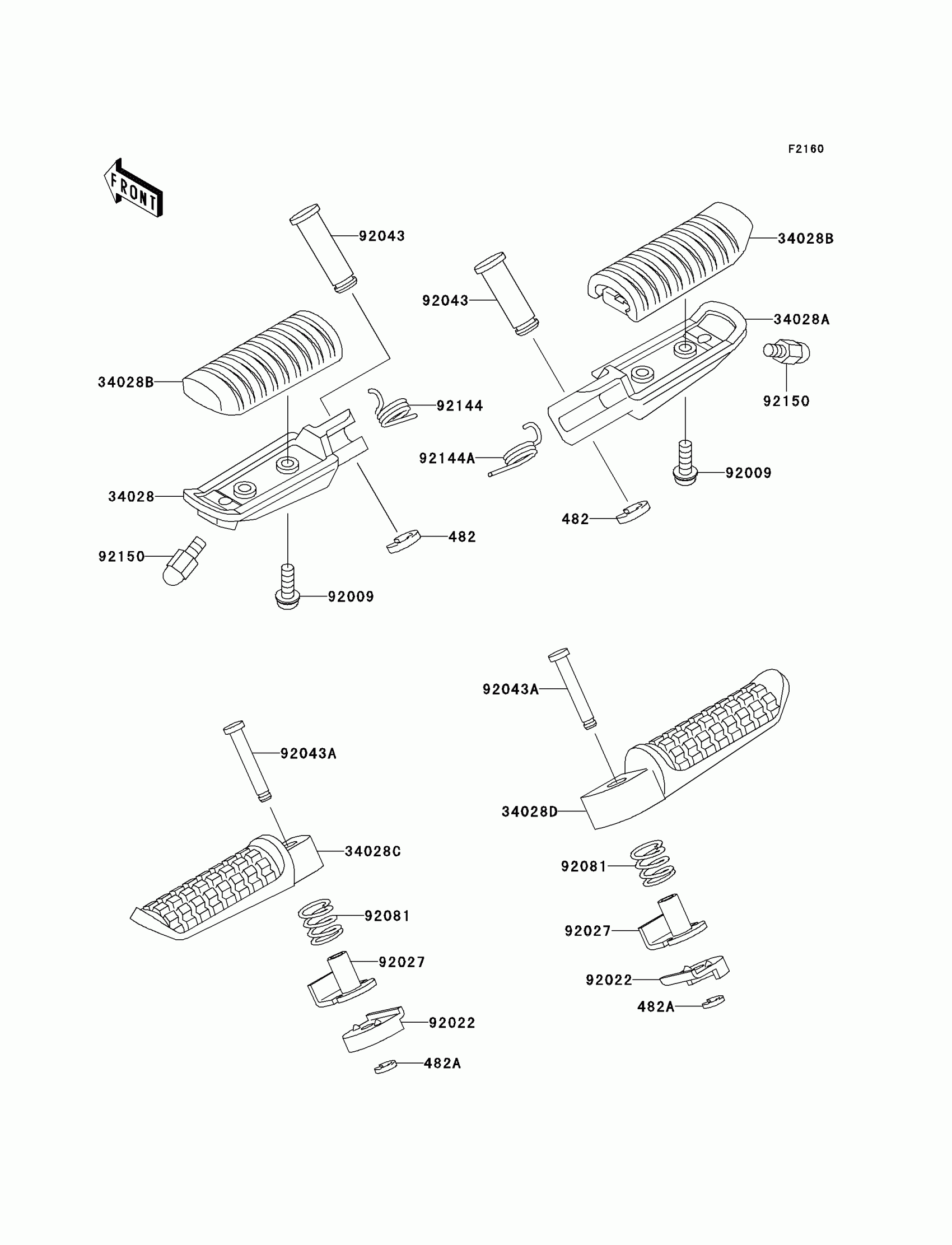

2005 Kawasaki ZR-7S (Canada Only) Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

482

CIRCLIP-TYPE-E,10MM

482L0100

1
Out of stock

482A

CIRCLIP-TYPE-E,5MM

482L5000

1
Out of stock

34028

STEP,FR,LH

34028-1428

1
Out of stock

34028A

STEP,FR,RH

34028-1429

1
Out of stock

34028B

STEP,RUBBER

34028-1430

1
Out of stock

34028C

STEP,RR,LH

34028-1488

1
Out of stock

34028D

STEP,RR,RH

34028-1489

1
Out of stock

92009

SCREW,5X14

92009-1404

1
Out of stock

92022

WASHER,STEP,RR

92022-1507

1
Out of stock

92027

COLLAR,STEP

92027-1732

1
Out of stock

92043

PIN,12X42.5

92043-1145

1
Out of stock

92043A

PIN,6X40

92043-1595

1
Out of stock

92081

SPRING,STEP,RR

92081-1612

1
Out of stock

92144

SPRING,STEP RETURN

92144-1567

1
Out of stock

92144A

SPRING,STEP RETURN

92144-1568

1
Out of stock

92150

BOLT,BANK SENSOR

92150-1114

1
Out of stock
