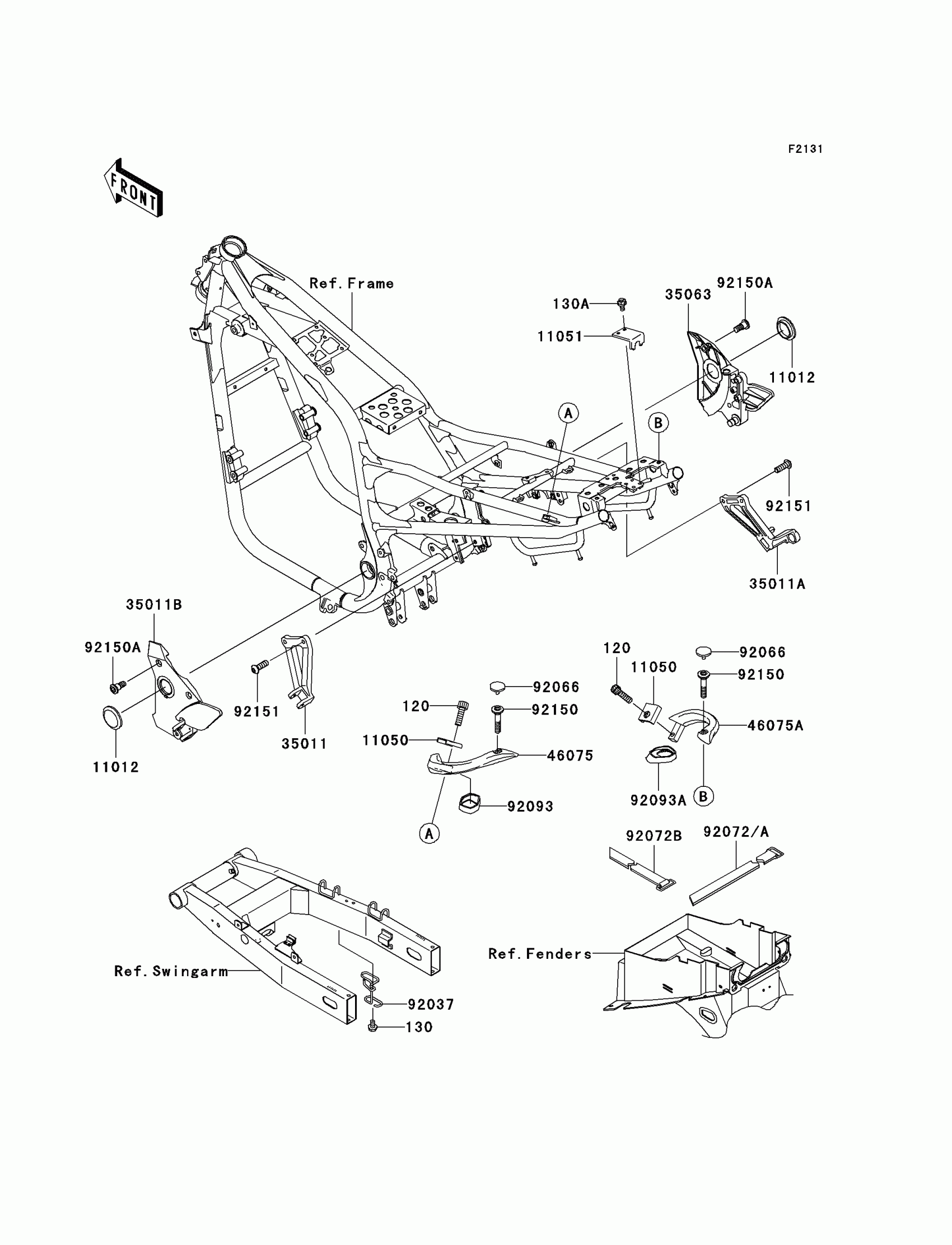

Kawasaki ZR-7S (Canada Only) Frame Fittings Diagram

Description

Price

120

BOLT-SOCKET,8X30

120S0830

Unavailable

130

BOLT-FLANGED

130J0610

Unavailable

130A

BOLT-FLANGED,6X12

130J0612

Unavailable

11012

CAP

11012-1657

$15.12

11050

BRACKET,TAIL GRIP

11050-1797

$2.56

11051

BRACKET,TAIL LAMP

11051-1455

$11.00

35011

STAY,RR,LH

35011-1554

$136.13

35011A

STAY,RR,RH

35011-1555

Unavailable

35011B

STAY,FRONT STEP,LH,C.GRAY

35011-1998-EZ

$241.32

35063

STAY,FRONT STEP,RH,C.GRAY

35063-1051-EZ

$241.32

46075

GRIP,RR,LH,F.BLACK

46075-1197-21

$132.73

46075A

GRIP,RR,RH,F.BLACK

46075-1198-21

$132.73

92037

CLAMP,TUBE

92037-1942

$13.80

92066

PLUG

92066-1216

$3.54

92072A

BAND,L=540

92072-1378

$25.51

92072B

BAND,L=160

92072-1381

$17.12

92093

SEAL,REAR GRIP,LH

92093-1476

$4.98

92093A

SEAL,REAR GRIP,RH

92093-1477

Unavailable

92150

BOLT,SOCKET,8X40

92150-1735

$9.94

92150A

BOLT,SOCKET,8X20

92150-1839

$1.57

92151

BOLT,SOCKET,8X25

92151-1593

Unavailable
