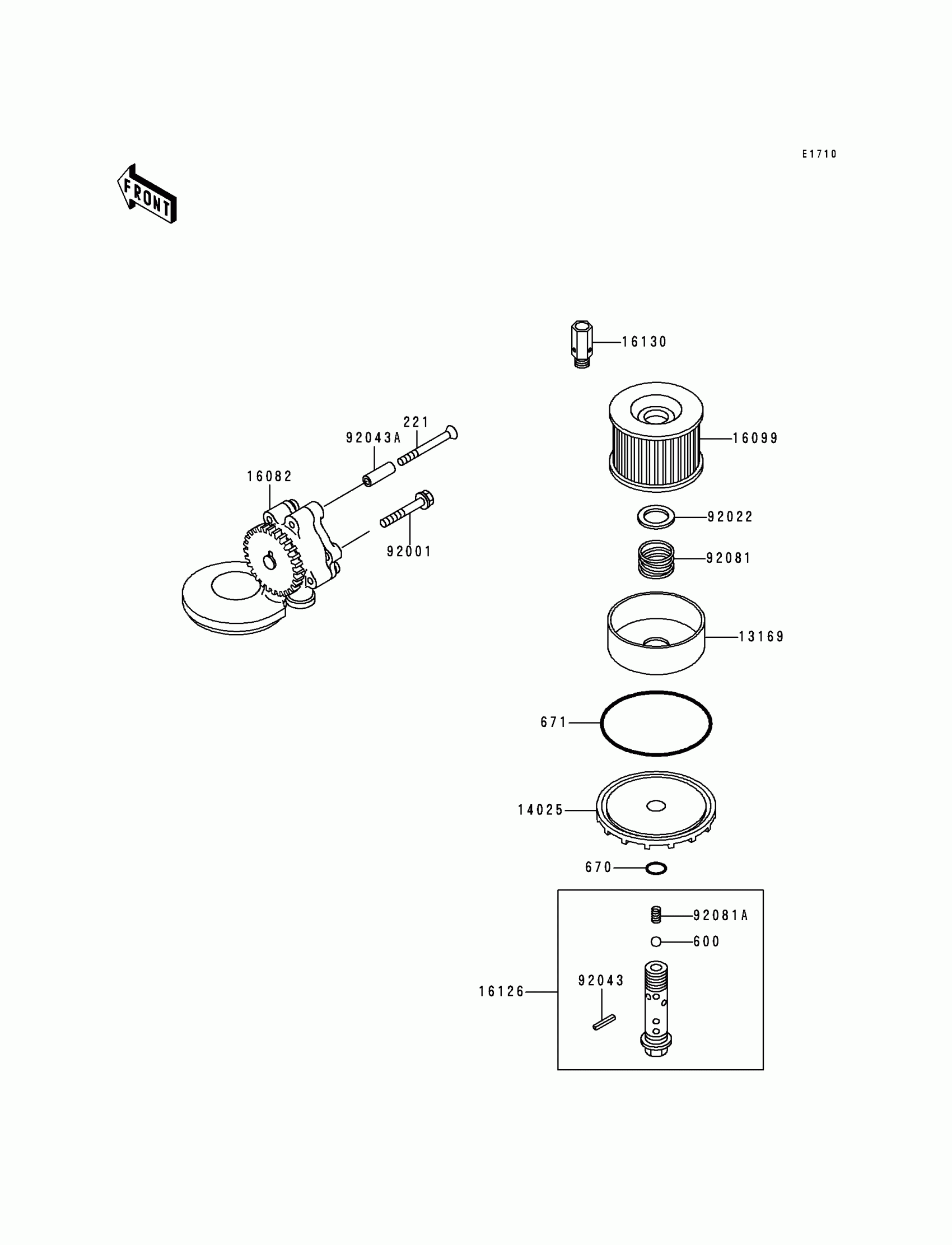

Kawasaki ZR-7 Oil Pump/Oil Filter Diagram

Description

Price

221

SCREW-CSK-CROS,6X55

221B0655

Unavailable

600

BALL-STEEL,3/8"

600A1200

$1.14

670

O RING,16MM

670B2016

$1.04

671

O RING,90MM

671B2590

$7.54

13169

PLATE,OIL FILTER

13169-1110

$7.49

14025

COVER,OIL FILTER,F.BLACK

14025-1422

$39.50

16082

PUMP-ASSY-OIL

16082-1158

$230.27

16099

ELEMENT-OIL FILTER

16099-003

$9.28

16126

VALVE,OIL FILTER

16126-1108

$37.32

16130

VALVE-ASSY-RELIEF

16130-1058

$37.32

92001

BOLT,FLANGED,6X45

92001-165

$3.98

92022

WASHER,20.5X30X1

92022-1012

$3.32

92043

PIN,SPRING,2X20

92043-111

$5.46

92043A

92043-1603

$2.51

92081

SPRING,OIL FILTER

92081-1018

$3.54

92081A

SPRING

92081-109

$10.85
