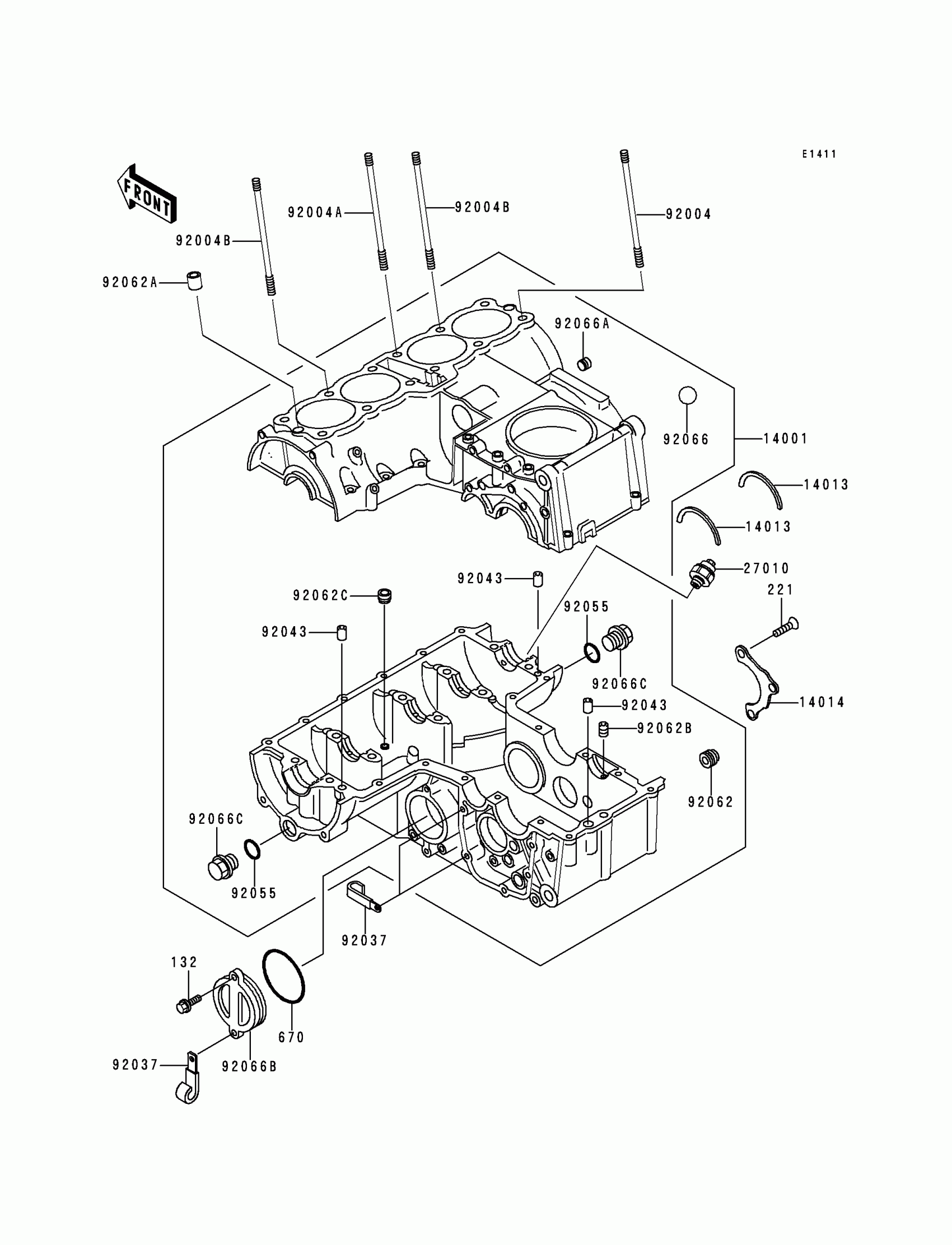

Kawasaki ZR-7 Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X20

132Y0620

Unavailable

221

SCREW-CSK-CROS,6X20

221B0620

$1.71

670

O RING,46MM

670E3046

$20.00

14001

SET-CRANKCASE

14001-5370

$1,758.70

14013

RING-POSITION

14013-004

$7.76

14014

PLATE-POSITION,SECONDARY SHAFT

14014-1007

$11.81

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

92004

STUD,10X133

92004-1231

$15.71

92004A

STUD,10X153

92004-1232

$18.27

92004B

STUD,10X116

92004-1233

$17.46

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92055

RING-O,20X2

92055-1146

$6.55

92062

NOZZLE

92062-014

$9.56

92062A

NOZZLE

92062-016

Unavailable

92062B

NOZZLE,6X8,SILVER

92062-1081

$5.63

92062C

NOZZLE,5X6,SILVER

92062-1086

$3.69

92066

PLUG,RUBBER BALL,6.7

92066-057

$4.58

92066A

PLUG

92066-1005

$1.64

92066B

PLUG,SECONDARY SHAFT,52X19

92066-1019

$18.53

92066C

PLUG,MAIN GALLERY,18X9,BLACK

92066-1096

$11.03
