2000 Kawasaki ZR-7 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

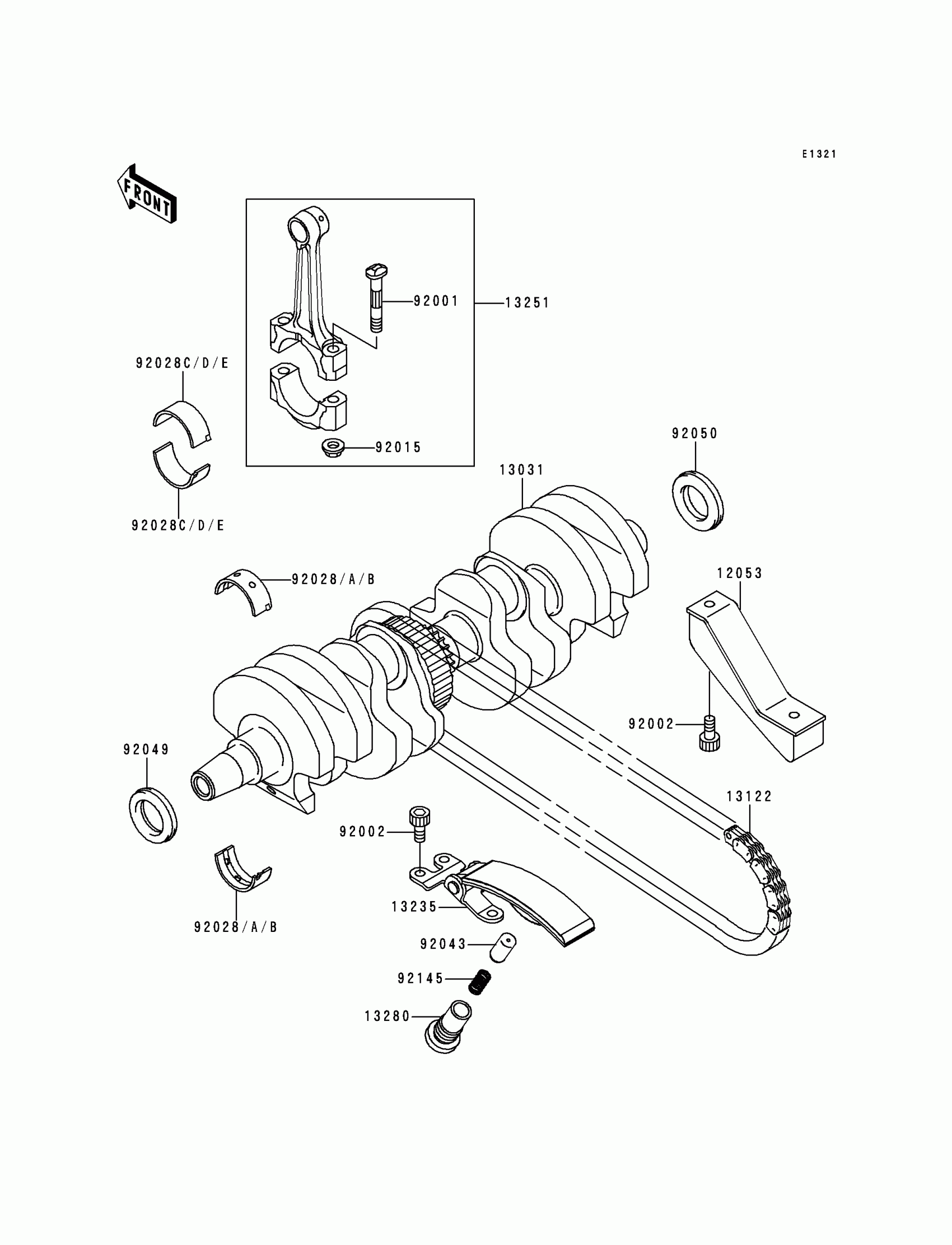

2000 Kawasaki ZR-7 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

1

$53.96

In stock

13031

CRANKSHAFT-COMP

13031-1458

1

$1,428.09

In stock

13122

CHAIN,63-139X52L(TUBAKIMOTO)

13122-007

1
Out of stock

13235

1

$131.60

In stock

13251

ROD-ASSY-CONNECTING,K

13251-1065-KK

1
Out of stock

13280

HOLDER

13280-1145

1

$38.38

In stock

92001

1

$9.27

In stock

92002

BOLT,SOCKET,6X14

92002-1592

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92028

1

$13.29

In stock

92028A

—

$13.29

In stock

92028B

—

$13.29

In stock

92028C

1

$16.25

In stock

92028D

—

$16.25

In stock

92028E

—

$16.25

In stock

92043

PIN

92043-076

1

$11.22

In stock

92049

SEAL-OIL,HSCY25X39X7

92049-1090

1
Out of stock

92050

SEAL-OIL,HSCY25397

92050-081

1
Out of stock

92145

SPRING

92145-1270

1

$2.29

In stock
