2000 Kawasaki ZR-7 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

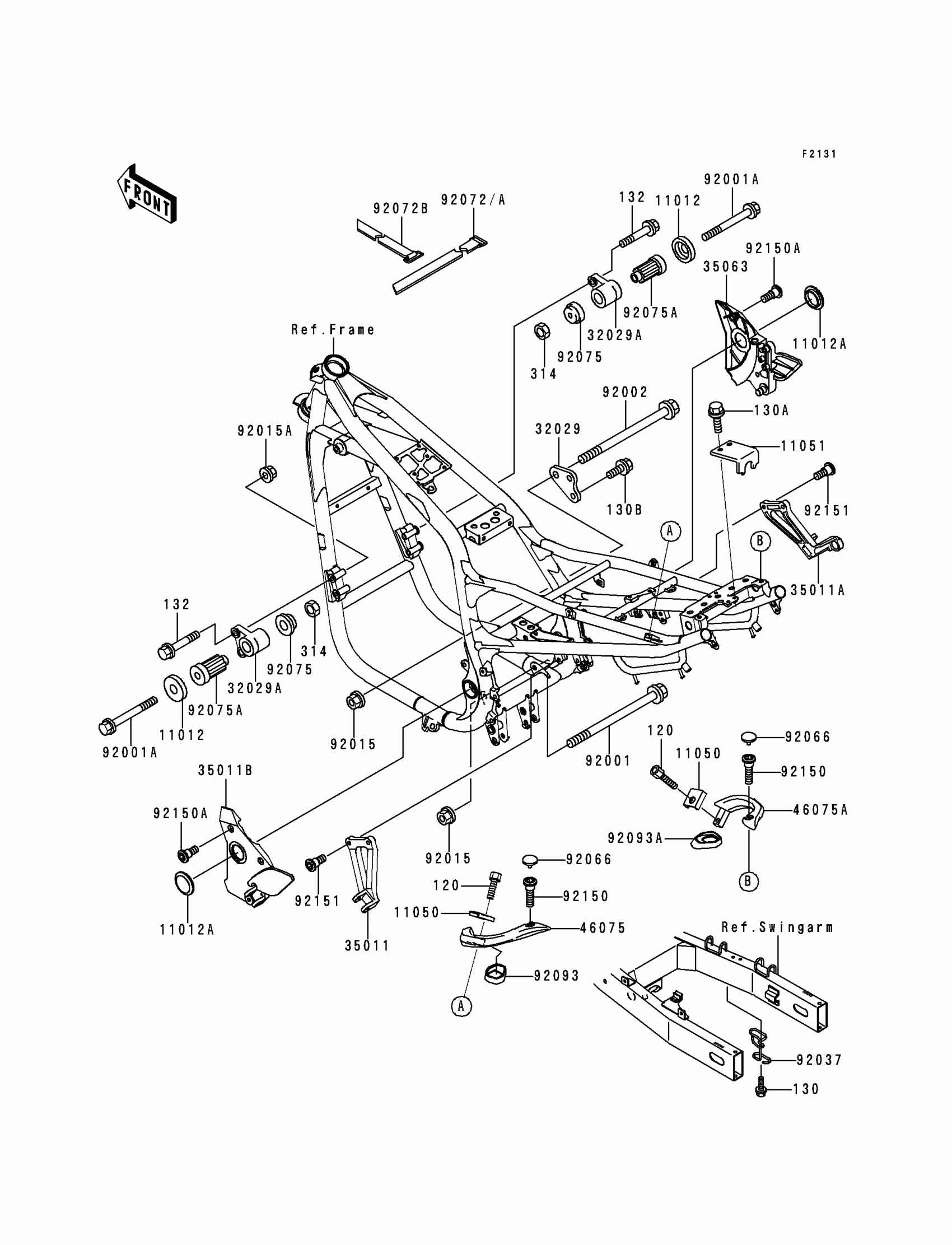

2000 Kawasaki ZR-7 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X30

120S0830

1
Out of stock

130

BOLT-FLANGED

130J0610

1
Out of stock

130A

BOLT-FLANGED,6X12

130J0612

1
Out of stock

130B

BOLT-FLANGED,8X20

130J0820

1
Out of stock

132

BOLT-FLANGED-SMALL,8X60

132J0860

1
Out of stock

314

NUT-HEX-FINE,10MM,BLACK

314C1000

1
Out of stock

11012

CAP,ENGINE BRACKET

11012-1228

1
Out of stock

11012A

CAP

11012-1657

1
Out of stock

11050

BRACKET,TAIL GRIP

11050-1797

1
Out of stock

11051

BRACKET,TAIL LAMP

11051-1455

1
Out of stock

32029

BRACKET-ENGINE,RR,UPP,RH

32029-1745

1
Out of stock

32029A

BRACKET-ENGINE,FR,C.GRAY

32029-1754-EZ

1
Out of stock

35011

STAY,RR,LH

35011-1554

1
Out of stock

35011A

STAY,RR,RH

35011-1555

1
Out of stock

35011B

STAY,FRONT STEP,LH,C.GRAY

35011-1998-EZ

1
Out of stock

35063

STAY,FRONT STEP,RH,C.GRAY

35063-1051-EZ

1
Out of stock

46075

GRIP,RR,LH,F.BLACK

46075-1171-21

1
Out of stock

46075A

GRIP,RR,RH,F.BLACK

46075-1172-21

1
Out of stock

92001

BOLT,FLANGED,10X180

92001-1621

1
Out of stock

92001A

BOLT,FLANGED,10X115,BLACK

92001-1780

1
Out of stock

92002

BOLT,FLANGED,10X190

92002-1548

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92015A

NUT,FLANGED,8MM,BLACK

92015-1183

1
Out of stock

92037

CLAMP,TUBE

92037-1942

1
Out of stock

92066

PLUG

92066-1216

1
Out of stock

92072B

BAND,L=160

92072-1381

1
Out of stock

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

1
Out of stock

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

1
Out of stock

92093

SEAL,REAR GRIP,LH

92093-1476

1
Out of stock

92093A

SEAL,REAR GRIP,RH

92093-1477

1
Out of stock

92150

BOLT,SOCKET,8X40

92150-1735

1
Out of stock

92150A

BOLT,SOCKET,8X20

92150-1839

1
Out of stock

92151

BOLT,SOCKET,8X25

92151-1593

1
Out of stock

92072

BAND,L=470

92072-1331

1
Out of stock

92072A

BAND,L=540

92072-1378

1
Out of stock
