2000 Kawasaki ZR-7 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

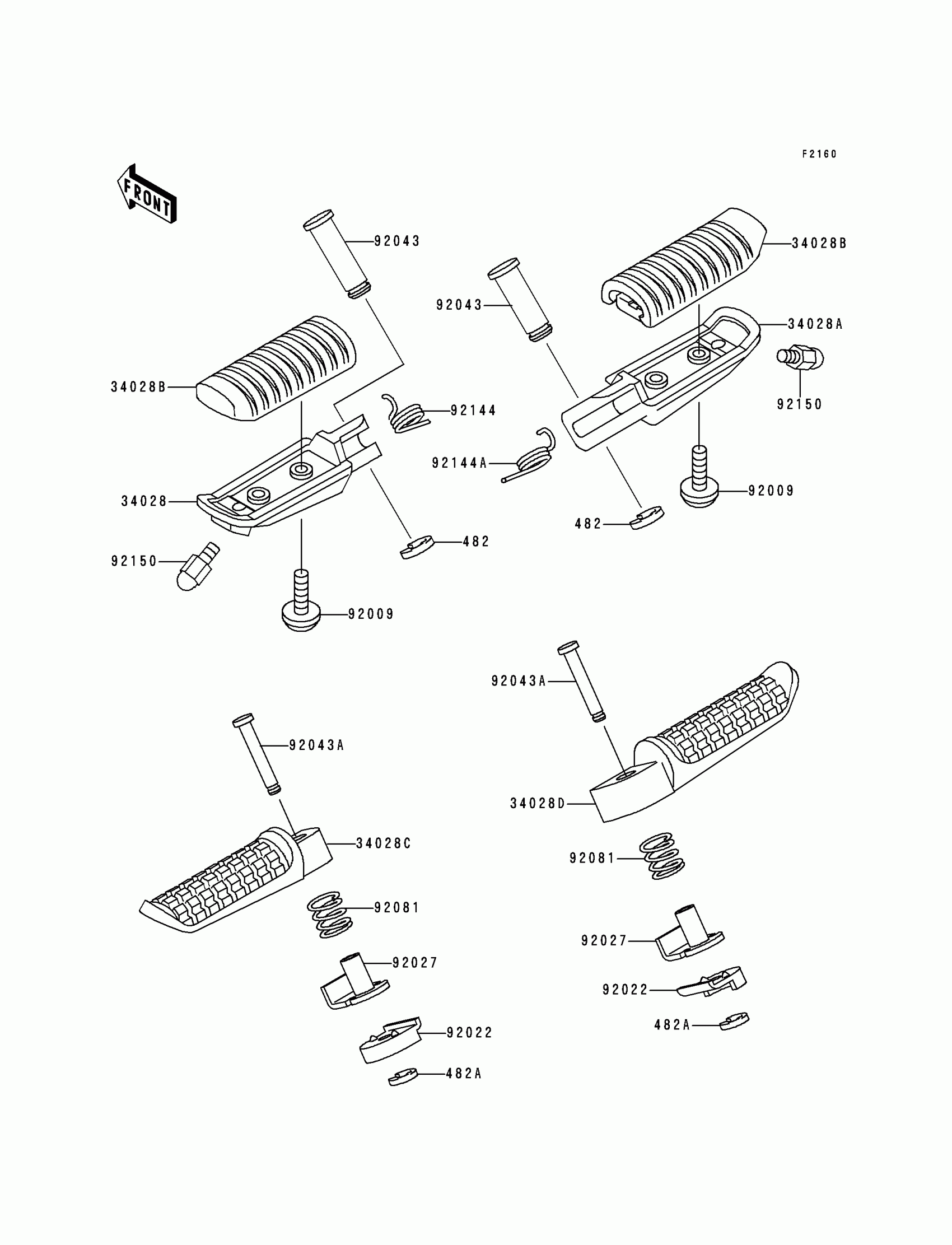

2000 Kawasaki ZR-7 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

482

1

$0.98

In stock

482A

1

$1.20

In stock

34028

STEP,FR,LH

34028-1428

1

$46.40

In stock

34028A

STEP,FR,RH

34028-1429

1

$46.40

In stock

34028B

STEP,RUBBER

34028-1430

1

$21.09

In stock

34028C

STEP,RR,LH

34028-1488

1

$61.01

In stock

34028D

STEP,RR,RH

34028-1489

1

$67.74

In stock

92009

SCREW,5X14

92009-1404

1
Out of stock

92022

WASHER,STEP,RR

92022-1507

1

$4.61

In stock

92027

COLLAR,STEP

92027-1732

1

$10.73

In stock

92043

PIN,12X42.5

92043-1145

1

$9.27

In stock

92043A

PIN,6X38.5

92043-1238

1

$4.15

In stock

92081

SPRING,STEP,RR

92081-1612

1

$3.81

In stock

92144

SPRING,STEP RETURN

92144-1567

1

$5.15

In stock

92144A

SPRING,STEP RETURN

92144-1568

1

$5.15

In stock

92150

BOLT,BANK SENSOR

92150-1114

1

$10.93

In stock
