2000 Kawasaki ZR-7 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

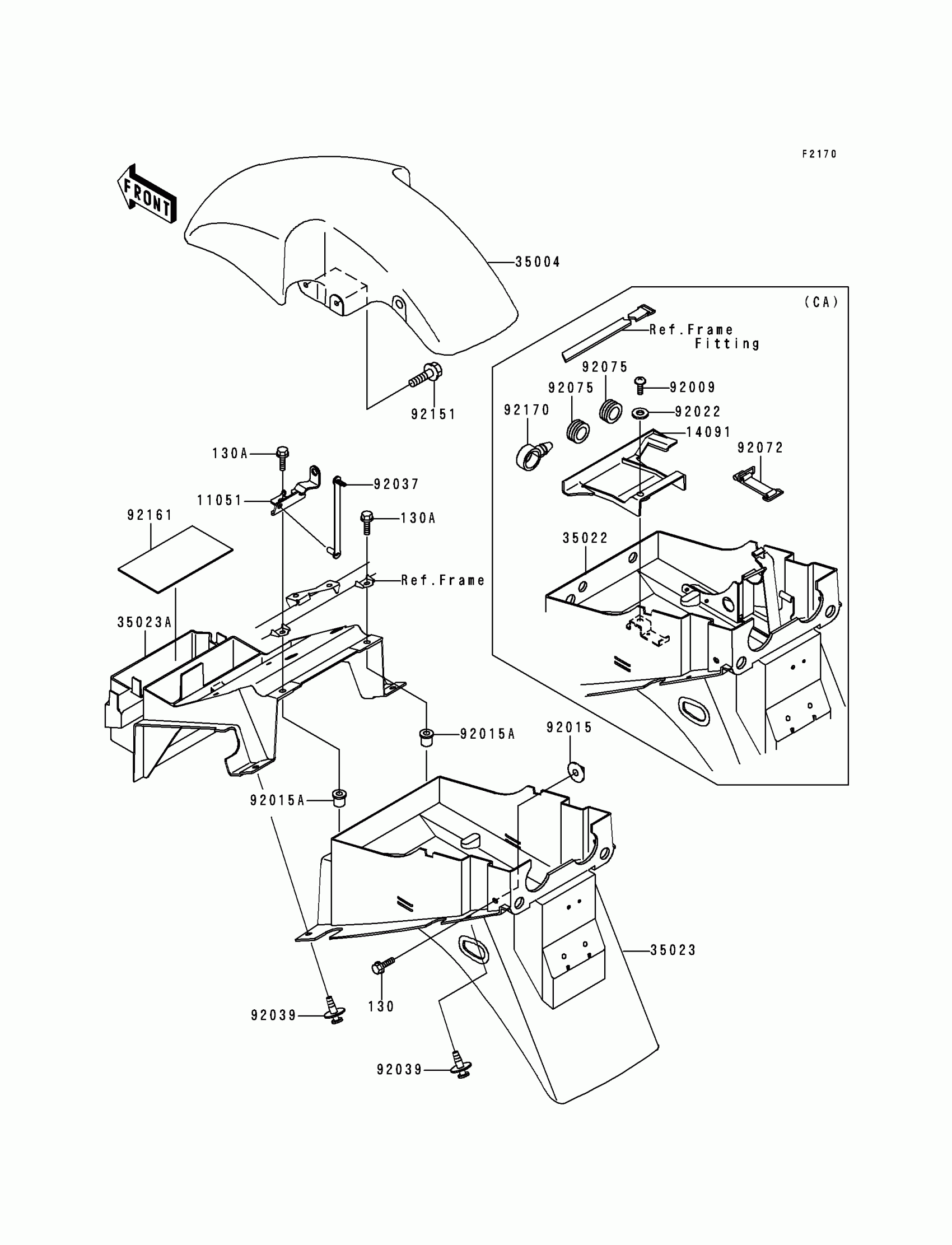

2000 Kawasaki ZR-7 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

130A

BOLT-FLANGED

130J0620

1
Out of stock

11051

BRACKET

11051-1516

1
Out of stock

35004

FENDER-FRONT,C.L.BLUE

35004-1405-E1

1
Out of stock

35023A

FENDER-REAR,FR

35023-1535

1
Out of stock

92015

NUT,6MM

92015-1321

1
Out of stock

92015A

NUT

92015-1700

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92039

RIVET

92039-1227

1
Out of stock

92151

BOLT,6X16

92151-1530

1
Out of stock

92161

DAMPER,BATTERY

92161-1085

1
Out of stock

14091

COVER,CANISTER

14091-1164

1
Out of stock

35022

FENDER-COMP-REAR,RR

35022-1344

1
Out of stock

35023

FENDER-REAR,RR

35023-1525

1
Out of stock

92009

SCREW,6X14

92009-1662

1
Out of stock

92022

WASHER,6.5X16X1

92022-1143

1
Out of stock

92072

BAND

92072-1085

1
Out of stock

92075

DAMPER

92075-1912

1
Out of stock

92170

CLAMP

92170-1067

1
Out of stock
