2000 Kawasaki ZR-7 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

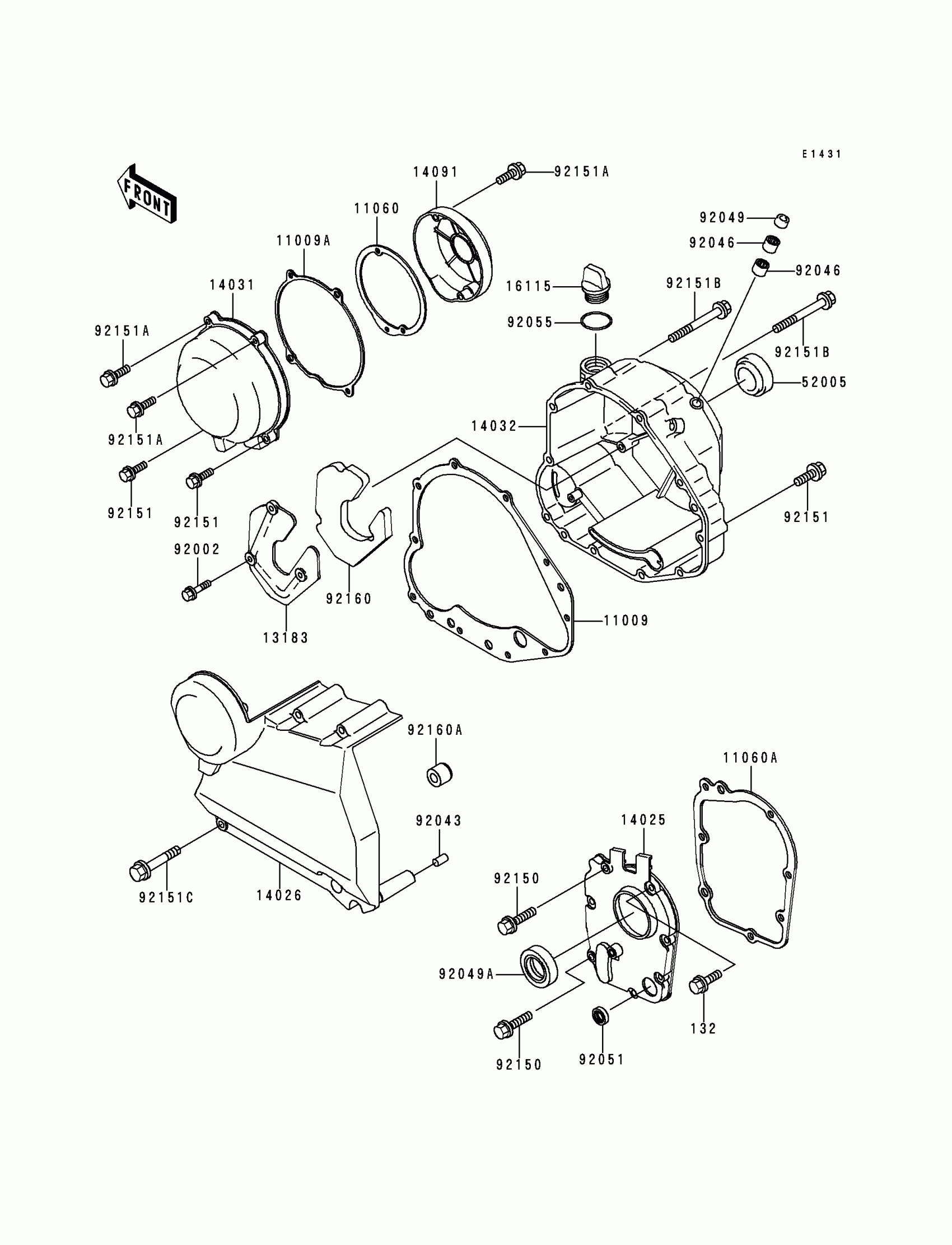

2000 Kawasaki ZR-7 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X20

132Y0620

1
Out of stock

11009

GASKET,CLUTCH COVER

11009-1984

1

$30.41

In stock

11009A

1

$10.02

In stock

11060

1

$6.45

In stock

11060A

1

$12.44

In stock

13183

1

$15.54

In stock

14025

COVER,TRANSMISSION

14025-1605

1
Out of stock

14026

COVER-CHAIN

14026-1264

1

$277.43

In stock

14031

COVER-GENERATOR

14031-1367

1

$212.03

In stock

14032

COVER-CLUTCH

14032-1496

1

$266.39

In stock

14091

COVER,PULSING

14091-1102

1

$131.36

In stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

52005

GAUGE,OIL LEVEL

52005-1017

1
Out of stock

92002

BOLT,6X10

92002-1449

1

$3.68

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92049A

SEAL-OIL,HTC 32 52 10

92049-1506

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92150

BOLT,6X35

92150-1137

1

$5.59

In stock

92151

BOLT,6X40

92151-1131

1

$3.87

In stock

92151A

BOLT,6X30

92151-1134

1

$1.81

In stock

92151B

BOLT,6X80

92151-1200

1

$3.27

In stock

92151C

BOLT,6X70

92151-1482

1

$2.42

In stock

92160

1

$37.97

In stock

92160A

DAMPER

92160-1993

1

$5.54

In stock
