1987 Kawasaki ZL600 Eliminator Swing Arm Diagram

← All diagrams

Find the part on the Swing Arm diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

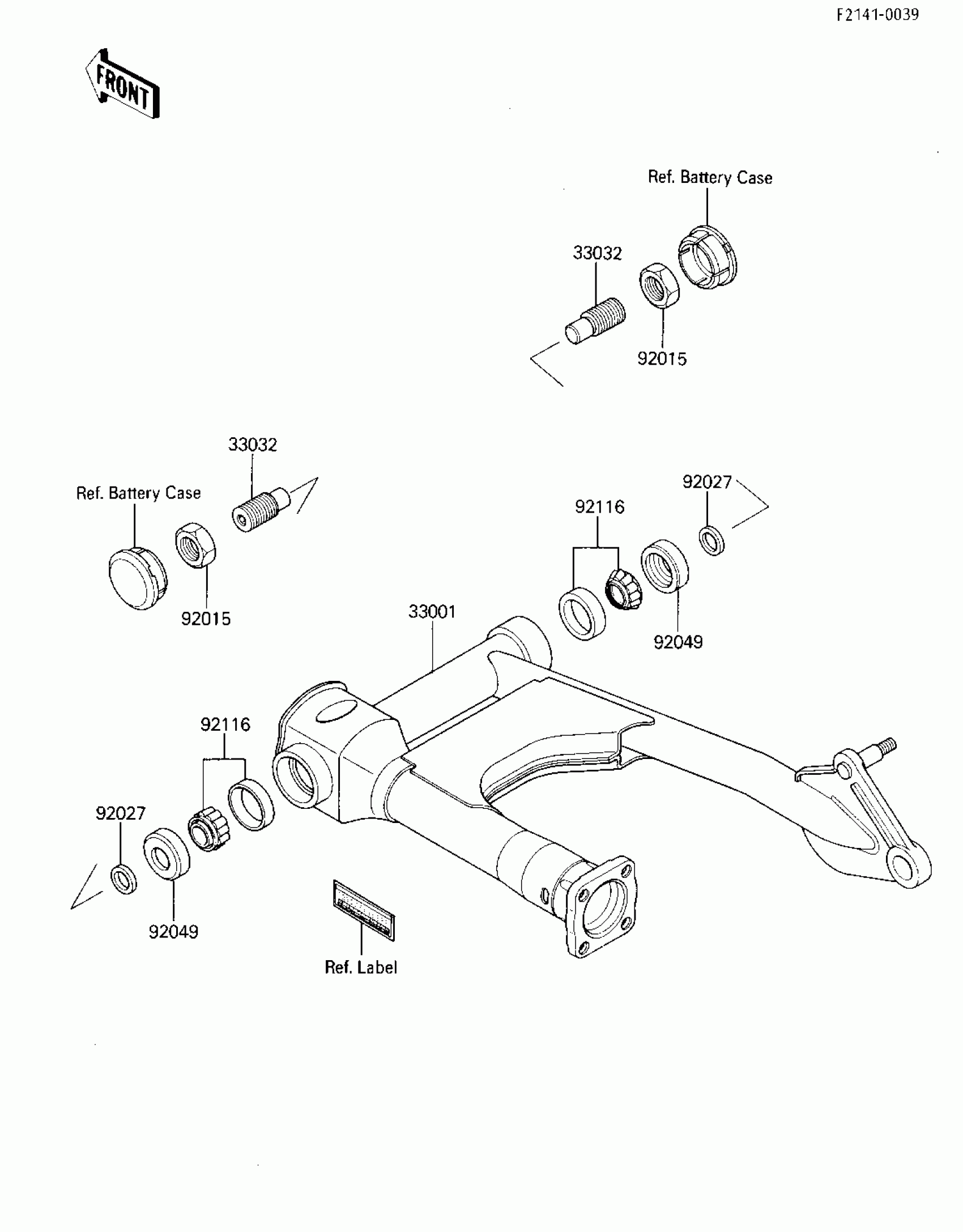

1987 Kawasaki ZL600 Eliminator Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING

33001-1262

1

$453.90

In stock

33032

SHAFT-SWING ARM

33032-1034

1
Out of stock

92015

NUT,22MM

92015-1229

1
Out of stock

92027

COLLAR,17X26X4.5

92027-1394

1

$6.74

In stock

92049

SEAL-OIL,26406

92049-1030

1
Out of stock

92116

1

$34.73

In stock
