1987 Kawasaki ZL600 Eliminator Front Wheel/hub Diagram

← All diagrams

Find the part on the Front Wheel/hub diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

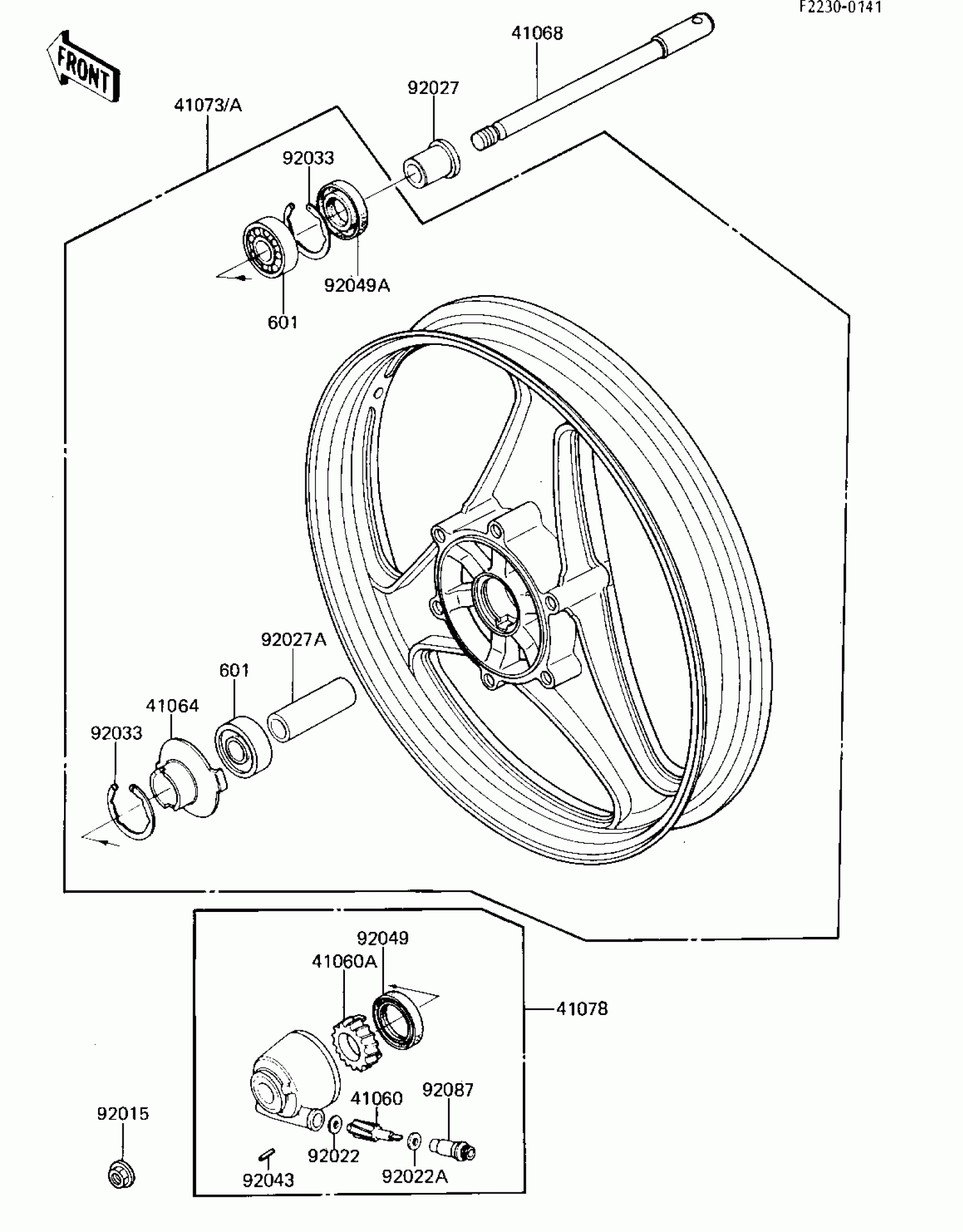

1987 Kawasaki ZL600 Eliminator Front Wheel/hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41060

GEAR-METER SCREW,9T

41060-1016

1
Out of stock

41060A

GEAR-METER SCREW,25T

41060-1041

1
Out of stock

41064

RECEIVER-SPEEDOMETER

41064-1006

1
Out of stock

41068

AXLE,FRONT,L=204M/M

41068-1009

1
Out of stock

41073A

WHEEL-ASSY,FR,SILVER

41073-1336-T7

1
Out of stock

41078

CASE-ASSY-METER GEAR

41078-1027

1
Out of stock

92015

NUT,14MM

92015-1407

1
Out of stock

92022

WASHER,5.1X9X0.4

41063-001

1
Out of stock

92022A

WASHER,5.1X9X0.4

41063-001

1
Out of stock

92027

COLLAR,L=30

92027-1225

1
Out of stock

92027A

COLLAR,15.2X22X55

92027-1505

1
Out of stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92043

PIN,SPRING

41082-001

1
Out of stock

92049

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

92049A

SEAL-OIL,BJN22425

92049-1058

1
Out of stock

92087

BUSHING-METER GEAR

92087-1002

1
Out of stock

601

BEARING-BALL

601B6302U

1
Out of stock
