1987 Kawasaki ZL600 Eliminator Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

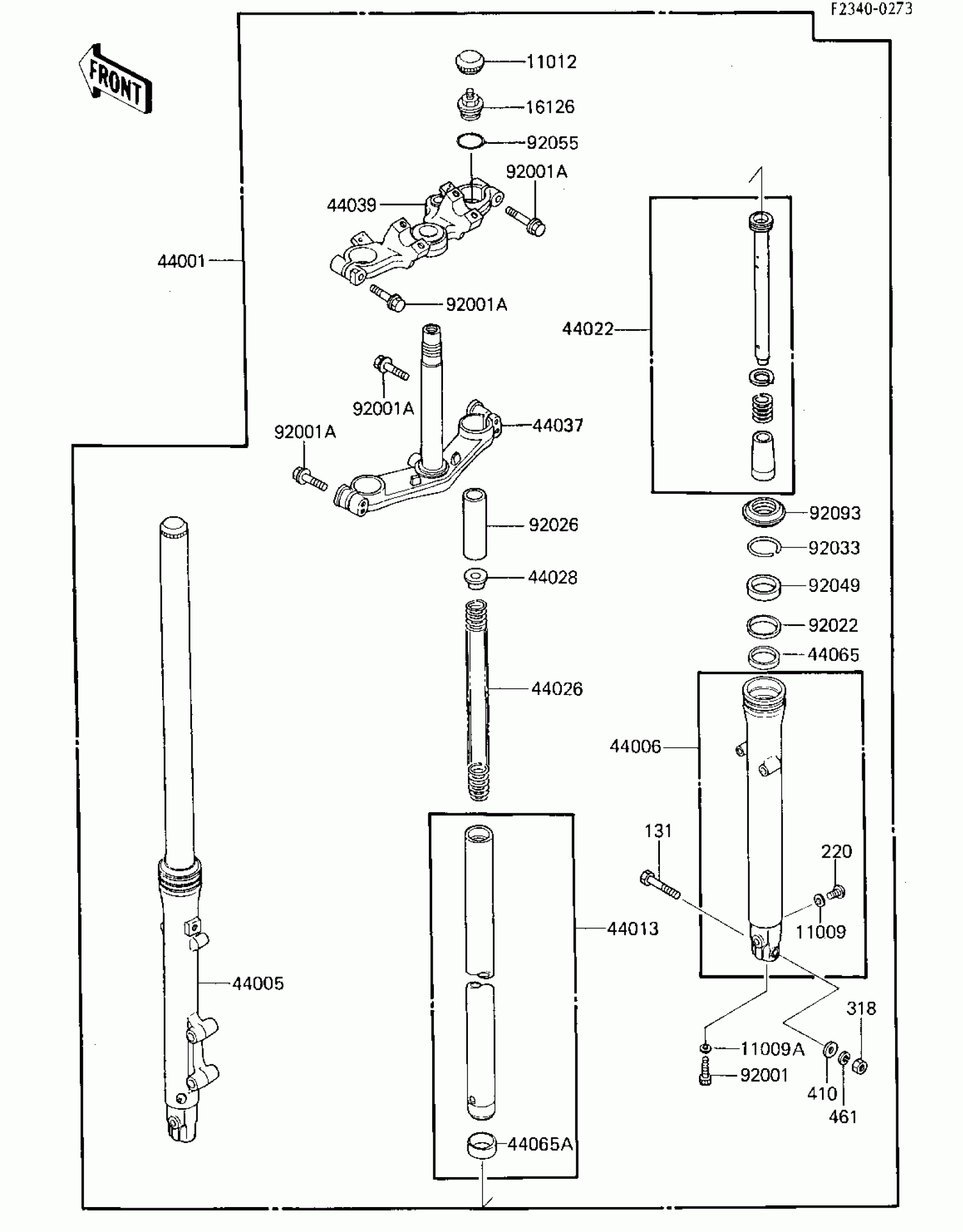

1987 Kawasaki ZL600 Eliminator Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.12

In stock

11009A

GASKET

44045-057

1

$3.86

In stock

11012

CAP,FORK TOP

11012-1548

1
Out of stock

16126

VALVE,AIR

16126-1177

1
Out of stock

44001

FORK-FRONT

44001-1622

1

$1,676.39

In stock

44005

1

$252.50

In stock

44006

1

$400.85

In stock

44013

PIPE-FORK INNER

44013-1251

1

$397.36

In stock

44022

CYLINDER-FORK

44022-1195

1

$82.72

In stock

44026

SPRING-FRONT FORK

44026-1336

1

$62.22

In stock

44028

GUIDE-FORK SPRING

44028-1058

1

$8.92

In stock

44037

HOLDER-FORK UNDER

44037-1205

1

$220.68

In stock

44039

HOLDER-FORK UPPER

44039-1134

1

$247.43

In stock

44065

BUSHING-FRONT FORK

44065-1051

1

$21.66

In stock

44065A

BUSHING-FRONT FORK

44065-1058

1

$36.14

In stock

92001

1

$5.21

In stock

92001A

BOLT,FLANGED,8X40

92001-1188

1
Out of stock

92022

1

$7.56

In stock

92026

SPACER,FORK SPRING

92026-4002

1

$5.14

In stock

92033

RING-SNAP,FORK

92033-1047

1

$5.11

In stock

92049

SEAL-OIL,FORK OUTER T

92049-1372

1
Out of stock

92055

RING-O,FORK TOP

92055-1361

1

$2.58

In stock

92093

1

$24.98

In stock

131

BOLT-FLANGED,8X60

131G0860

1
Out of stock

220

SCREW-PAN-CROS,4X8

220E0408

1
Out of stock

318

NUT-HEX-SMALL,8MM

318G0800

1
Out of stock

410

WASHER PLAIN 8MM

410B0800

1
Out of stock

461

WASHER SPRING 8MM

461F0800

1
Out of stock
