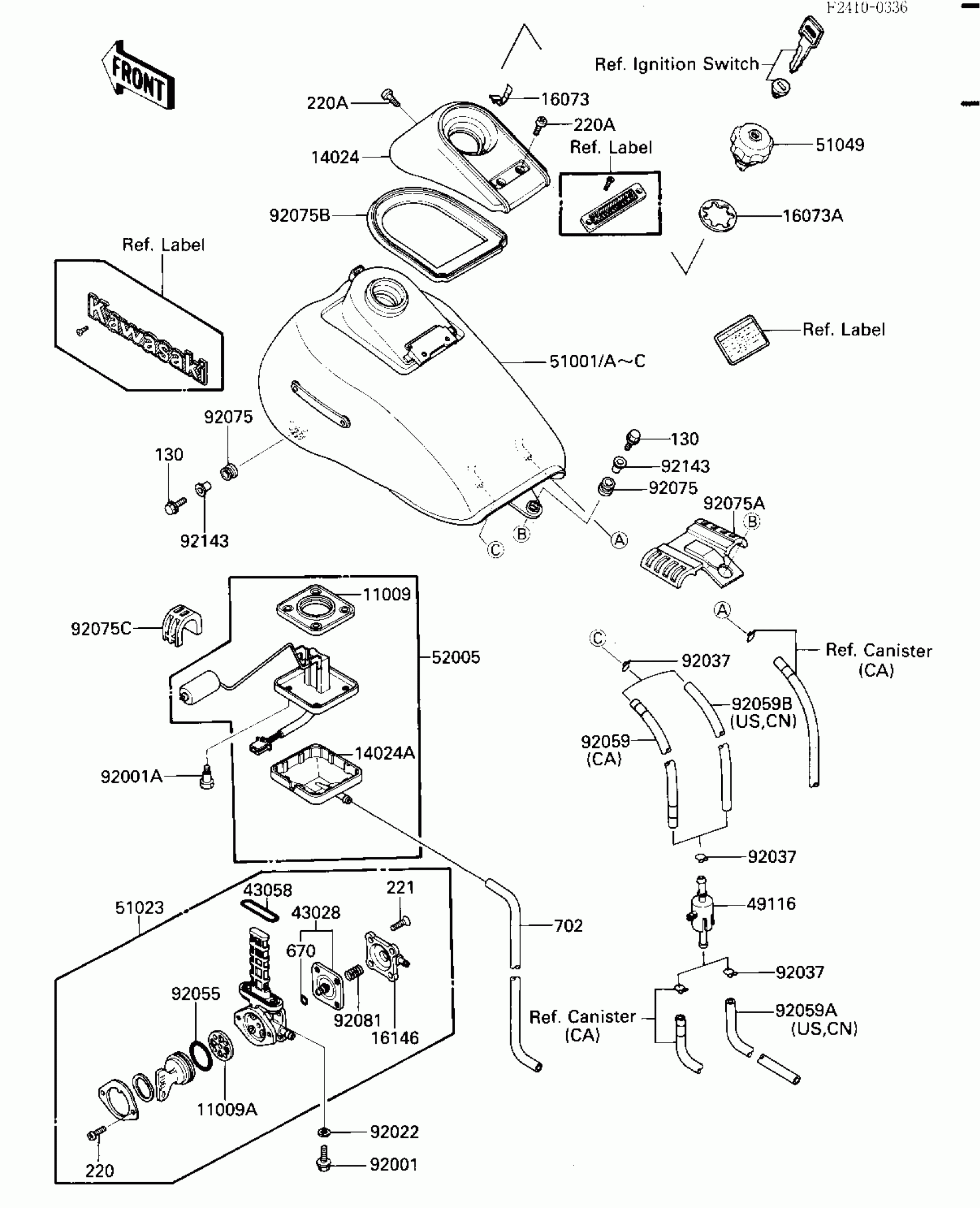

Kawasaki ZL1000 Eliminator FUEL TANK Diagram

#

Description
Price

11009

GASKET,FUEL GAUGE

11009-1656

Unavailable

11009A

GASKET,TAP VALVE

11009-1530

$9.22

14024

COVER,FUEL TANK,EBONY

14024-1377-H8

Unavailable

14024A

COVER,FUEL GAUGE

14025-1536

Unavailable

16073

INSULATOR

16073-1061

Unavailable

16073A

INSULATOR

16073-1063

Unavailable

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1005

$19.78

43028

DIAPHRAGM,TAP

43028-1015

$17.72

43058

RING,TAP FLANGED

51039-010

$5.77

49116

VALVE-ASSY,BREATHER

49116-1063

Unavailable

51001

TANK-COMP-FUEL CW RED

51001-1247-H3

Unavailable

51001A

TANK-COMP-FUEL EBONY

51001-1247-H8

Unavailable

51001B

TANK-COMP-FUEL,C.W.RE

51001-1249-H3

Unavailable

51001C

TANK-COMP-FUEL,EBONY

51001-1249-H8

Unavailable

51023

TAP-ASSY,FUEL

51023-1119

Unavailable

51049

CAP-TANK,FUEL

51049-1074

Unavailable

52005

GAUGE,FUEL

52005-1077

Unavailable

92001

BOLT,6X20

92001-1091

$2.99

92001A

BOLT,FUEL GAUGE

92001-1705

Unavailable

92022

WASHER-PLAIN

92022-183

$2.99

92037

CLAMP,TUBE

92037-010

$2.99

92055

RING-O,TAP LEVER

92055-1027

$3.98

92059

TUBE,5X8X980,BLUE

92059-1420

Unavailable

92059A

TUBE

92059-1625

Unavailable

92059B

TUBE,5X8X320

92059-1714

Unavailable

92075

DAMPER

92075-1057

$3.74

92075A

DAMPER,FUEL TANK,RR

92075-1846

Unavailable

92075B

DAMPER,FUEL TANK COVE

92075-1847

Unavailable

92075C

DAMPER,FUEL TANK

92075-1862

Unavailable

92081

SPRING,TAP DIAPHRAGM

92081-1171

$3.32

92143

COLLAR,L=15.6

92143-1041

$7.93

130

BOLT-FLANGED,6X25

130J0625

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW-PAN-CROS,5X10

220C0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

670

O RING,4MM

670B1504

$3.14

702

TUBE-RUBBER

702A07680

$10.11
