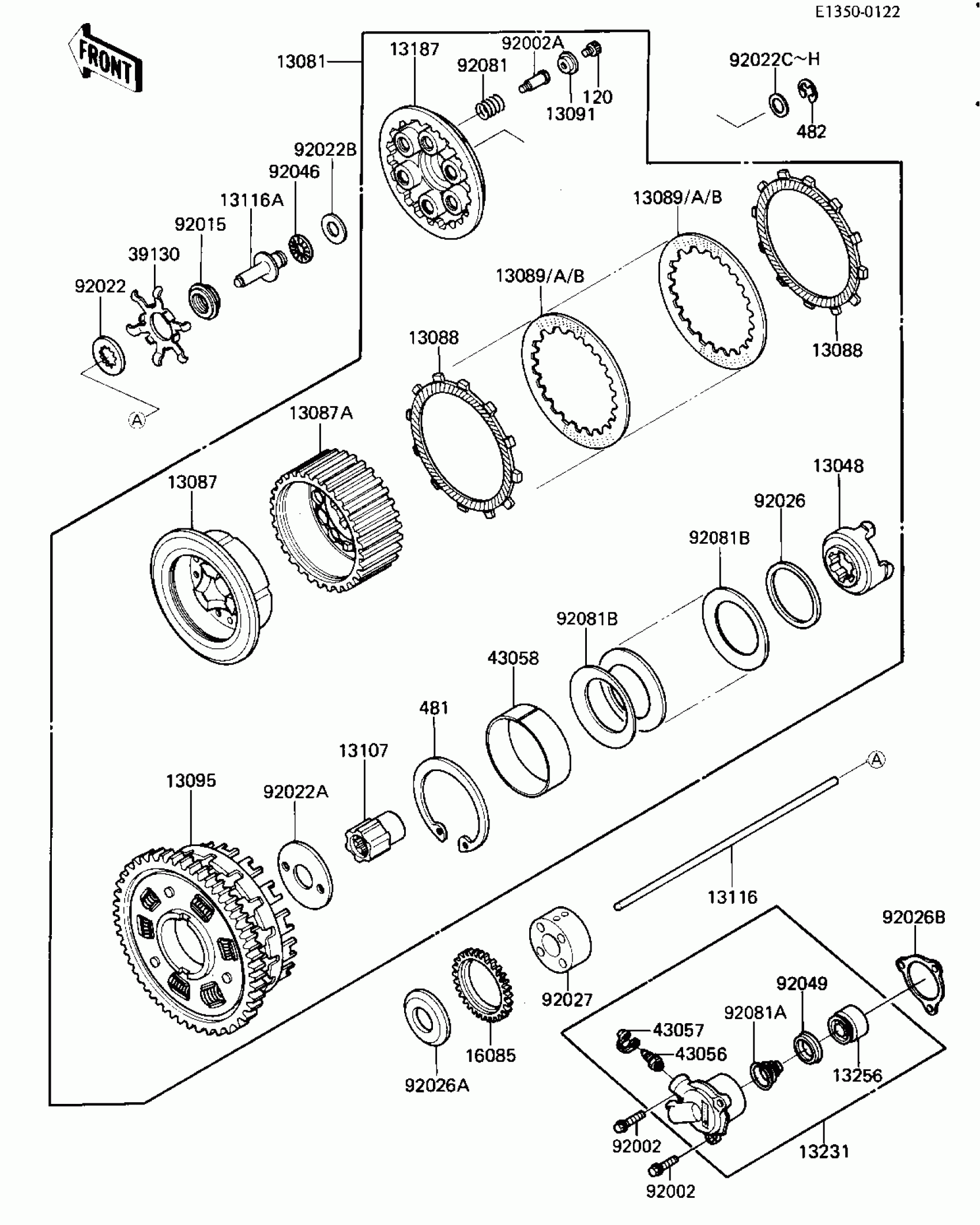

Find the part on the Clutch diagram for your 1987 Kawasaki ZL1000 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki ZL1000 Eliminator Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13048

CAM-DAMPER

13048-1007

1
Out of stock

13081

CLUTCH-ASSY

13081-1236

1
Out of stock

13087

HUB-CLUTCH

13087-1071

1
Out of stock

13087A

HUB-CLUTCH

13087-1072

1
Out of stock

13088

PLATE-FRICTION

13088-1051

1
Out of stock

13089

PLATE-CLUTCH,T=2.3

13089-1004

—
Out of stock

13089A

PLATE-CLUTCH,T=2.6

13089-1067

—
Out of stock

13089B

PLATE-CLUTCH,T=2.0

13089-1068

—
Out of stock

13091

HOLDER,CLUTCH SPRING

13091-1041

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1151

1
Out of stock

13107

SHAFT,CLUTCH

13107-1161

1
Out of stock

13116

ROD-PUSH,CLUTCH

13116-1118

1
Out of stock

13116A

ROD-PUSH,CLUTCH

13116-1119

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1055

1
Out of stock

13231

RELEASE-ASSY-CLUTCH

13231-1067

1
Out of stock

13256

PISTON

13256-1052

1
Out of stock

16085

GEAR,OIL PUMP

16085-1108

1
Out of stock

39130

SPRING-LEAF

39130-1054

1
Out of stock

43056

BREATHER

43056-1052

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43058

RING

43058-1059

1
Out of stock

92002

BOLT

92002-1613

1
Out of stock

92002A

BOLT,CLUTCH

92002-1639

1
Out of stock

92015

NUT

92015-1538

1
Out of stock

92022

WASHER,TOOTHED,25X40X5

92022-1114

1
Out of stock

92022A

WASHER,CLUTCH THRUST

92022-1221

1
Out of stock

92022B

WASHER,15.1X29X1.0

92022-1463

1
Out of stock

92022C

WASHER,15.1X23X1.0

92022-1750

—
Out of stock

92022D

WASHER,15.1X23X0.8

92022-1751

—
Out of stock

92022E

WASHER,15.1X23X1.2

92022-1752

—
Out of stock

92022F

WASHER,15.1X23X1.4

92022-1753

—
Out of stock

92022G

WASHER,15.1X23X1.6

92022-1754

—
Out of stock

92022H

WASHER,15.1X23X1.8

92022-1755

—
Out of stock

92026

SPACER,59X70X3.5

92026-1043

1
Out of stock

92026A

SPACER

92026-5001

1
Out of stock

92026B

SPACER,CLUTCH RELEASE

92026-1263

1
Out of stock

92027

COLLAR

92027-1710

1
Out of stock

92046

BEARING-NEEDLE,AXK1102

92046-1052

1
Out of stock

92049

SEAL-OIL,PISTON

92049-1165

1
Out of stock

92081

SPRING,CLUTCH

92081-1114

1
Out of stock

92081A

SPRING,CLUTCH RELEASE

92081-1644

1
Out of stock

92081B

SPRING

92081-1906

1
Out of stock

120

BOLT-SOCKET,6X16

120S0616

1
Out of stock

481

CIRCLIP

481J9500

1
Out of stock

482

CIRCLIP-TYPE-E,12MM

482J0200

1
Out of stock
