1987 Kawasaki ZL1000 Eliminator Canister Diagram

← All diagrams

Find the part on the Canister diagram for your 1987 Kawasaki ZL1000 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

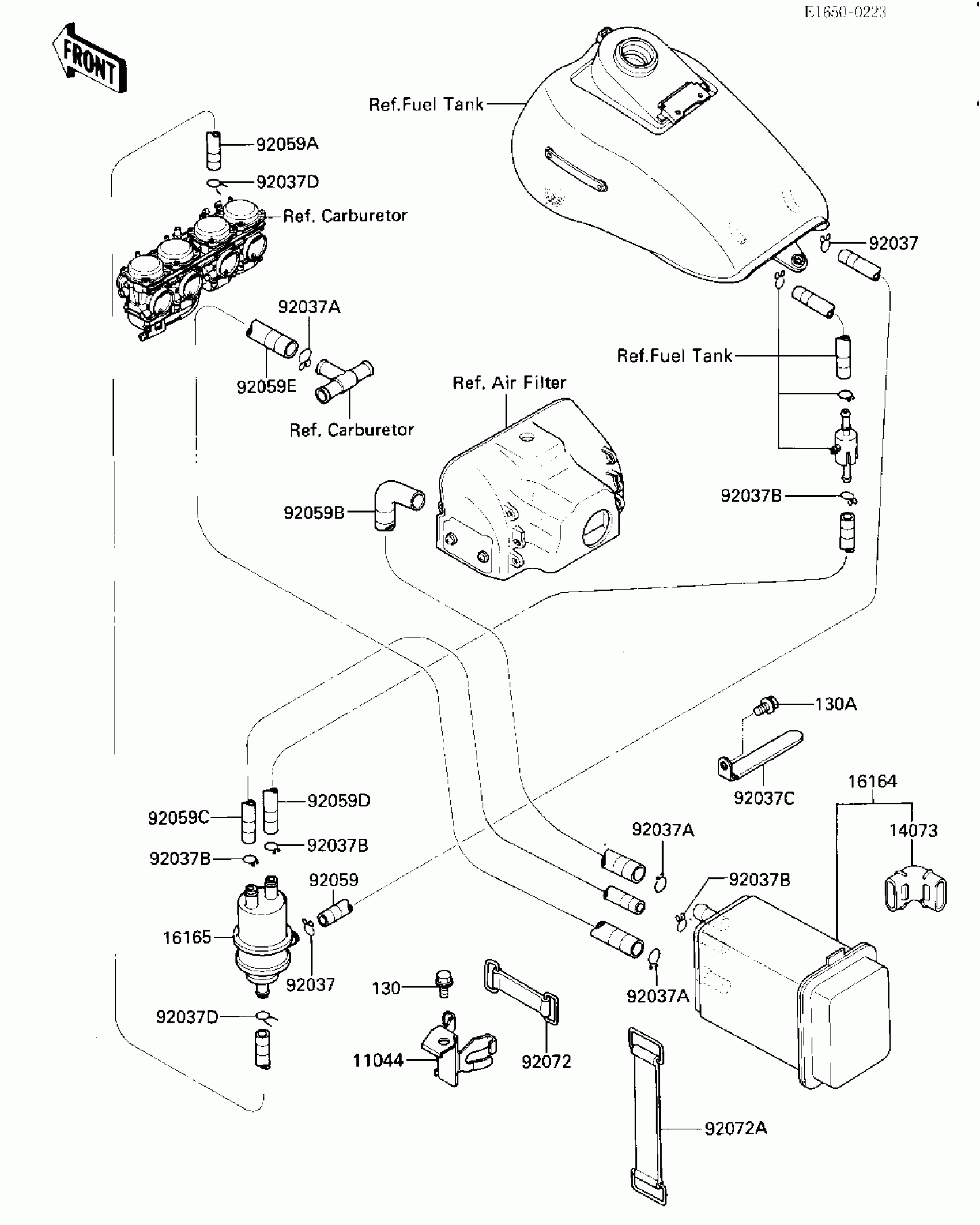

1987 Kawasaki ZL1000 Eliminator Canister Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

BRACKET,SEPARATOR

11044-1333

1
Out of stock

14073

DUCT,CANISTER

14073-1178

1

$21.14

In stock

16164

CANISTER

16164-1066

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

92037

CLAMP,TUBE

92037-010

1
Out of stock

92037A

CLAMP-HOSE

92037-1104

1
Out of stock

92037B

CLAMP,TUBE

92037-147

1
Out of stock

92037C

CLAMP

92037-1679

1
Out of stock

92037D

CLAMP

92037-1712

1
Out of stock

92059

TUBE,5X8X550,RED

92059-1419

1
Out of stock

92059A

TUBE,4X9X640.WHITE

92059-1574

1
Out of stock

92059B

TUBE,7X12X553,GREEN

92059-1575

1
Out of stock

92059C

TUBE,5X10X380,BLUE

92059-1604

1
Out of stock

92059D

TUBE,5X10X260,BLUE

92059-1728

1
Out of stock

92059E

TUBE

92059-1758

1
Out of stock

92072

BAND,L=50

92072-066

1
Out of stock

92072A

BAND,BATTERY,L=105

92072-1173

1
Out of stock

130

BOLT-FLANGED,6X10

130C0610

1
Out of stock

130A

BOLT-FLANGED

130E0608

1
Out of stock
