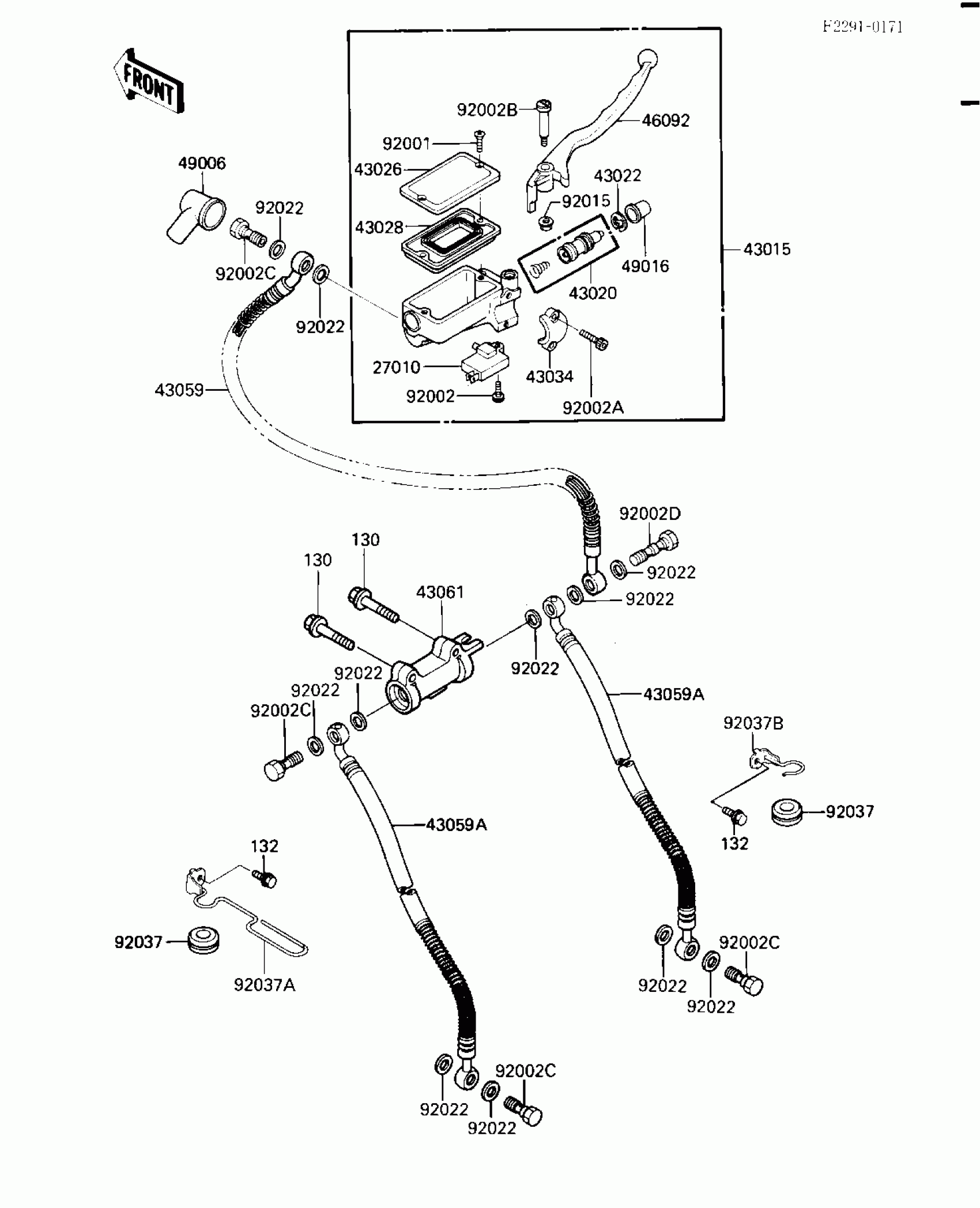

Kawasaki ZL1000 Eliminator FRONT MASTER CYLINDER Diagram

Description

Price

27010

SWITCH,BRAKE

27010-1170

$32.62

43015

CYLINDER-ASSY-MASTER,

43015-1293

Unavailable

43020

PISTON-COMP-BRAKE,FR

43020-1054

$58.51

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE,FR

43026-1052

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$18.50

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$36.55

43059

HOSE-BRAKE,FR

43059-1354

$92.86

43059A

HOSE-BRAKE,FR

43059-1355

Unavailable

43061

JOINT-BRAKE

43061-1002

$73.52

46092

LEVER-GRIP,FRONT BRAK

46092-1121

$47.96

49006

BOOT,DUST

49006-1041

$8.74

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92001

SCREW,5MM,BLACK

92001-1727

$3.14

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92002A

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.54

92002B

BOLT,LEVER SET

92002-1561

$11.22

92002C

BOLT

92002-1593

$4.15

92002D

BOLT

92002-1864

$4.76

92015

NUT,FLANGED,6MM

92015-1528

$4.18

92022

WASHER,10.5X15X1.5

43067-001

$1.57

92037

GROMMET,HOSE CLAMP

43064-006

$3.29

92037A

CLAMP,BRAKE HOSE,LH

92037-1702

$24.10

92037B

CLAMP,BRAKE HOSE,RH

92037-1703

$24.10

130

BOLT-FLANGED,6X40

130G0640

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable
