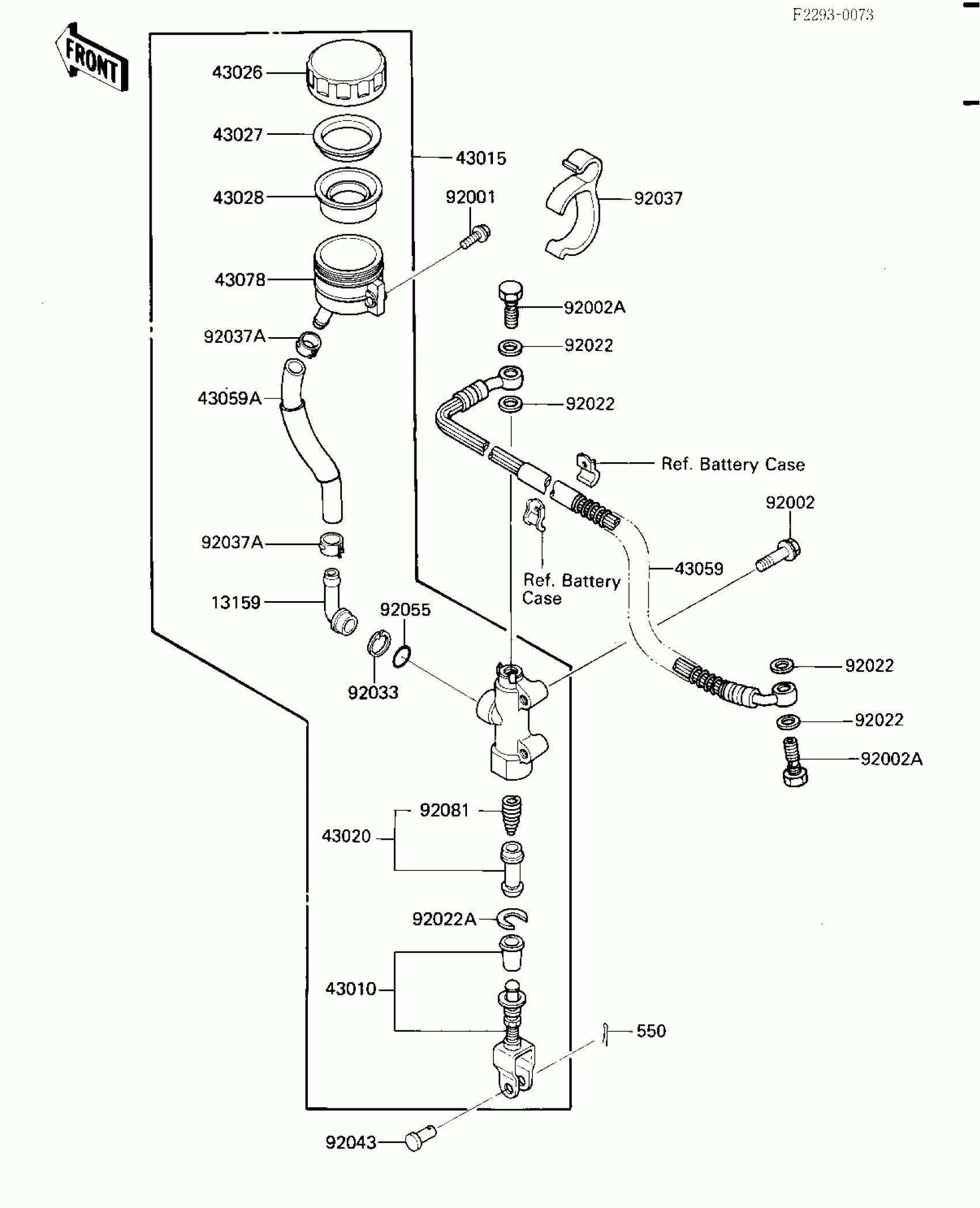

Kawasaki ZL1000 Eliminator REAR MASTER CYLINDER Diagram

Description

Price

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

43010

ROD-ASSY-BRAKE

43010-1055

$70.35

43015

CYLINDER-ASSY-MASTER,

43015-1333

$242.47

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43059

HOSE-BRAKE

43059-1325

Unavailable

43059A

HOSE-BRAKE,RR MASTER

43059-1358

$20.81

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.80

92001

BOLT,W/P,6X16

92001-1860

$3.85

92002

BOLT,FLANGED,8X30

92002-1539

Unavailable

92002A

BOLT

92002-1593

$4.15

92022

WASHER,10.5X15X1.5

43067-001

$1.57

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP

92037-1535

Unavailable

92037A

CLAMP,BRAKE HOSE

92037-1547

$11.81

92043

PIN,8X16

92043-1013

$7.54

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

550

PIN COTTER 2.0X15

550D2015

Unavailable
