1987 Kawasaki ZL1000 Eliminator Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1987 Kawasaki ZL1000 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

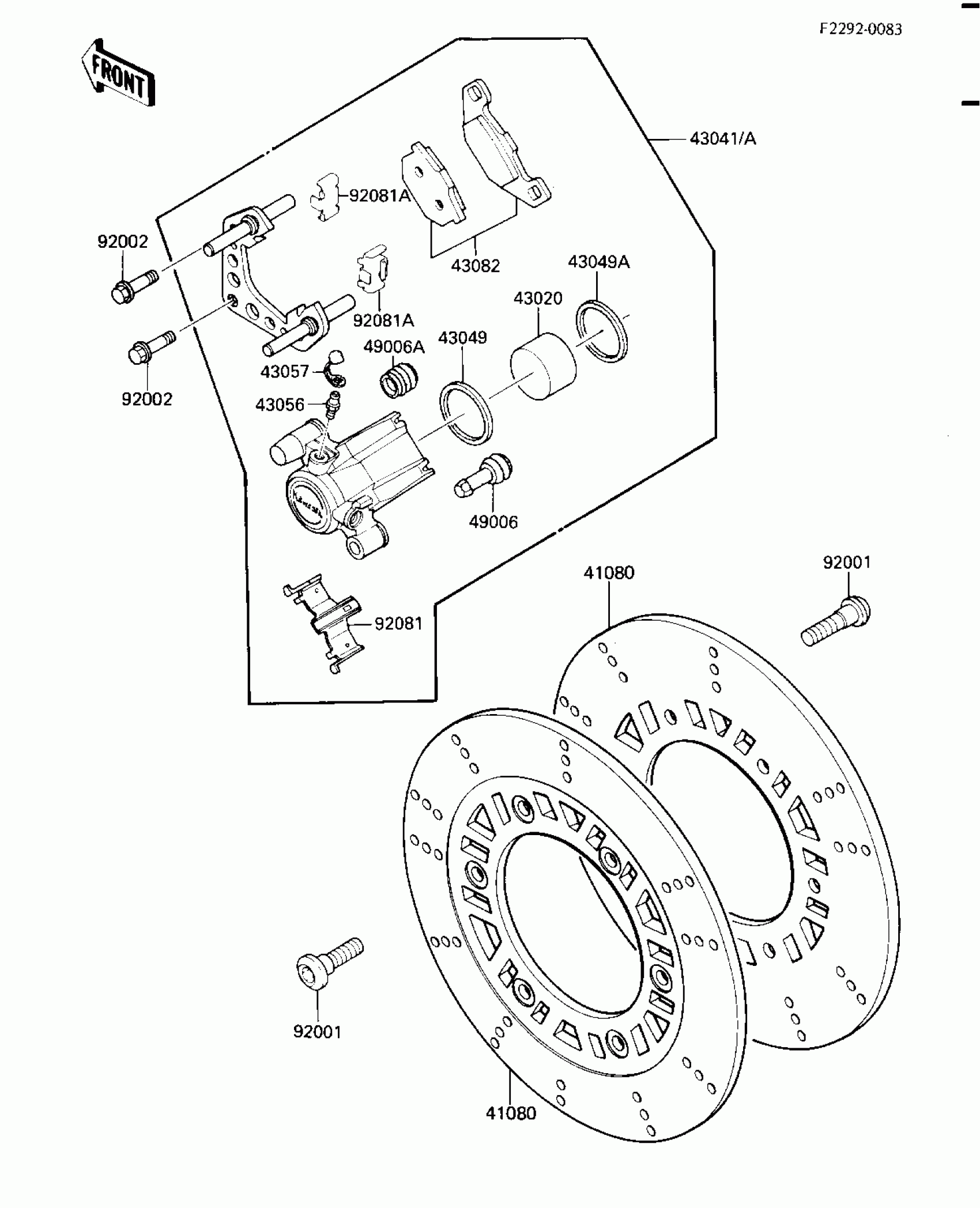

1987 Kawasaki ZL1000 Eliminator Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR,SILVER

41080-1112

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1066

1
Out of stock

43041

CALIPER-ASSY,FR,LH

43041-1194

1
Out of stock

43041A

CALIPER-ASSY,FR,RH

43041-1471

1
Out of stock

43049

PACKING,PISTON SEAL

43049-002

1
Out of stock

43049A

PACKING,PISTON

43049-1028

1
Out of stock

43056

BREATHER

43056-003

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-1061

1
Out of stock

49006

BOOT,CALIPER

49006-1094

1
Out of stock

49006A

BOOT,CALIPER

49006-1095

1
Out of stock

92001

BOLT,DISC PLATE,8X30

92001-1951

1
Out of stock

92002

BOLT,FLANGED,10X41

92002-1468

1
Out of stock

92081

SPRING,PAD

92081-1525

1
Out of stock

92081A

SPRING,PAD STOPPER

92081-1661

1
Out of stock
