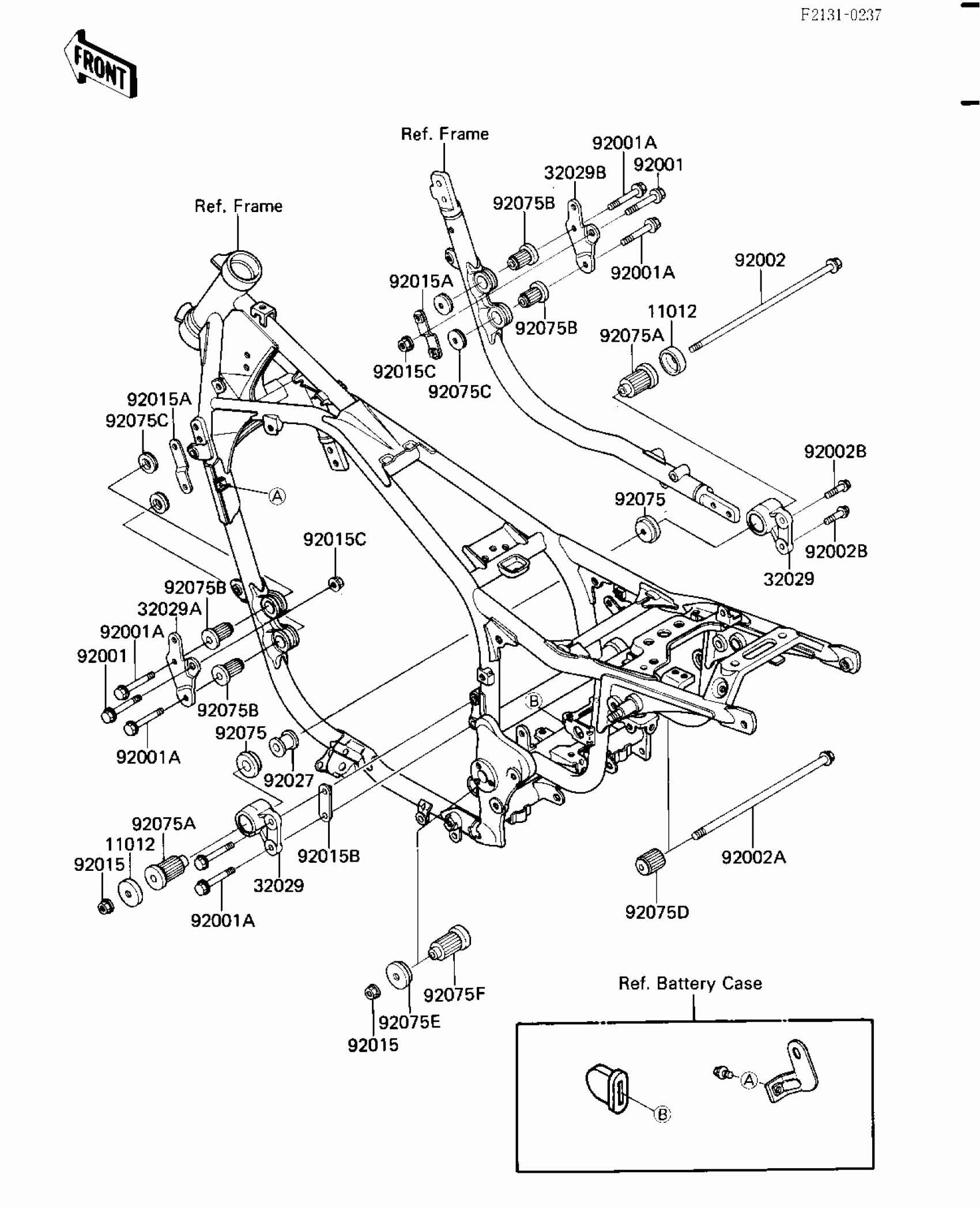

Kawasaki ZL1000 Eliminator FRAME FITTINGS Diagram

Description

Price

11012

CAP,ENGINE BRACKET

11012-1228

$7.49

32029

BRACKET-ENGINE,RR,UPP

32029-1406

$37.02

32029A

BRACKET-ENGINE,FR,LH

32029-1427

$16.03

32029B

BRACKET-ENGINE,FR,RH

32029-1428

Unavailable

92001

BOLT,BLACK,10X47

92001-1522

$5.42

92001A

BOLT,FLANGED,8X55,BLACK

92001-1641

$7.14

92002

BOLT

92002-1360

$18.03

92002A

BOLT,FLANGED,10X280

92002-1530

$22.47

92002B

BOLT,FLANGED,8X30

92002-1532

$3.19

92015

NUT,FLANGED,10MM

92015-1180

$3.29

92015A

NUT

92015-1517

Unavailable

92015B

NUT

92015-1518

$8.51

92015C

NUT,LOCK,10MM

92019-021

$4.59

92027

COLLAR,L=24.8

92027-1990

$13.69

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$16.49

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

$31.41

92075B

DAMPER,ENGINE MOUNT

92075-1730

Unavailable

92075C

DAMPER,ENGINE MOUNT

92075-1731

Unavailable

92075D

DAMPER,ENGINE MOUNT

92075-1733

$35.80

92075E

DAMPER,ENGINE MOUNT

92075-1738

$18.93

92075F

DAMPER,ENGINE MOUNT,MAIN

92075-1739

$28.62
