Partiron

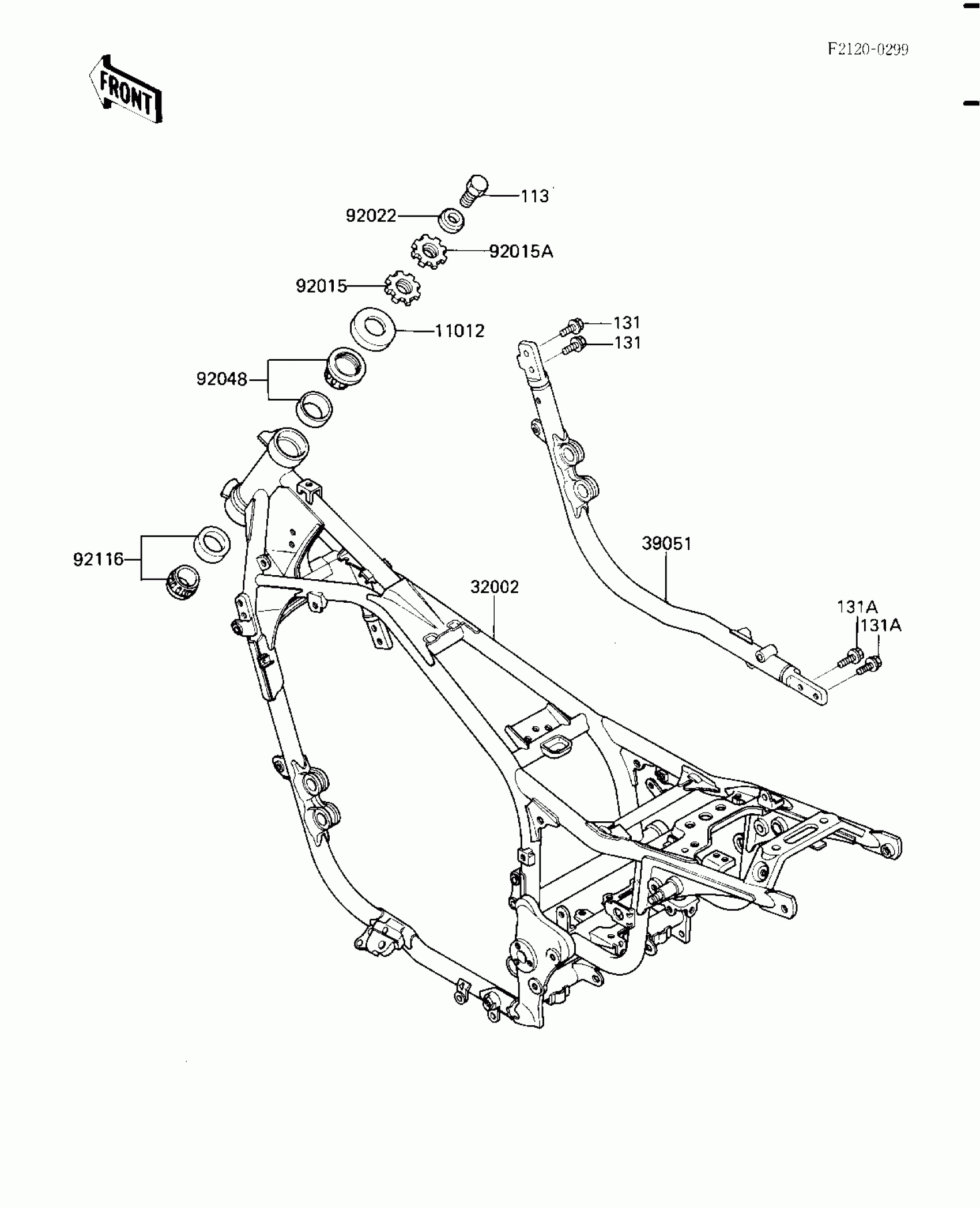

Kawasaki ZL1000 Eliminator FRAME Diagram

#

Description
Price

11012

CAP,STEERING STEM

46098-017

$5.37

32002

FRAME-COMP

32002-1902

$1,521.35

39051

FRAME-COMP-SIDE

39051-1051

$251.07

92015

NUT,25MM,T=10

92015-1377

$25.61

92015A

NUT,25MM,T=6

92015-1378

$16.96

92022

WASHER

92022-1229

$11.03

92048

RACE,ROLLER,32005JR RS

92047-017

$38.84

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$32.44

113

BOLT-SMALL-FINE,14X25

113G1425

Unavailable

131

BOLT-FLANGED

131S0820

Unavailable

131A

BOLT-FLANGED

131S0825

Unavailable
