1987 Kawasaki ZL1000 Eliminator Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1987 Kawasaki ZL1000 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

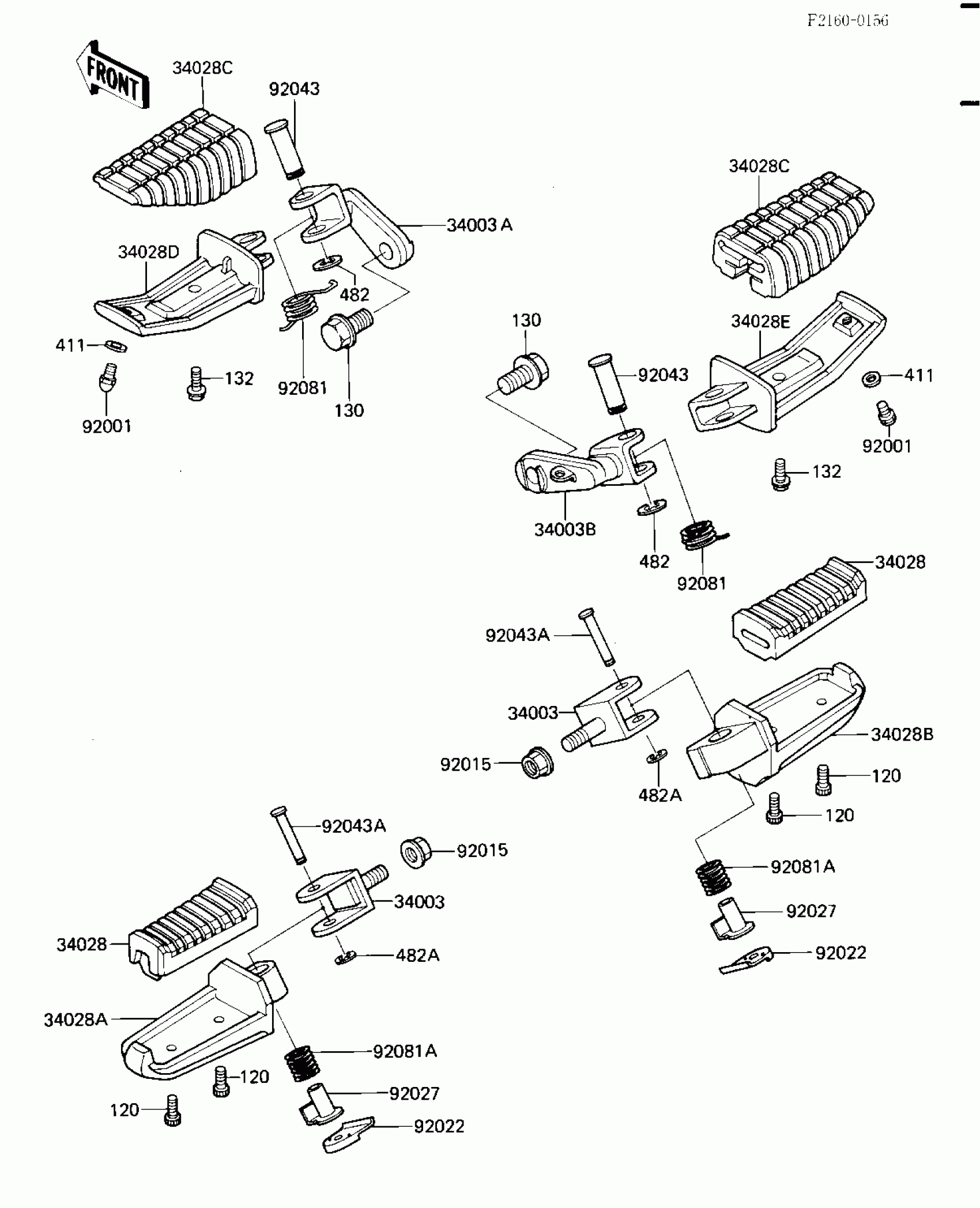

1987 Kawasaki ZL1000 Eliminator Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,RR

34003-1240

1
Out of stock

34003A

HOLDER-STEP,FR,LH

34003-1241

1
Out of stock

34003B

HOLDER-STEP,FR,RH

34003-1242

1
Out of stock

34028

STEP,RR,RUBBER

34028-1060

1

$21.98

In stock

34028A

STEP,RR,LH

34028-1158

1
Out of stock

34028B

STEP,RR,RH

34028-1159

1
Out of stock

34028C

STEP,FR,RUBBER

34028-1164

1

$23.37

In stock

34028D

STEP,FR,LH

34028-1162

1
Out of stock

34028E

STEP,FR,RH

34028-1163

1
Out of stock

92001

BOLT,BANK SENSOR

92001-1905

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1428

1
Out of stock

92022

WASHER,STEP,RR

92022-1507

1
Out of stock

92027

COLLAR,STEP

92027-1732

1
Out of stock

92043

PIN,12X37

92043-1144

1
Out of stock

92043A

PIN,6X35.5

92043-1294

1
Out of stock

92081

SPRING,STEP RETURN

92144-1568

1
Out of stock

92081A

SPRING,STEP,RR

92081-1612

1
Out of stock

120

BOLT-SOCKET,5X14

120Z0514

1
Out of stock

130

BOLT-FLANGED

130C1220

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

482

CIRCLIP-TYPE-E,10MM

482L0100

1
Out of stock

482A

CIRCLIP-TYPE-E,5MM

482L5000

1
Out of stock
