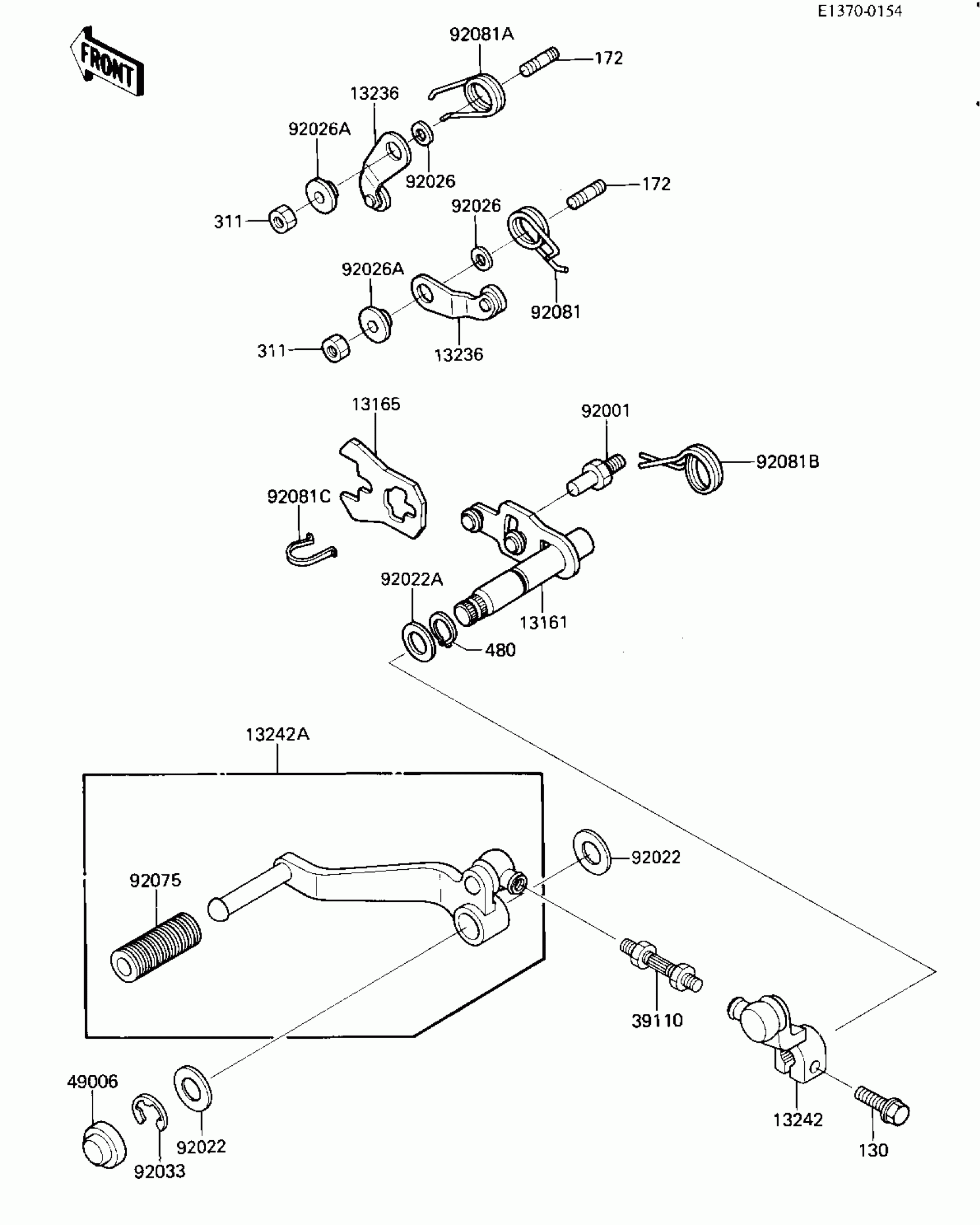

Kawasaki ZL1000 Eliminator GEAR CHANGE MECHANISM Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHA

13161-1106

Unavailable

13165

PAWL

13165-1120

$13.39

13236

LEVER-COMP,GEAR POSITION

13236-1103

$18.53

13242

LEVER-ASSY-CHANGE

13242-1195

Unavailable

13242A

LEVER-ASSY-CHANGE,PED

13242-1271

Unavailable

39110

ROD-ASSY-TIE

39110-1054

$11.76

49006

BOOT,CHANGE LEVER

49006-1061

Unavailable

92001

BOLT,RETURN SPRING

92001-1401

$4.17

92022

WASHER,12.5X22X1.2

92022-1593

$4.00

92022A

WASHER,13.3X18X1

92022-1772

$3.98

92026

SPACER,6.3X12X1.0

92026-094

$8.92

92026A

SPACER

92026-1217

$4.18

92033

RING-SNAP,TYPE-E,10MM

92033-1178

$3.81

92075

DAMPER,CHANGE PEDAL

13157-004

Unavailable

92081

SPRING

92081-1645

$13.03

92081A

SPRING

92081-1742

$10.54

92081B

SPRING,CHANGE PEDAL RETURN

92081-1750

$10.93

92081C

SPRING,CHANGE LEVER

92081-1829

$6.70

130

BOLT-FLANGED,6X20

130S0620

Unavailable

172

BOLT-STUD,6X14

172G0614

Unavailable

311

NUT-HEX,6MM

311G0600

Unavailable

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99
