1993 Kawasaki Zephyr Step Diagram

← All diagrams

Find the part on the Step diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

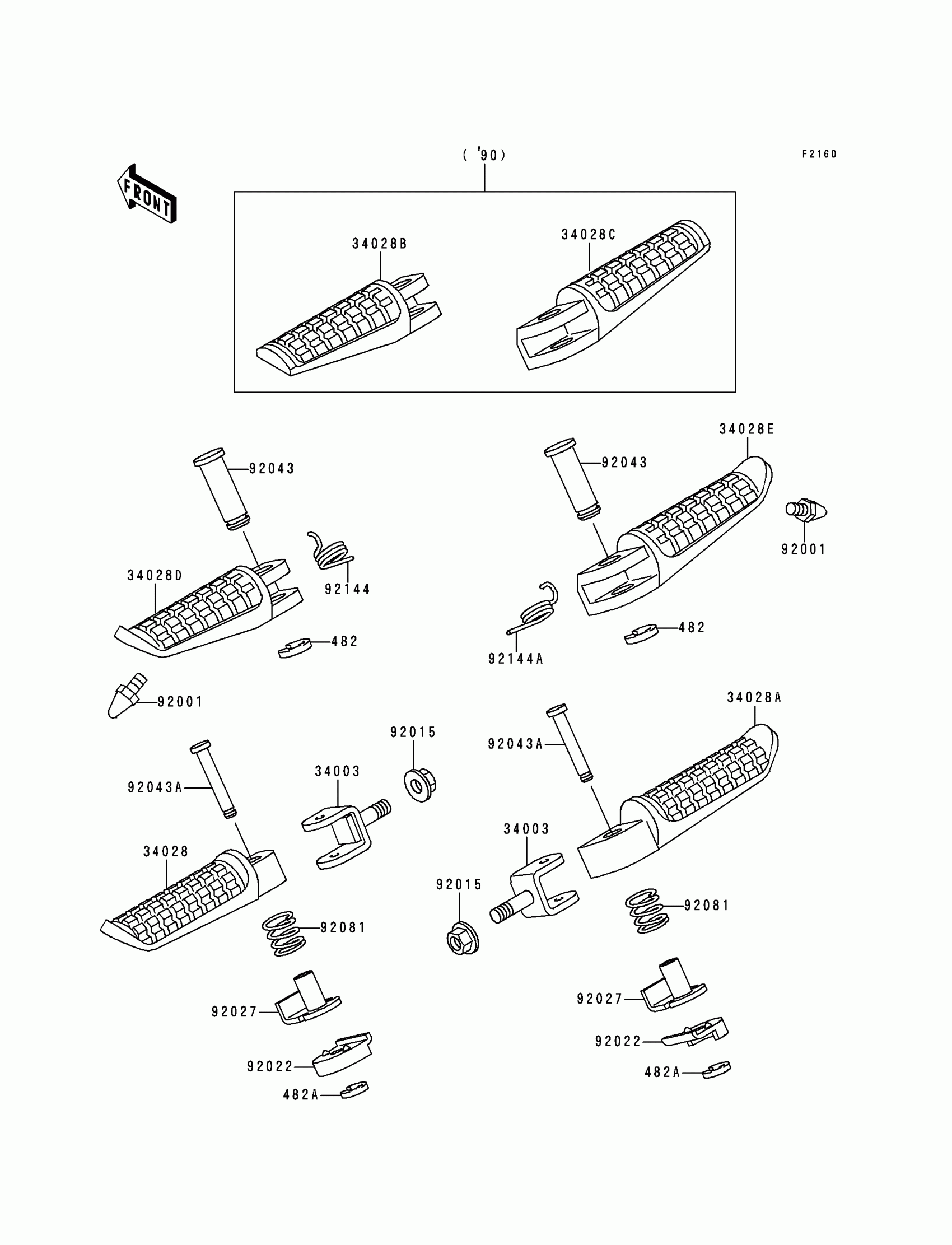

1993 Kawasaki Zephyr Step Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

482

1

$0.98

In stock

482A

1

$1.20

In stock

34003

HOLDER-STEP,RR

34003-1334

1
Out of stock

34028

STEP,RR,LH

34028-1191

1

$61.01

In stock

34028A

STEP,RR,RH

34028-1192

1

$67.74

In stock

34028D

STEP,FR,LH

34028-1334

1

$49.59

In stock

34028E

STEP,FR,RH

34028-1335

1

$49.59

In stock

92001

BOLT,BANK SENSOR

92001-1905

1

$7.22

In stock

92015

NUT,FLANGED,10MM

92015-1428

1

$3.97

In stock

92022

WASHER,STEP,RR

92022-1507

1

$4.61

In stock

92027

COLLAR,STEP

92027-1732

1

$10.73

In stock

92043

PIN,12X42.5

92043-1145

1

$9.27

In stock

92043A

PIN,6X34

92043-1271

1

$4.85

In stock

92081

SPRING,STEP,RR

92081-1612

1

$3.81

In stock

92144

SPRING,STEP RETURN

92144-1567

1

$5.15

In stock

92144A

SPRING,STEP RETURN

92144-1568

1

$5.15

In stock
