1993 Kawasaki Zephyr Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

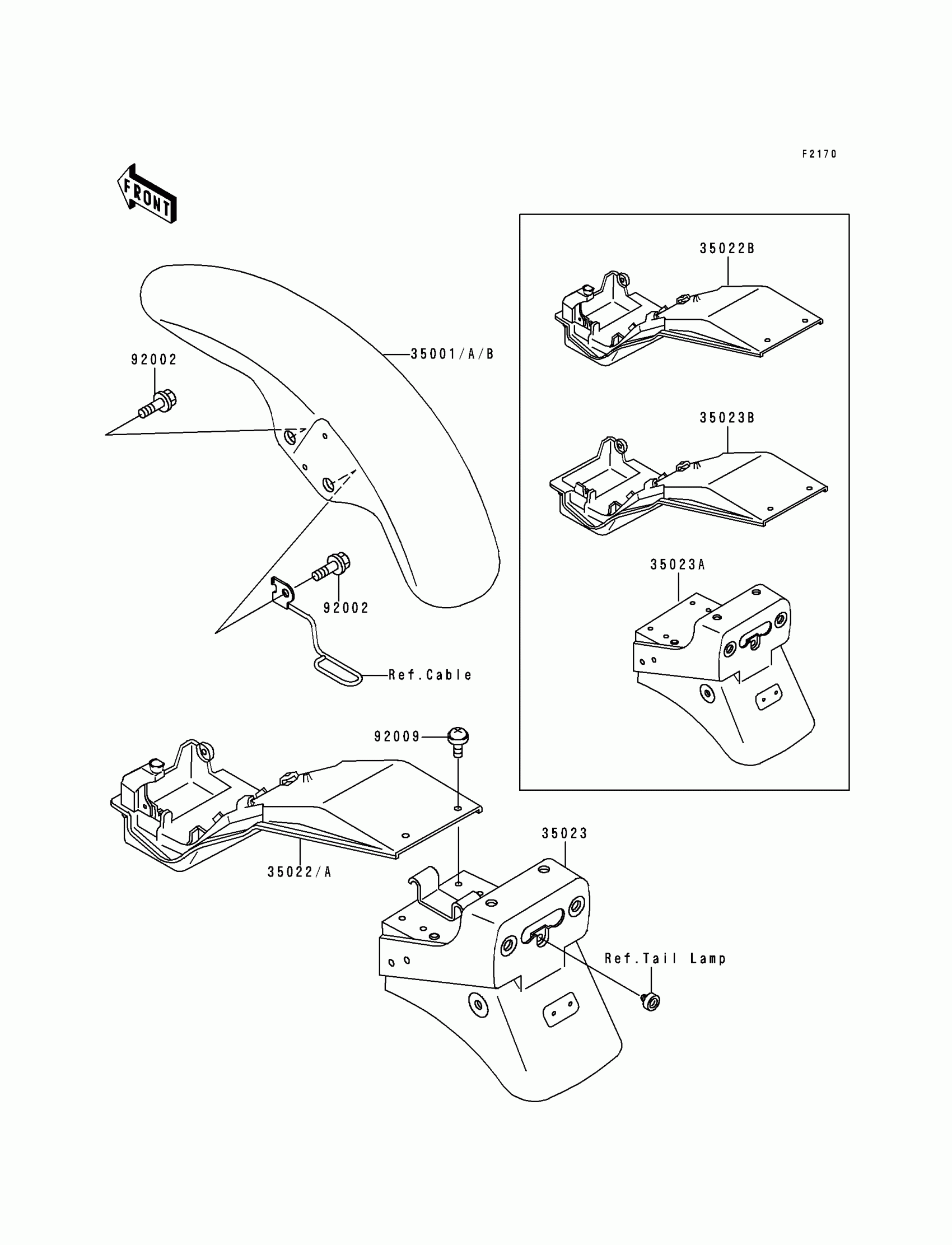

1993 Kawasaki Zephyr Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35001B

FENDER-ASSY-FRONT,L.V.RED

35001-1138-P5

1
Out of stock

35022A

FENDER-COMP-REAR,FR

35022-1274

1

$76.41

In stock

35023

FENDER-REAR,RR

35023-1287

1
Out of stock

92002

BOLT,FLANGED,8X20

92002-1134

1

$3.97

In stock

92009

SCREW,6X14

92009-1288

1
Out of stock
← Decal Frame →
