1993 Kawasaki Zephyr Frame Fitting Diagram

← All diagrams

Find the part on the Frame Fitting diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

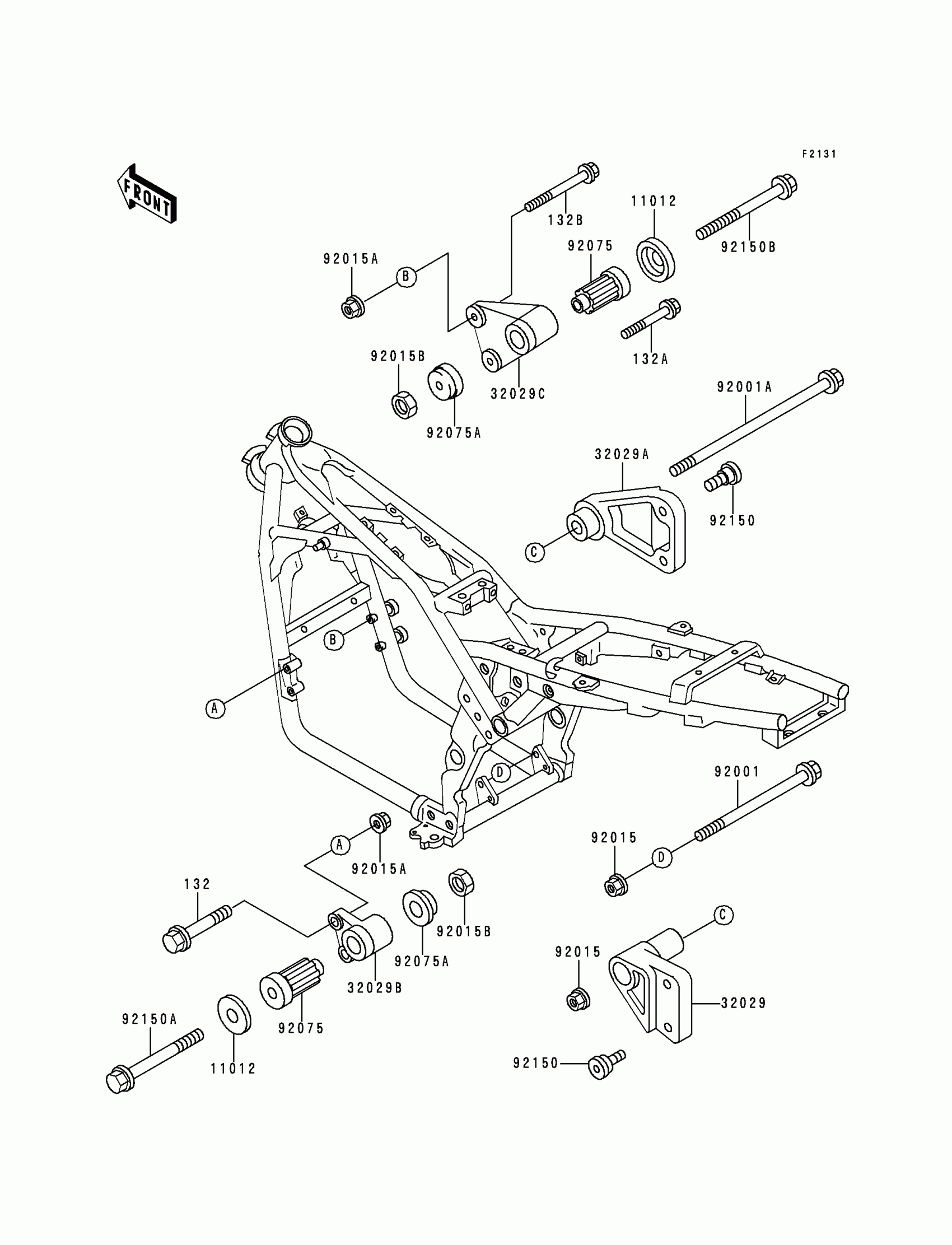

1993 Kawasaki Zephyr Frame Fitting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,8X60

132J0860

1
Out of stock

132A

BOLT-FLANGED-SMALL,8X75

132J0875

1
Out of stock

132B

BOLT-FLANGED-SMALL

132J0890

1
Out of stock

11012

CAP,ENGINE BRACKET

11012-1228

1

$7.49

In stock

32029

BRACKET-ENGINE,RR,LH,C.GRAY

32029-1676-EZ

1
Out of stock

32029A

1

$35.04

In stock

32029B

1

$35.04

In stock

32029C

1

$37.06

In stock

92001

BOLT,FLANGED,10X180

92001-1621

1

$22.61

In stock

92001A

BOLT,FLANGED,10X240

92001-1812

1

$10.97

In stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92015A

NUT,FLANGED,8MM,BLACK

92015-1183

1
Out of stock

92015B

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92075

1

$31.41

In stock

92075A

1

$16.49

In stock

92150

BOLT,SOCKET,8X20

92150-1148

1
Out of stock

92150A

BOLT,FLANGED,10X110

92150-1317

1

$5.19

In stock

92150B

BOLT,FLANGED,10X125

92150-1318

1
Out of stock
