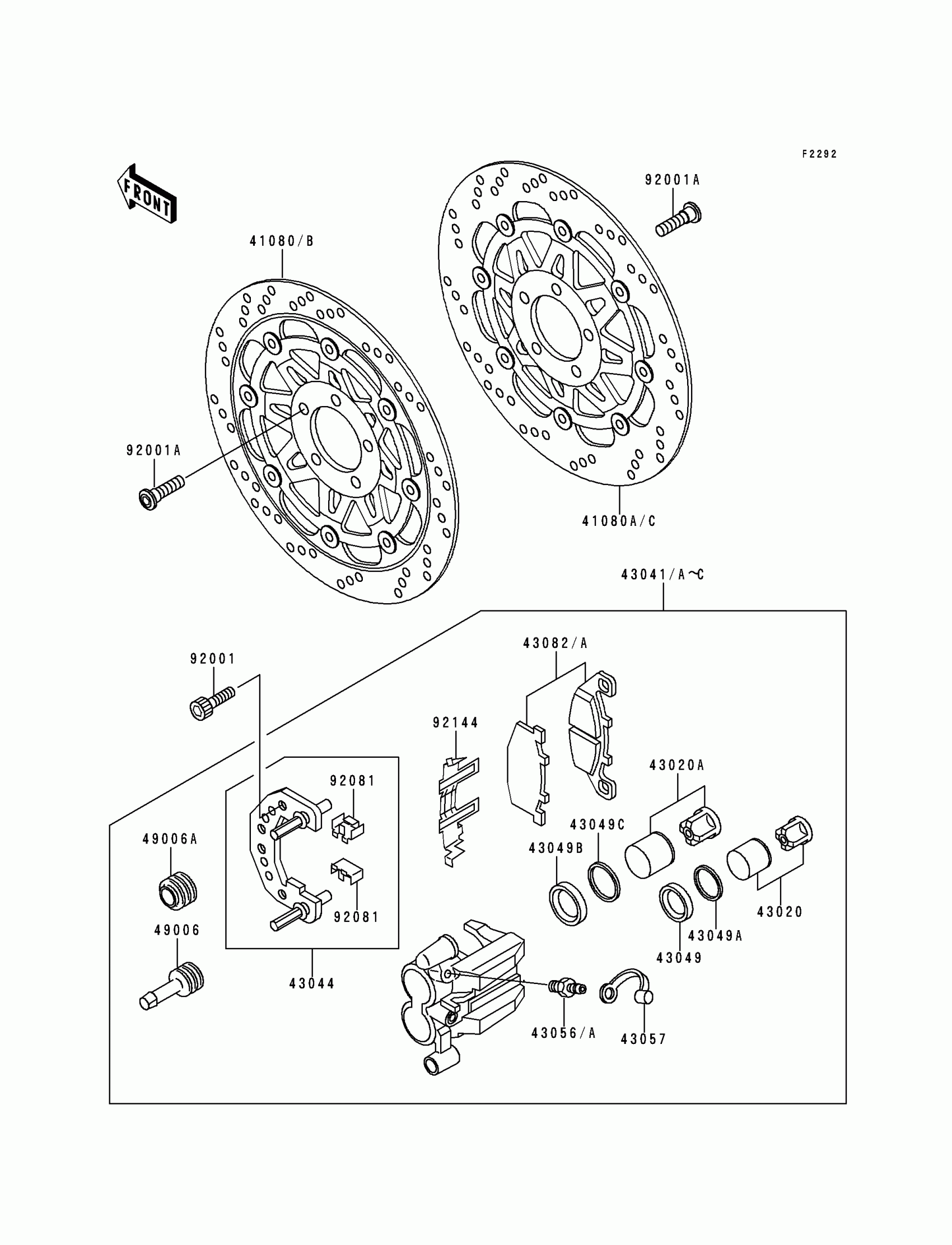

Kawasaki Zephyr Front Caliper(ZR550-B1/B2/B3) Diagram

Description

Price

41080B

DISC,FR,LH,SILVER NO.1

41080-1296-CM

$430.10

41080C

DISC,FR,RH,SILVER NO.1

41080-1297-CM

$388.17

43020

PISTON-COMP-BRAKE

43020-1068

$74.19

43020A

PISTON-COMP-BRAKE

43020-1069

$74.19

43041B

CALIPER-ASSY,FR,RH,M.F.GRAY

43041-1383-FE

$363.61

43041C

CALIPER-ASSY,FR,LH,F.GRAY

43041-1442-FE

$405.14

43044

HOLDER-COMP-CALIPER

43044-1067

$162.04

43049

PACKING,PISTON SEAL

43049-1054

$9.44

43049A

PACKING,PISTON

43049-1055

$8.59

43049B

PACKING,PISTON SEAL

43049-1056

$9.96

43049C

PACKING,PISTON

43049-1057

$9.61

43056

BREATHER

43056-003

$19.94

43056A

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082A

PAD-ASSY-BRAKE

43082-1114

$47.97

49006

BOOT,CALIPER

49006-1094

$9.30

49006A

BOOT,CALIPER

49006-1095

$5.55

92001

BOLT,SOCKET,10X33

92001-1901

$10.24

92001A

BOLT,DISC PLATE,8X30

92001-1951

$3.57

92081

SPRING,PAD STOPPER

92081-1661

$9.22

92144

SPRING,PAD

92144-1070

$30.43
