1993 Kawasaki Zephyr Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

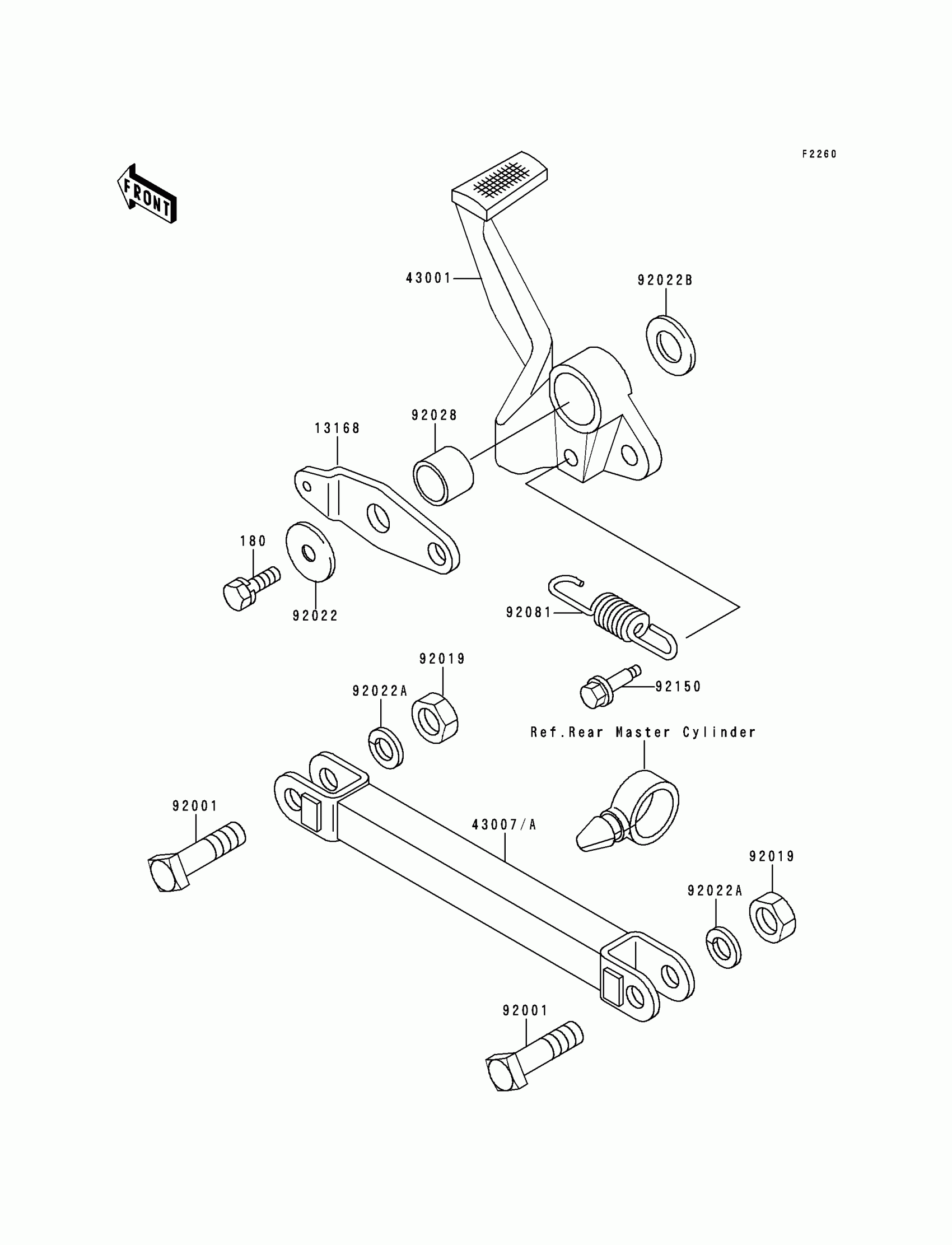

1993 Kawasaki Zephyr Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

180

BOLT-UPSET-WS,6X14

180H0614

1
Out of stock

13168

LEVER,BRAKE SWITCH

13168-1435

1
Out of stock

43001

LEVER-BRAKE,PEDAL

43001-1276

1
Out of stock

43007A

ROD-TORQUE,SILVER NO.25

43007-1169-CE

1
Out of stock

92001

BOLT,10X37

92001-1307

1

$5.97

In stock

92019

NUT,LOCK,10MM

92019-021

1

$4.83

In stock

92022

WASHER,7X28X1.6

92022-1282

1

$3.72

In stock

92022A

WASHER,SPRING,10MM

92022-1540

1

$3.27

In stock

92022B

WASHER,15.3X24X1

92022-326

1
Out of stock

92028

BUSHING,BRAKE PEDAL

92028-1282

1

$13.39

In stock

92081

SPRING,BRAKE PEDAL

92081-1296

1
Out of stock

92150

BOLT,6MM

92150-1113

1

$7.56

In stock
