1993 Kawasaki Zephyr Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

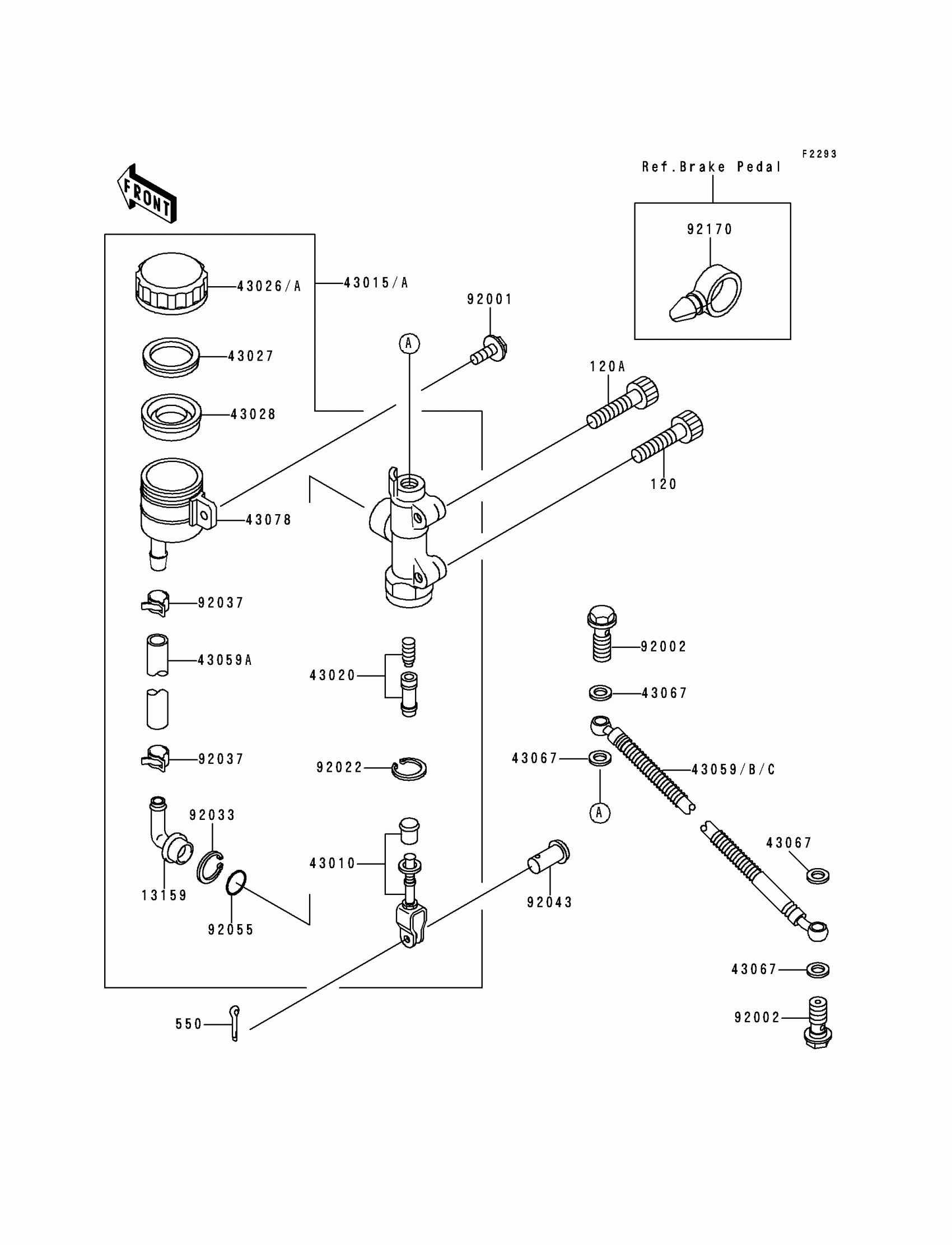

1993 Kawasaki Zephyr Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X35

120S0835

1
Out of stock

120A

BOLT-SOCKET,8X40

120S0840

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

13159

1

$13.39

In stock

43010

ROD-ASSY-BRAKE

43010-1055

1

$70.35

In stock

43015A

1

$442.60

In stock

43020

PISTON-COMP-BRAKE

43020-1073

1

$59.90

In stock

43026

CAP-BRAKE

43026-1051

1

$31.36

In stock

43027

PLATE-DIAPHRAGM

43027-1051

1

$4.22

In stock

43028

1

$15.01

In stock

43059A

1

$40.33

In stock

43059C

HOSE-BRAKE,RR

43059-1749

1
Out of stock

43067

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

43078

1

$28.80

In stock

92001

BOLT,W/P,6X16

92001-1860

1

$3.85

In stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92022

WASHER,CIRCRIP

92022-1601

1
Out of stock

92033

RING-SNAP,20.5MM

92033-1186

1

$3.94

In stock

92037

CLAMP,BRAKE HOSE

92037-1547

1

$11.81

In stock

92043

PIN,8X27.5

92043-1435

1

$4.76

In stock

92055

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock
