1993 Kawasaki Zephyr Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

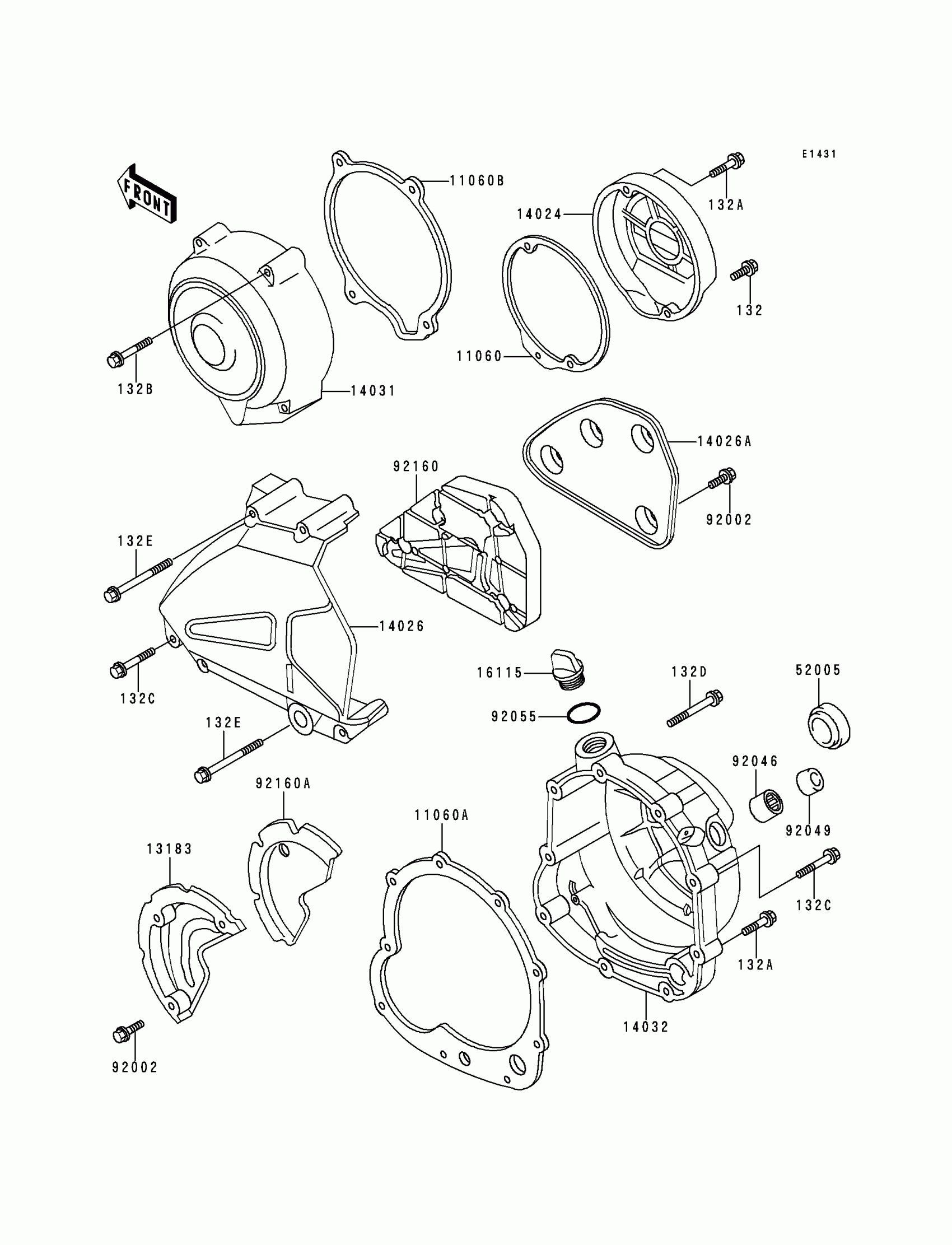

1993 Kawasaki Zephyr Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X20

132E0620

1
Out of stock

132A

1

$5.42

In stock

132B

BOLT-FLANGED-SMALL,6X40

132E0640

1
Out of stock

132C

1

$4.61

In stock

132D

1

$4.19

In stock

132E

BOLT-FLANGED-SMALL

132E0670

1
Out of stock

11060

1

$6.45

In stock

11060A

GASKET,CLUTCH COVER

11060-1054

1

$24.63

In stock

11060B

1

$10.93

In stock

13183

PLATE,CLUTCH SOUND ARRESTER

13183-1476

1
Out of stock

14024

COVER,PULSING

14024-1819

1
Out of stock

14026

COVER-CHAIN

14026-1150

1
Out of stock

14026A

COVER-CHAIN,SOUND ARRESTER

14026-1151

1
Out of stock

14031

COVER-GENERATOR

14031-1240

1
Out of stock

14032

COVER-CLUTCH

14032-1280

1

$199.46

In stock

16115

CAP-OIL FILLER

16115-013

1

$18.64

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92002

BOLT,6X10

92002-1449

1

$3.68

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92160

DAMPER,CHAIN SOUND ARRESTER

92160-1143

1
Out of stock

92160A

DAMPER,CLUTCH SOUND ARRESTER

92160-1149

1
Out of stock
