1993 Kawasaki Zephyr Camshaft/tensioner Diagram

← All diagrams

Find the part on the Camshaft/tensioner diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

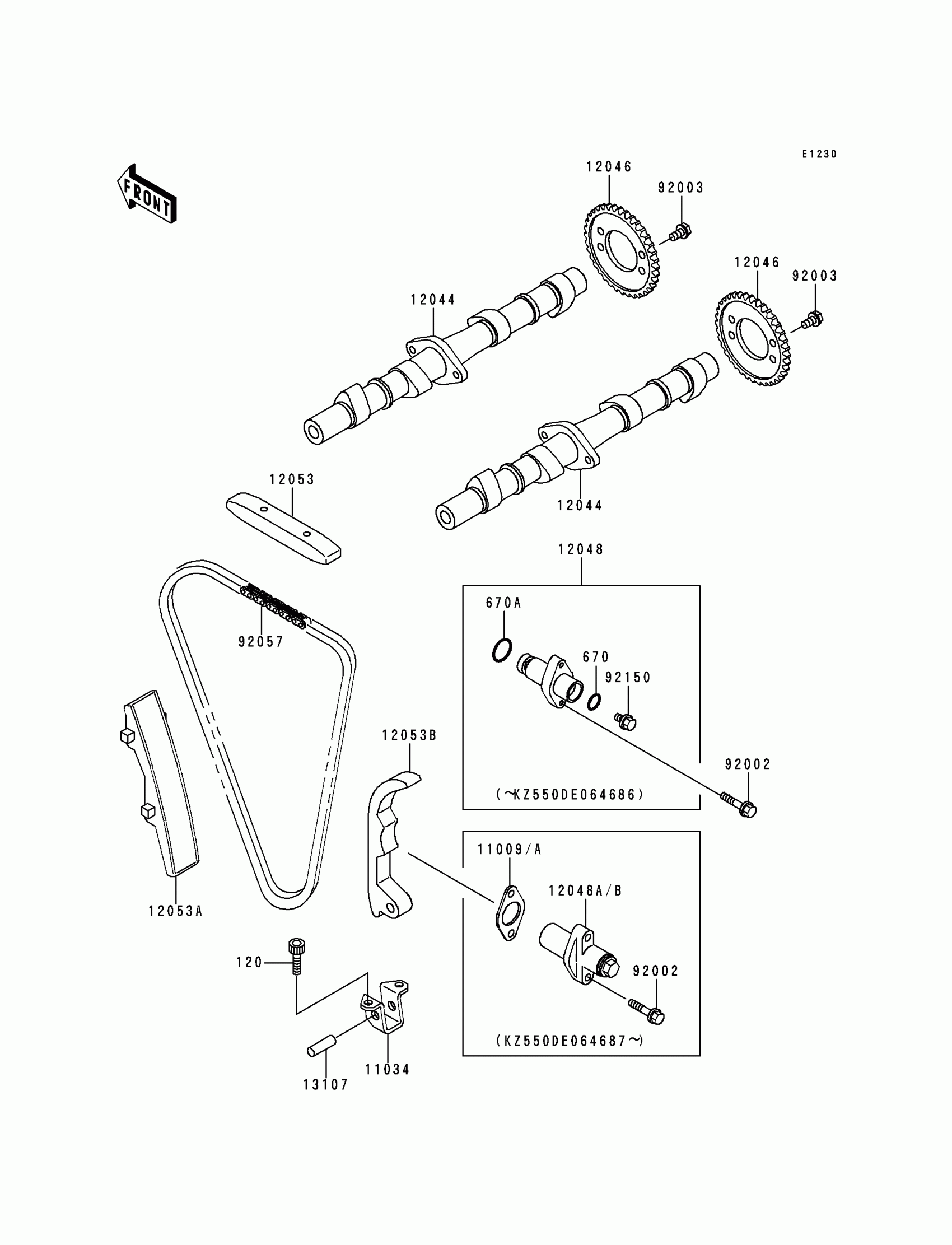

1993 Kawasaki Zephyr Camshaft/tensioner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X18

120P0618

1
Out of stock

11009

GASKET,TENSIONER

11009-1858

1
Out of stock

11034

BRACKET,CHAIN GUIDE

11034-1240

1
Out of stock

12044

CAMSHAFT-VALVE

12044-1034

1
Out of stock

12046

SPROCKET,CAMSHAFT,42T

12046-1019

1
Out of stock

12048A

TENSIONER-ASSY,CAM CHAIN

12048-1111

1
Out of stock

12053

GUIDE-CHAIN,CAM,HEAD

12053-1018

1
Out of stock

12053A

GUIDE-CHAIN,CAM,FR

12053-1022

1
Out of stock

12053B

GUIDE-CHAIN,CAM,RR

12053-1113

1
Out of stock

13107

SHAFT,8X25

13107-1142

1
Out of stock

92002

BOLT,FLANGED,6X25

92002-1086

1
Out of stock

92003

BOLT,FLANGED,6X11

92003-208

1
Out of stock

92057

CHAIN,CAM,82RH2015-140L

92057-1290

1
Out of stock
