1993 Kawasaki Zephyr Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

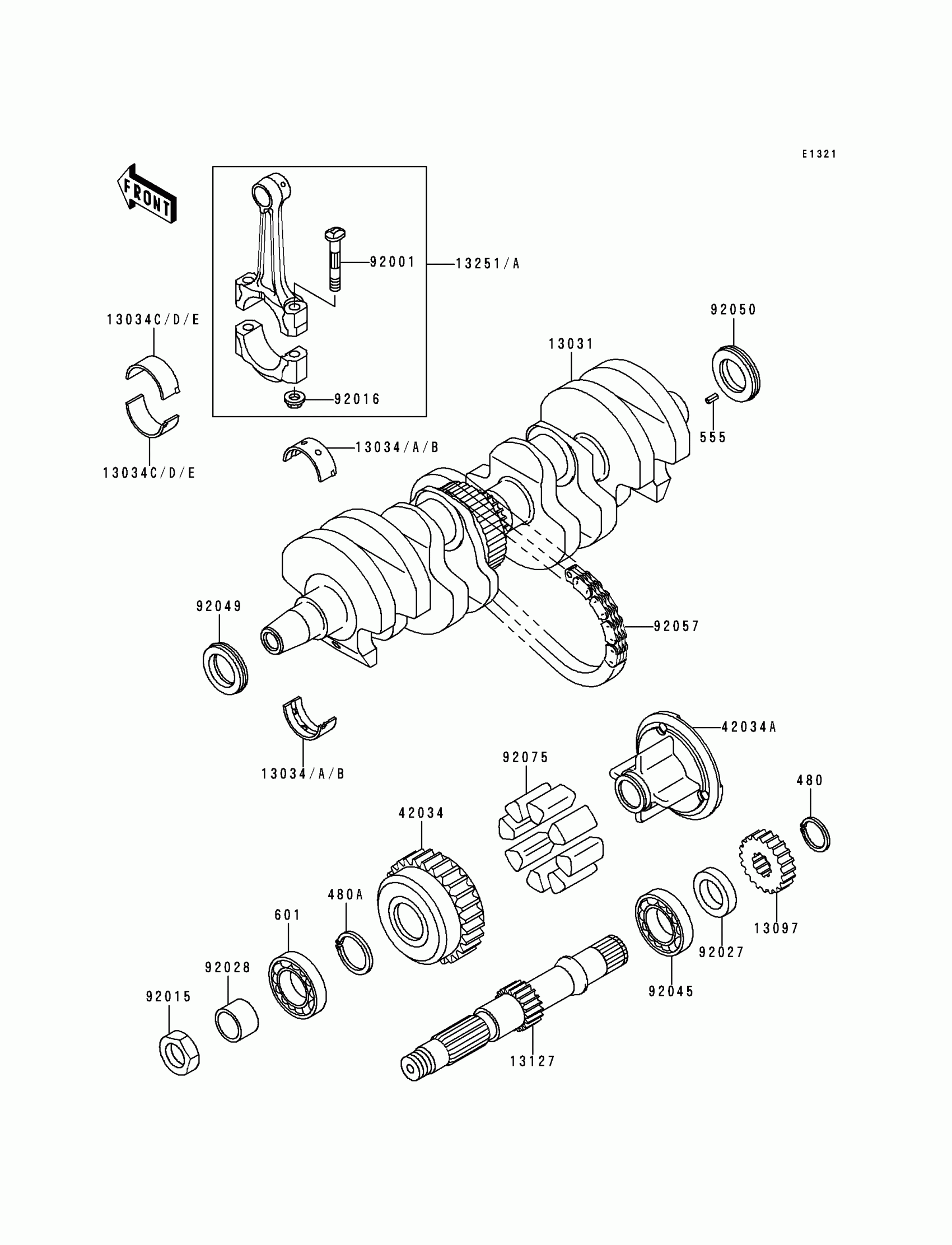

1993 Kawasaki Zephyr Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

1

$3.97

In stock

480A

1

$3.73

In stock

555

PIN-SPRING,4X8

555A0408

1

$3.12

In stock

601

1

$15.38

In stock

13031

CRANKSHAFT-COMP

13031-1014

1
Out of stock

13034

1

$19.83

In stock

13034A

—

$19.83

In stock

13034B

—

$19.60

In stock

13034C

1

$19.83

In stock

13034D

—

$19.83

In stock

13034E

BUSHING,CONNECTING ROD,BROWN

13034-1069

—
Out of stock

13097

GEAR-PRIMARY SPUR,26T

13097-1008

1
Out of stock

13127

SHAFT,SECONDARY

13127-1007

1
Out of stock

13251

ROD-ASSY-CONNECTING

13251-1004-EE

1
Out of stock

13251A

ROD-ASSY-CONNECTING

13251-1004-GG

1
Out of stock

42034

COUPLING,OUTER,SECONDARY SHAFT

42034-1004

1
Out of stock

42034A

COUPLING,INNER,SECONDARY SHAFT

42034-1005

1
Out of stock

92001

1

$6.82

In stock

92015

NUT,18MM

92015-019

1
Out of stock

92016

NUT,7MM

92016-060

1

$4.37

In stock

92027

COLLAR,22X34X7.3

92027-1438

1

$8.03

In stock

92028

BUSHING,20X25X16.6

92028-1037

1

$32.44

In stock

92045

1

$34.80

In stock

92049

SEAL-OIL,HSCY25367

92049-1013

1
Out of stock

92050

SEAL-OIL,HSCY25397

92050-081

1
Out of stock

92057

1

$158.21

In stock

92075

DAMPER,COUPLING

92075-1070

1
Out of stock
