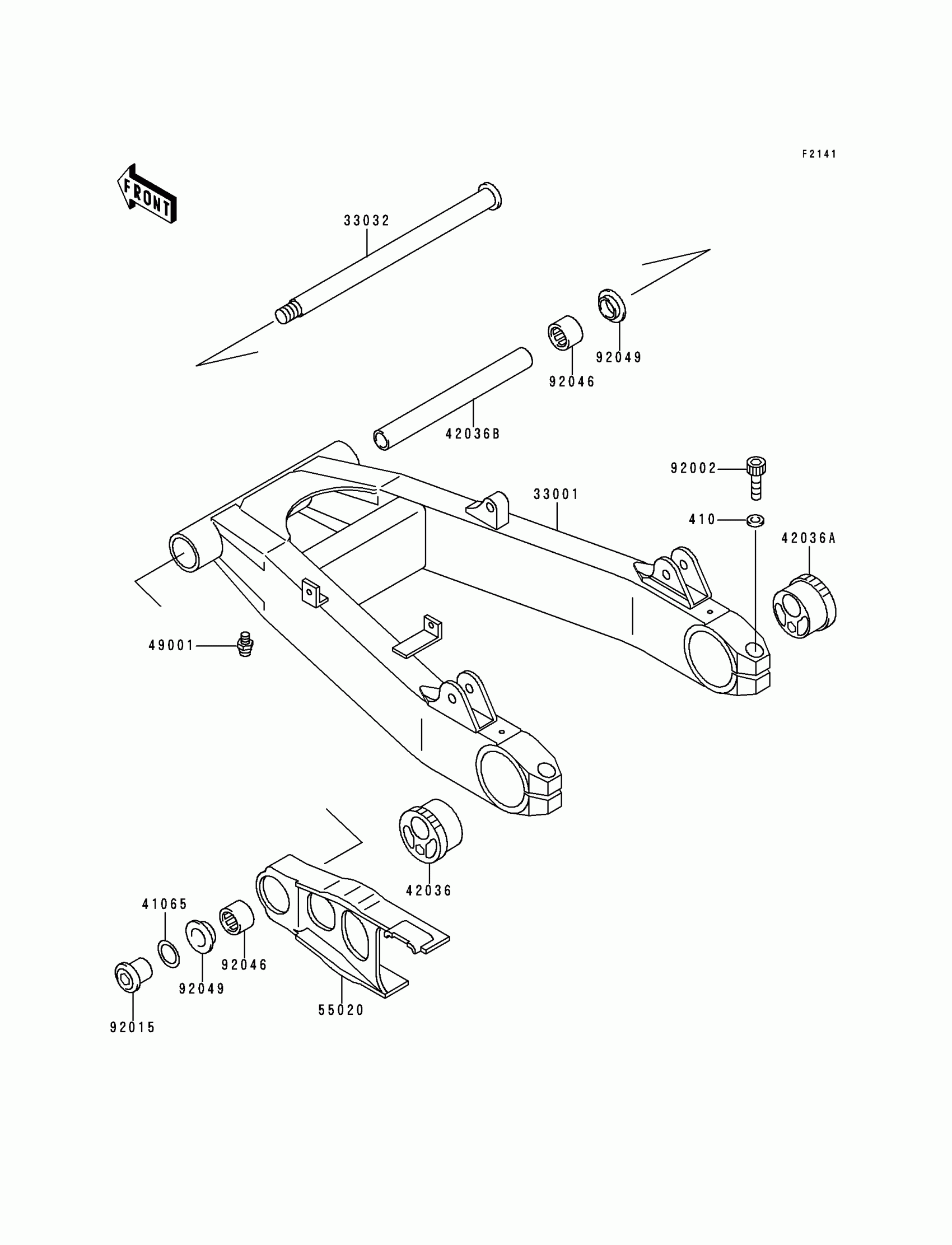

Find the part on the Swing ARM diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Zephyr 750 Swing ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

W-PLAIN-S

410E1000

1
Out of stock

33001

ARM-COMP-SWING,SILVER NO.25

33001-1372-CE

1
Out of stock

33032

SHAFT-SWING ARM

33032-1163

1
Out of stock

41065

WASHER,24.5X32X0.8

41065-005

1
Out of stock

42036

SLEEVE,AXLE,LH

42036-1147

1
Out of stock

42036A

SLEEVE,AXLE,RH

42036-1148

1
Out of stock

42036B

SLEEVE,SWING ARM,L=237

42036-1264

1
Out of stock

49001

NIPPLE-GREASE

49001-1051

1
Out of stock

55020

GUARD,CHAIN

55020-1383

1
Out of stock

92002

BOLT,SOCKET,10X40

92002-1452

1
Out of stock

92015

NUT,16MM

92015-1835

1
Out of stock

92046

BEARING-NEEDLE,BM2824

92046-1202

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock
