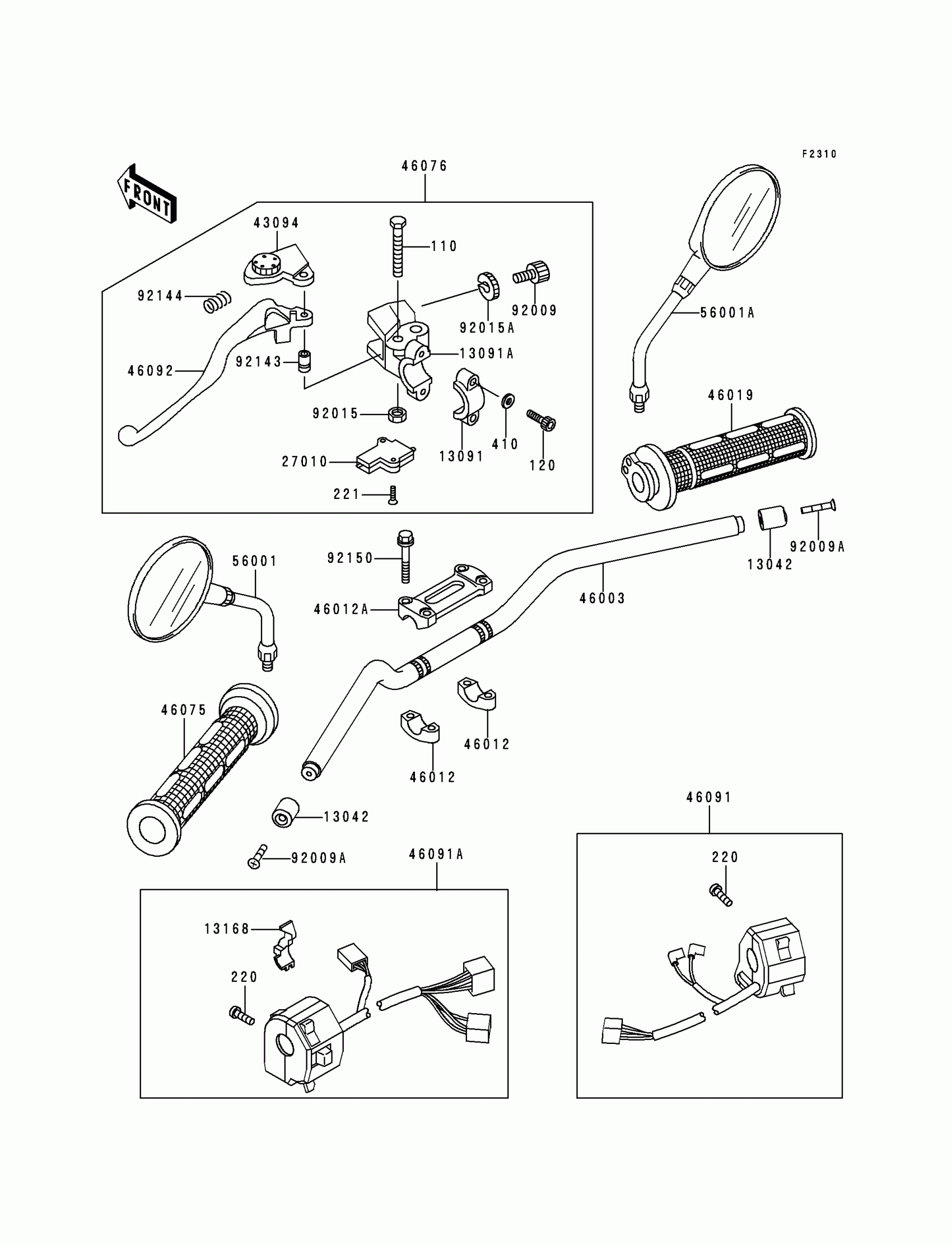

Kawasaki Zephyr 750 Handlebar Diagram

#

Description
Price

110

BOLT,6X40

110C0640

Unavailable

120

BOLT-SOCKET,6X20

120S0620

Unavailable

220

SCREW-PAN-CROS

220C0520

$1.36

221

SCREW-CSK-CROS

221C0316

$3.24

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

Unavailable

13042

WEIGHT,HANDLE

13042-1077

Unavailable

13091

HOLDER,CLUTCH LEVER

13091-1624

$36.55

13091A

HOLDER,CLUTCH LEVER

13091-1652

Unavailable

13168

LEVER,CHOKE

13168-1448

$20.12

27010

SWITCH,CLUTCH,BLACK

27010-1094

$25.31

43094

ADJUSTER,CLUTCH LEVER

43094-1053

$36.81

46003

HANDLE

46003-1330

$170.80

46012

HOLDER-HANDLE,LWR

46012-1212

Unavailable

46012A

HOLDER-HANDLE,UPP

46012-1213

Unavailable

46019

GRIP-ASSY,THROTTLE

46019-1059

$32.50

46075

GRIP,LH

46075-1028

$14.16

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1180

Unavailable

46091

HOUSING-ASSY-CONTROL,RH

46091-1553

$158.54

46091A

HOUSING-ASSY-CONTROL,LH

46091-1554

Unavailable

46092

LEVER-GRIP,CLUTCH

46092-1162

$13.41

56001

MIRROR-ASSY,LH

56001-1266

Unavailable

56001A

MIRROR-ASSY,RH

56001-1267

Unavailable

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92009A

SCREW,5X35

92009-1584

$3.34

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92143

COLLAR

92143-1379

$7.25

92144

SPRING

92144-1467

$4.88

92150

BOLT,FLANGED,8X55

92150-1361

$7.49
