1993 Kawasaki Zephyr 750 Front HUB Diagram

← All diagrams

Find the part on the Front HUB diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

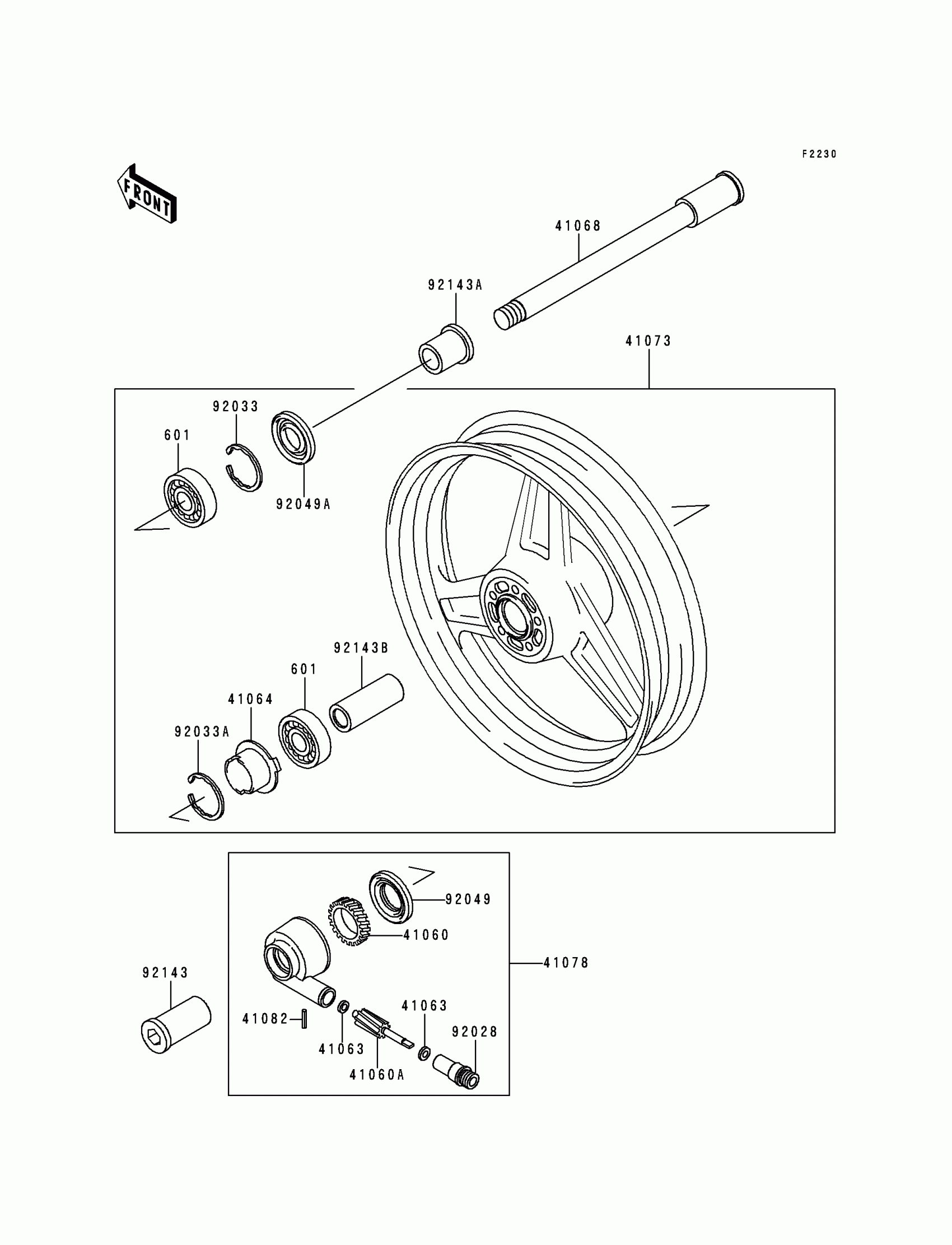

1993 Kawasaki Zephyr 750 Front HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

BEARING-BALL,#6203UUC3

601B6203UU

1
Out of stock

41060

1

$20.37

In stock

41060A

GEAR-METER SCREW,9T

41060-1123

1

$19.10

In stock

41063

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

41064

1

$11.81

In stock

41068

AXLE,FR

41068-1255

1
Out of stock

41073

WHEEL-ASSY,FR,G.GRAY

41073-1480-JF

1
Out of stock

41078

CASE-ASSY-METER GEAR

41078-1069

1
Out of stock

41082

PIN,SPRING

41082-001

1
Out of stock

92028

BUSHING,SPEEDOMETER

92028-1066

1
Out of stock

92033

RING-SNAP,40MM

92033-1040

1
Out of stock

92033A

RING-SNAP,42MM

92033-1041

1
Out of stock

92049

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

92049A

SEAL-OIL,AG1258AO

92049-1110

1
Out of stock

92143

COLLAR,FR AXLE NUT,L=42.5

92143-1206

1
Out of stock

92143A

COLLAR,FR AXLE,L=19.5

92143-1335

1
Out of stock

92143B

COLLAR,FR HUB,L=87.5

92143-1392

1
Out of stock
