1993 Kawasaki Zephyr 750 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

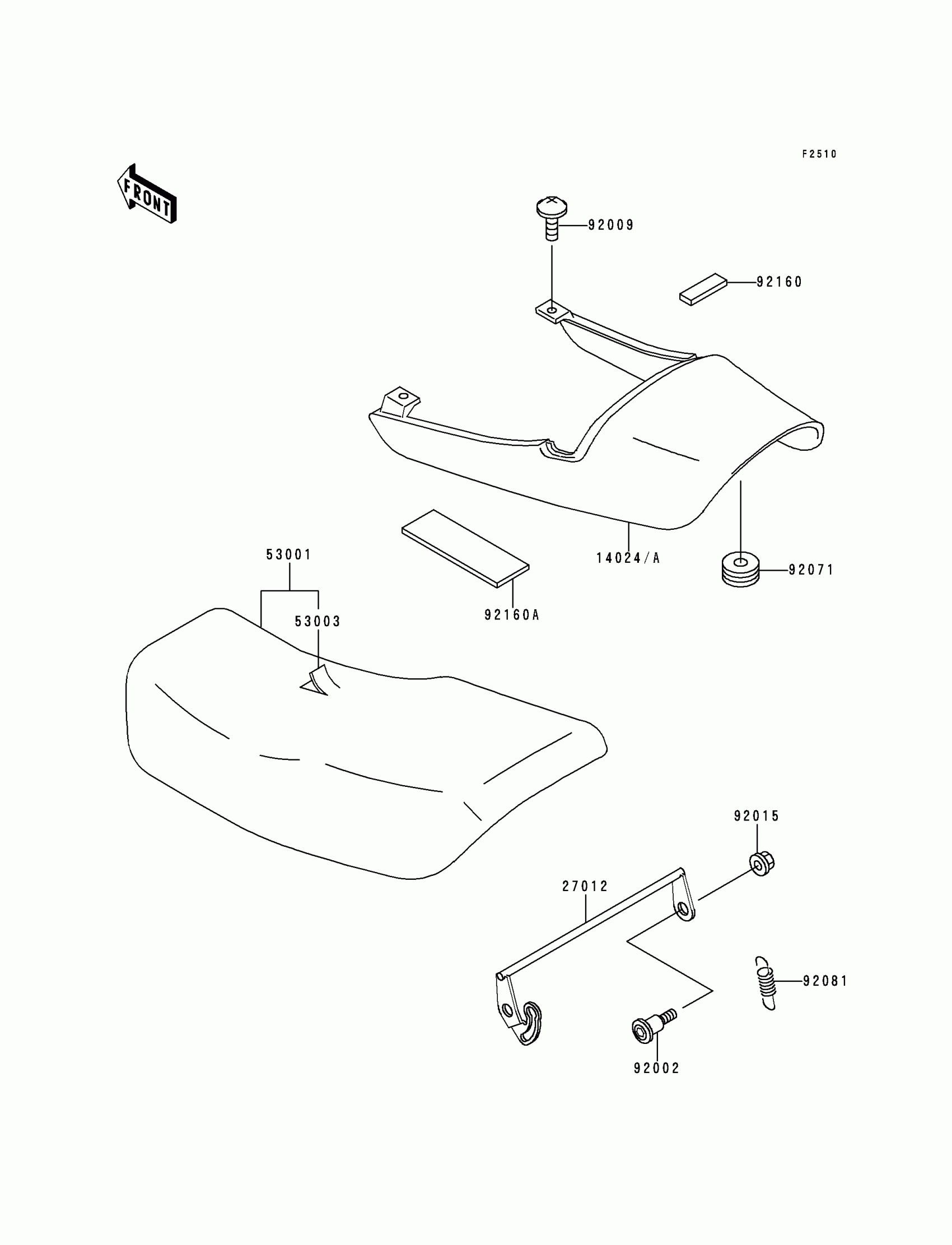

1993 Kawasaki Zephyr 750 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024A

COVER,SEAT,L.V.RED

14024-1973-P5

1
Out of stock

27012

HOOK,SEAT

27012-1422

1
Out of stock

53001

1

$527.24

In stock

53003

LEATHER,SEAT,BLACK

53003-1243-MA

1

$204.57

In stock

92002

BOLT,SOCKET,6MM

92002-1616

1
Out of stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1699

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92081

SPRING

92081-1023

1
Out of stock

92160

DAMPER

92160-1099

1
Out of stock

92160A

DAMPER

92160-1266

1
Out of stock
