1993 Kawasaki Zephyr 750 Frame Fitting Diagram

← All diagrams

Find the part on the Frame Fitting diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

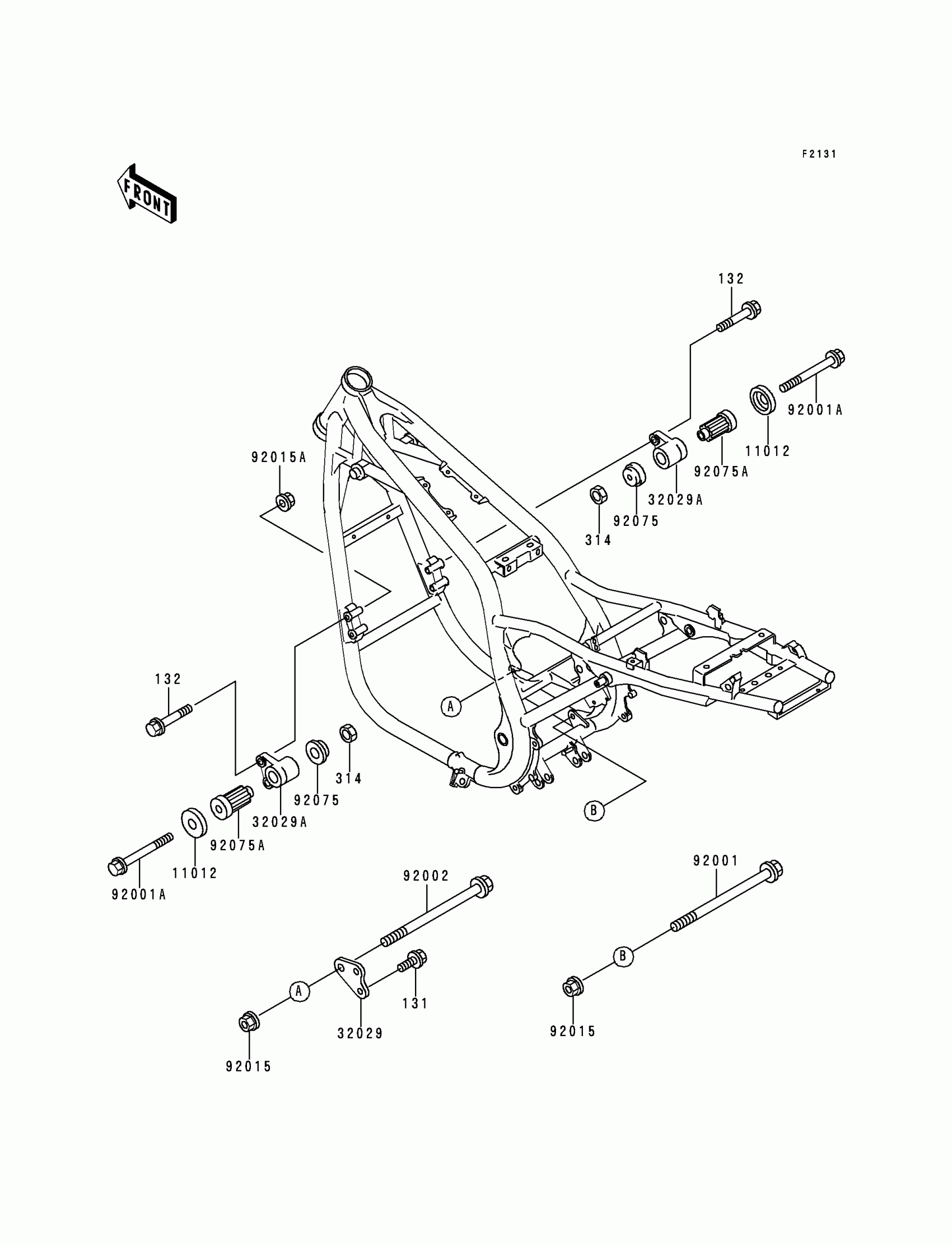

1993 Kawasaki Zephyr 750 Frame Fitting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

131

BOLT-FLANGED,8X20

131J0820

1
Out of stock

132

BOLT-FLANGED-SMALL,8X60

132J0860

1
Out of stock

314

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

11012

CAP,ENGINE BRACKET

11012-1228

1
Out of stock

32029

BRACKET-ENGINE,RR,UPP,RH

32029-1745

1
Out of stock

32029A

BRACKET-ENGINE,FR,C.GRAY

32029-1754-EZ

1
Out of stock

92001

BOLT,FLANGED,10X180

92001-1621

1
Out of stock

92001A

BOLT,FLANGED,10X115,BLACK

92001-1780

1
Out of stock

92002

BOLT,FLANGED,10X190

92002-1548

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92015A

NUT,FLANGED,8MM,BLACK

92015-1183

1
Out of stock

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

1
Out of stock

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

1
Out of stock
