1993 Kawasaki Zephyr 750 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

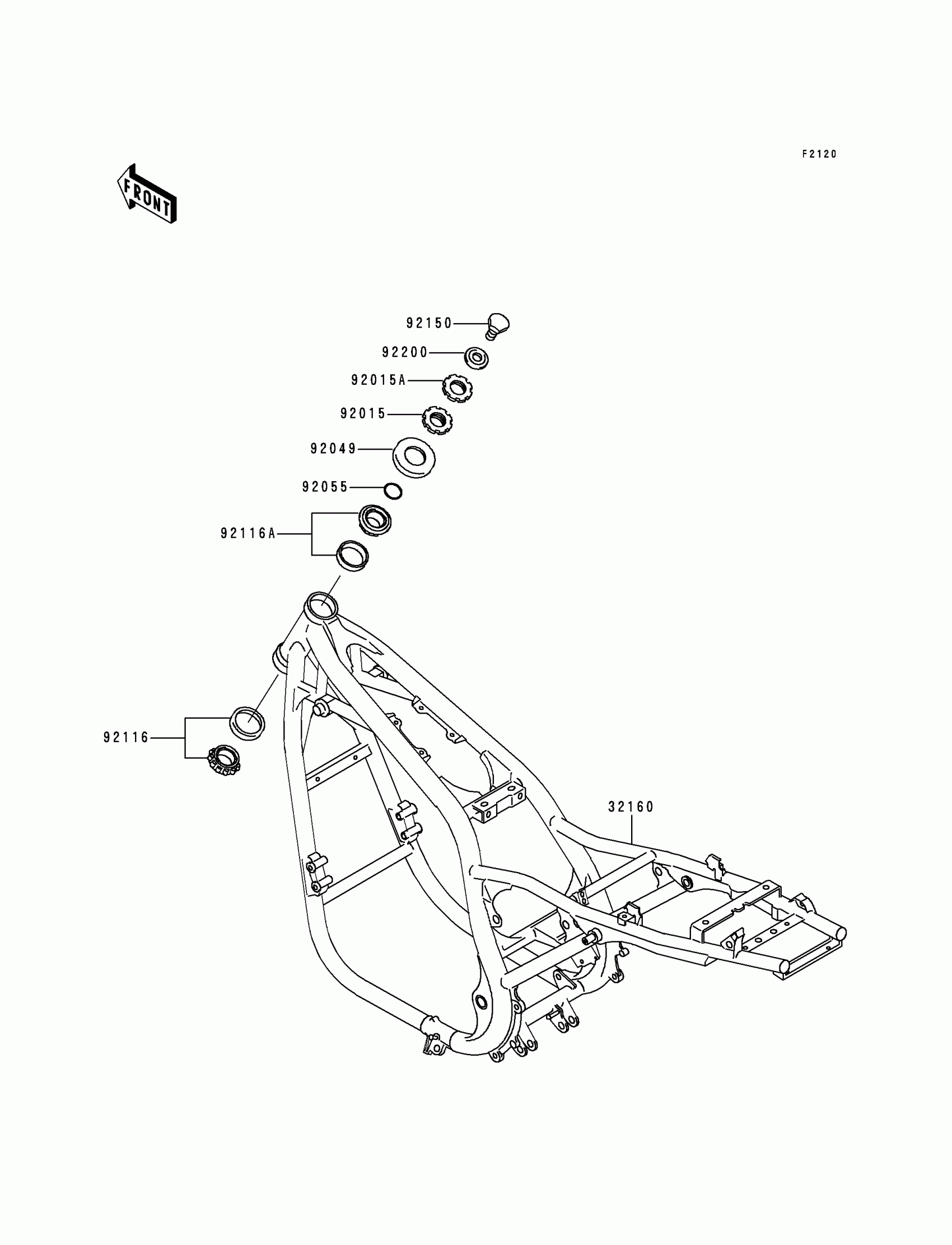

1993 Kawasaki Zephyr 750 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,C.GRAY

32160-1157-EZ

1
Out of stock

92015

NUT,25MM

92015-1803

1
Out of stock

92015A

NUT,25MM

92015-1810

1
Out of stock

92049

SEAL-OIL,STEERING STEM

92049-1214

1
Out of stock

92055

RING-O,ID=24.5

92055-1459

1
Out of stock

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

1
Out of stock

92116A

BEARING-ROLLER,HI-CAP32005JR-1

92116-1056

1
Out of stock

92150

BOLT,14X25

92150-1672

1
Out of stock

92200

WASHER

92200-1140

1
Out of stock
