2018 Kawasaki Z900RS Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 2018 Kawasaki Z900RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

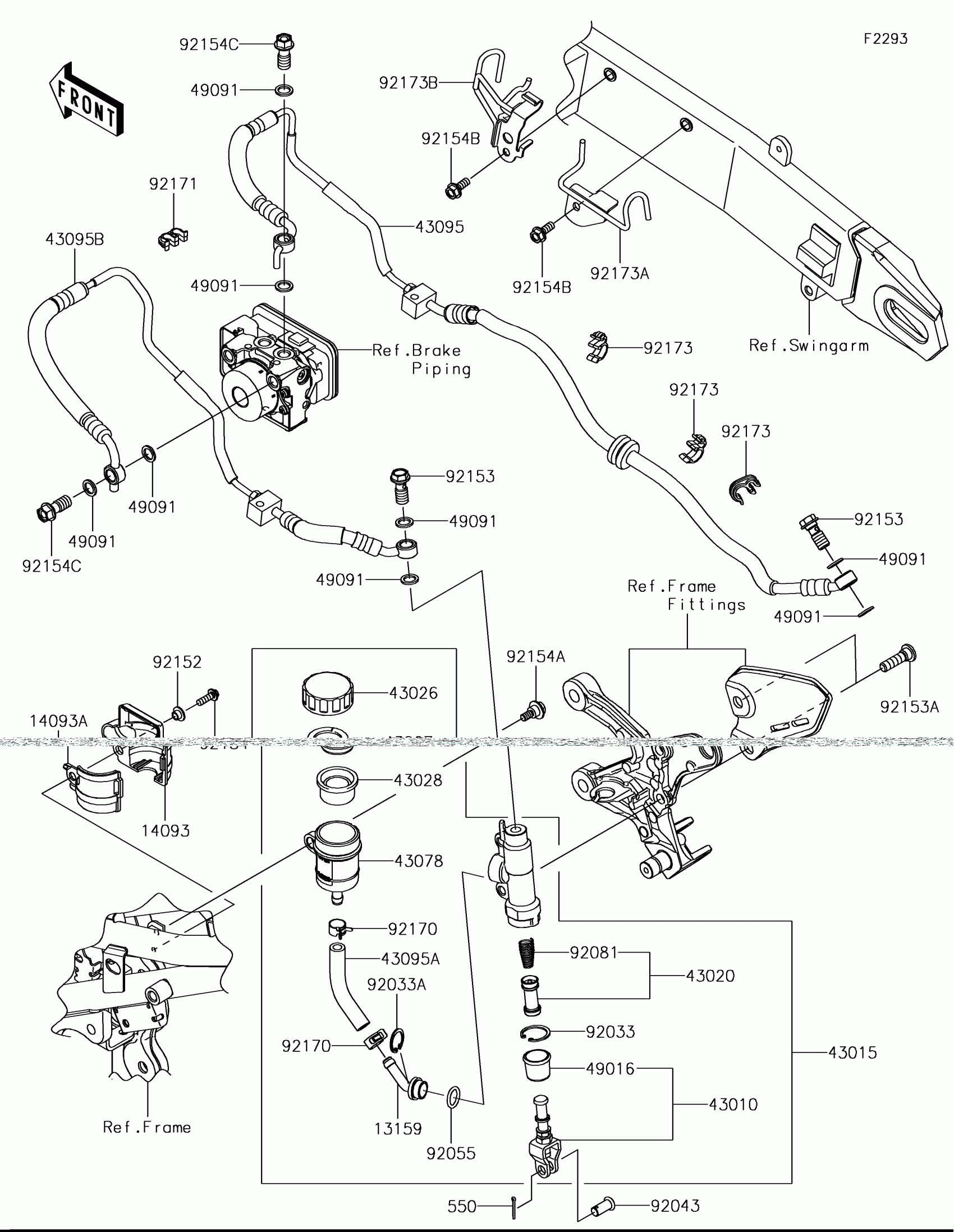

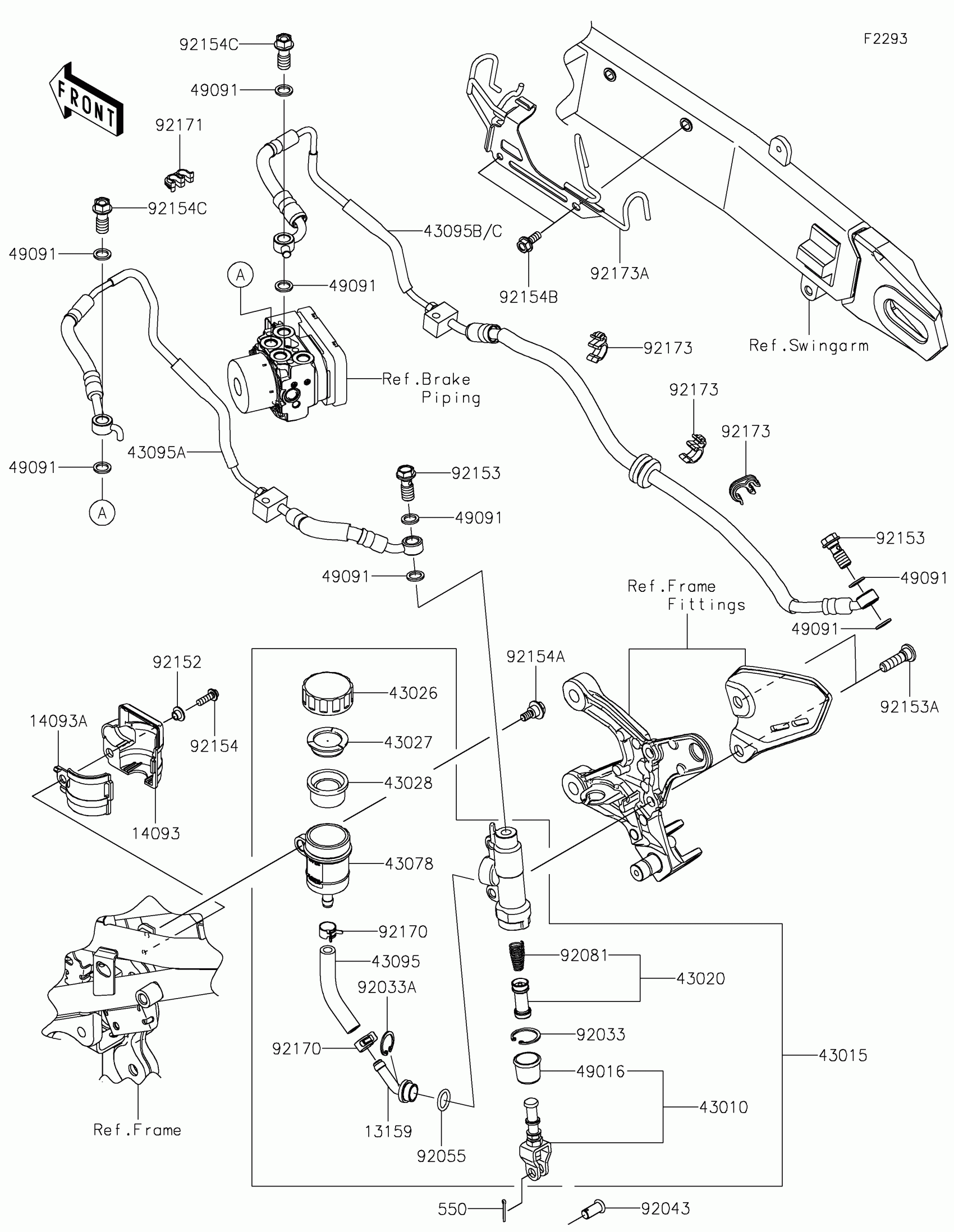

2018 Kawasaki Z900RS Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13159

CONNECTOR

13159-0008

1
Out of stock

14093

COVER,RR RESERVOIR,OUTER

14093-0653

1
Out of stock

14093A

COVER,RR RESERVOIR,INNER

14093-0654

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-0020

1
Out of stock

43015

CYLINDER-ASSY-MASTER,RR

43015-0664

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1057

1
Out of stock

43026

CAP-BRAKE

43026-0009

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1053

1
Out of stock

43028

DIAPHRAGM

43028-1065

1
Out of stock

43078

RESERVOIR

43078-0060

1
Out of stock

43095

HOSE-BRAKE,ABS UNIT-RR CALIPER

43095-1481

1
Out of stock

43095A

HOSE-BRAKE

43095-1496

1
Out of stock

43095B

HOSE-BRAKE,RR M/CYL.-ABS UNIT

43095-1517

1
Out of stock

49016

COVER-SEAL,BRAKE PISTON

49016-1103

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

1
Out of stock

92033A

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92043

PIN,8X17

92043-0104

1
Out of stock

92055

RING-O,14.8X2.4

92055-0741

1
Out of stock

92081

SPRING,MASTER CYLINDER

92081-1737

1
Out of stock

92152

COLLAR,5.3X7.3X5.3

92152-2190

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,SOCKET,8X30

92153-1624

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154A

BOLT,FLANGED,6X16

92154-0385

1
Out of stock

92154B

BOLT,FLANGED,6X16

92154-0899

1
Out of stock

92154C

BOLT,BANJO,10X22

92154-1138

1
Out of stock

92170

CLAMP,HOSE

92170-1091

1
Out of stock

92171

CLAMP

92171-0817

1
Out of stock

92173

CLAMP,HOSE & SENSOR

92173-1796

1
Out of stock

92173A

CLAMP,SWA,RR

92173-1801

1
Out of stock

92173B

CLAMP,SWA,FR

92173-1903

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock
