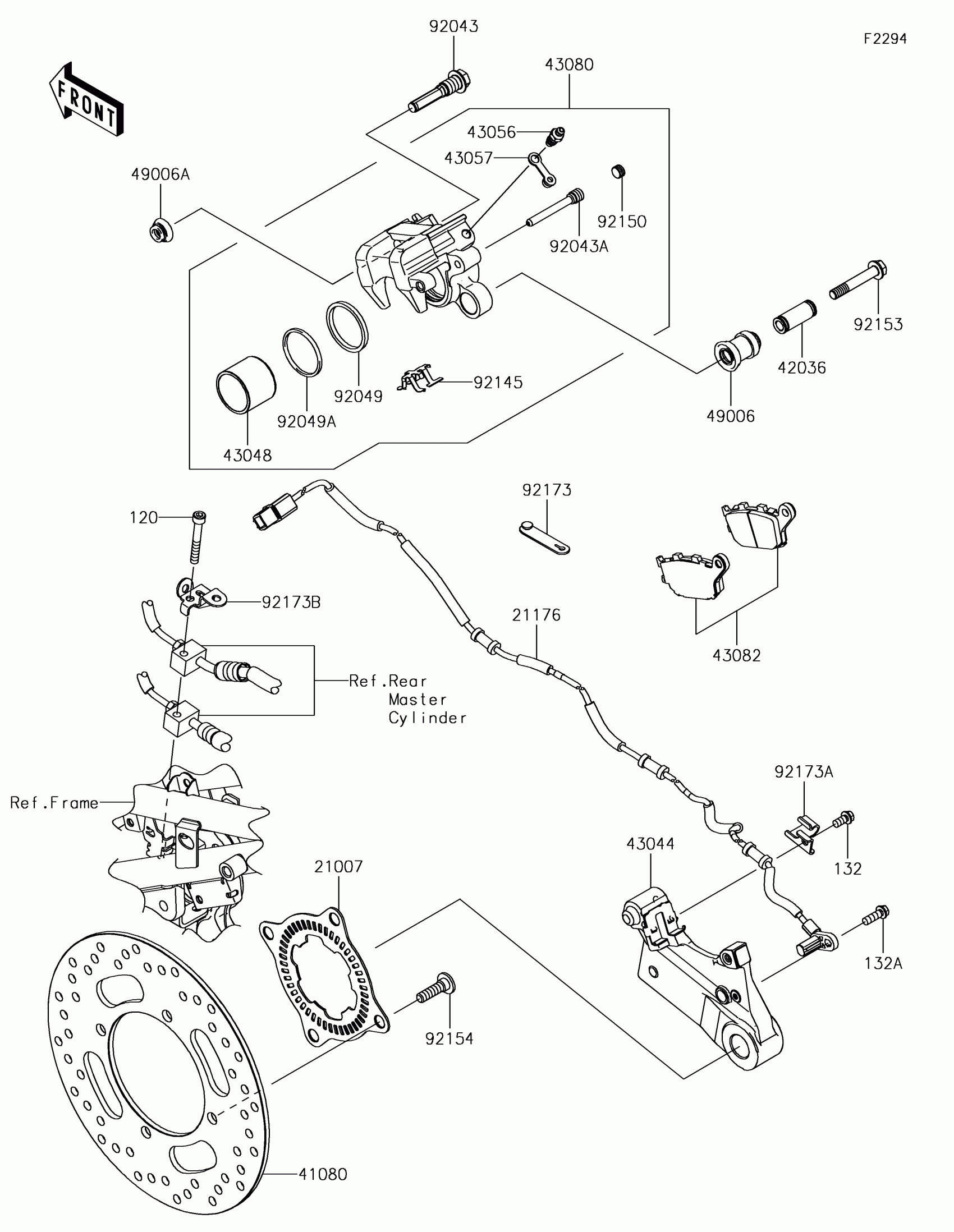

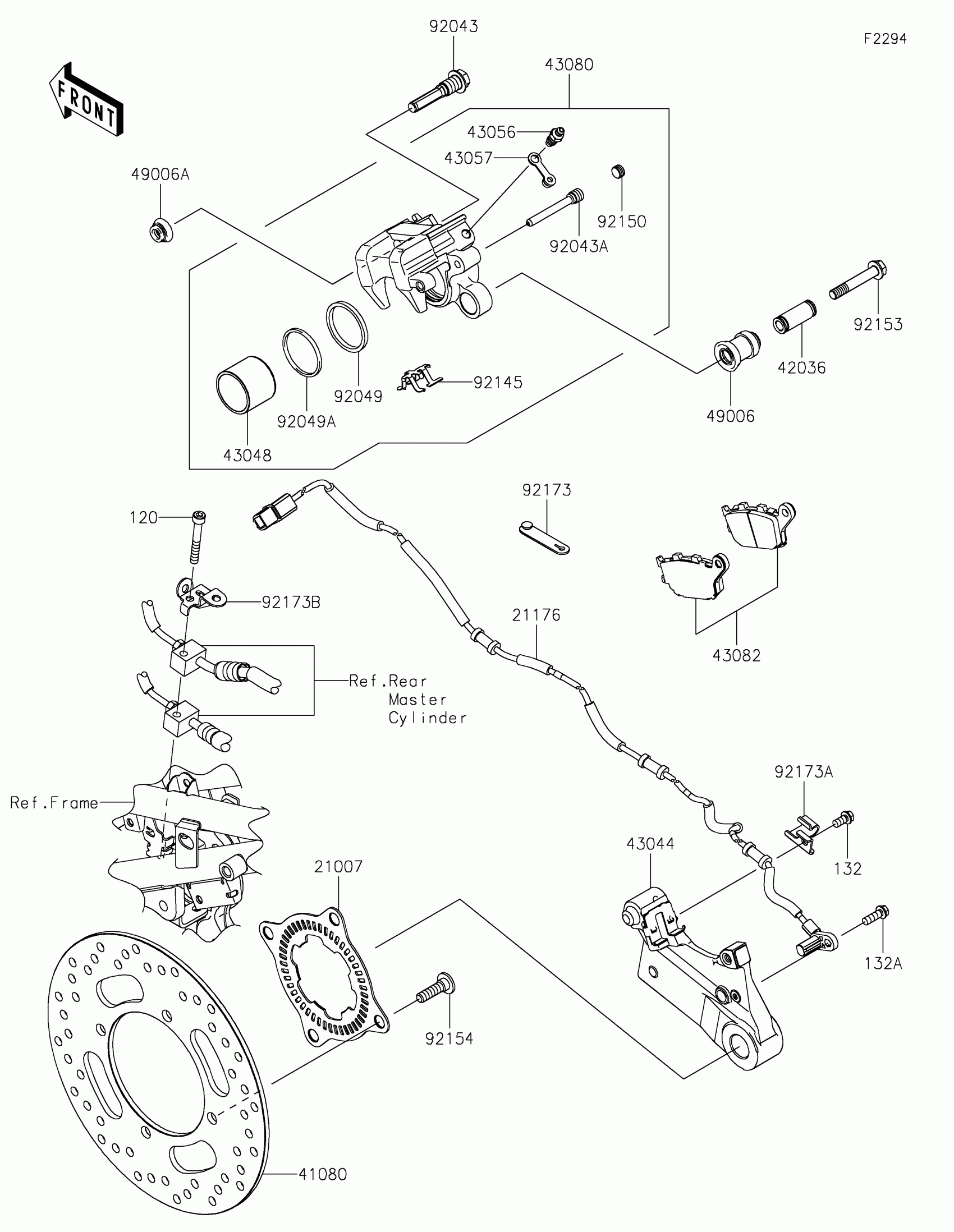

Kawasaki Z900RS Rear Brake Diagram

#

Description
Price

21007

ROTOR,RR SENSOR

21007-0660

$91.54

21176

SENSOR,SPEED,RR

21176-0877

$132.06

41080

DISC,RR

41080-0678

$276.86

42036

SLEEVE

42036-0050

$7.61

43044

HOLDER-COMP-CALIPER

43044-0086

$167.60

43048

PISTON-CALIPER

43048-0008

$31.05

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0050-DJ

Unavailable

43082

PAD-ASSY-BRAKE

43082-0185

$46.38

49006

BOOT

49006-0058

$12.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92043

PIN

92043-0137

$10.34

92043A

PIN,HANGER

92043-1520

$7.81

92049

SEAL-OIL

92049-1449

$3.81

92049A

SEAL-OIL

92049-1450

$3.85

92145

SPRING,PAD

92145-0493

$5.87

92150

BOLT,PLUG

92150-1692

$5.99

92153

BOLT,FLANGED

92153-1826

$7.84

92154

BOLT,SOCKET,8X30

92154-1865

$3.57

92173

CLAMP,RUBBER PLATE

92173-1229

$3.56

92173A

CLAMP

92173-1798

$3.15

92173B

CLAMP

92173-1799

$3.15

120

BOLT-SOCKET,6X45

120CA0645

$1.73

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

132A

BOLT-FLANGED-SMALL,6X18

132BC0618

$1.57
