2018 Kawasaki Z900RS Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2018 Kawasaki Z900RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

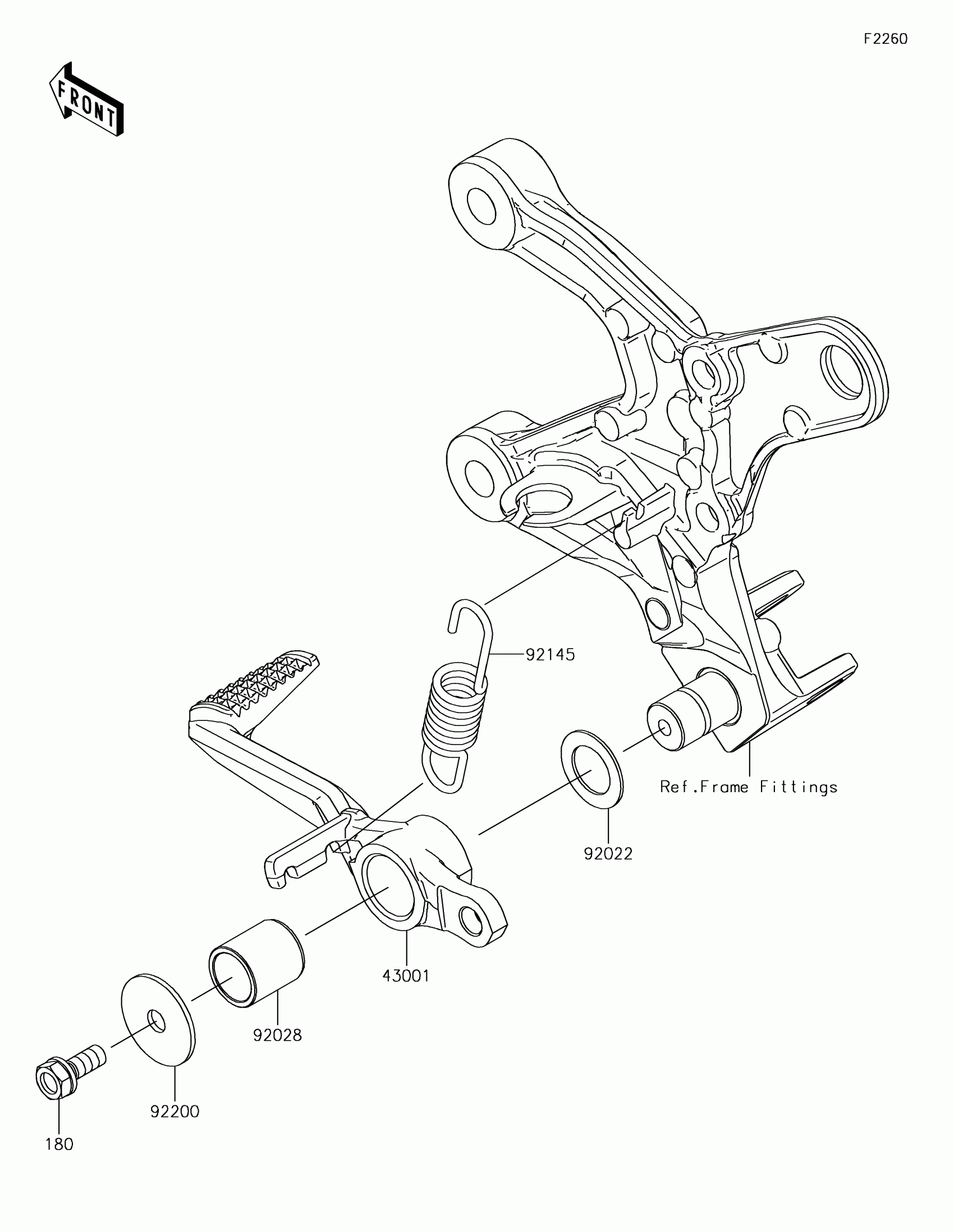

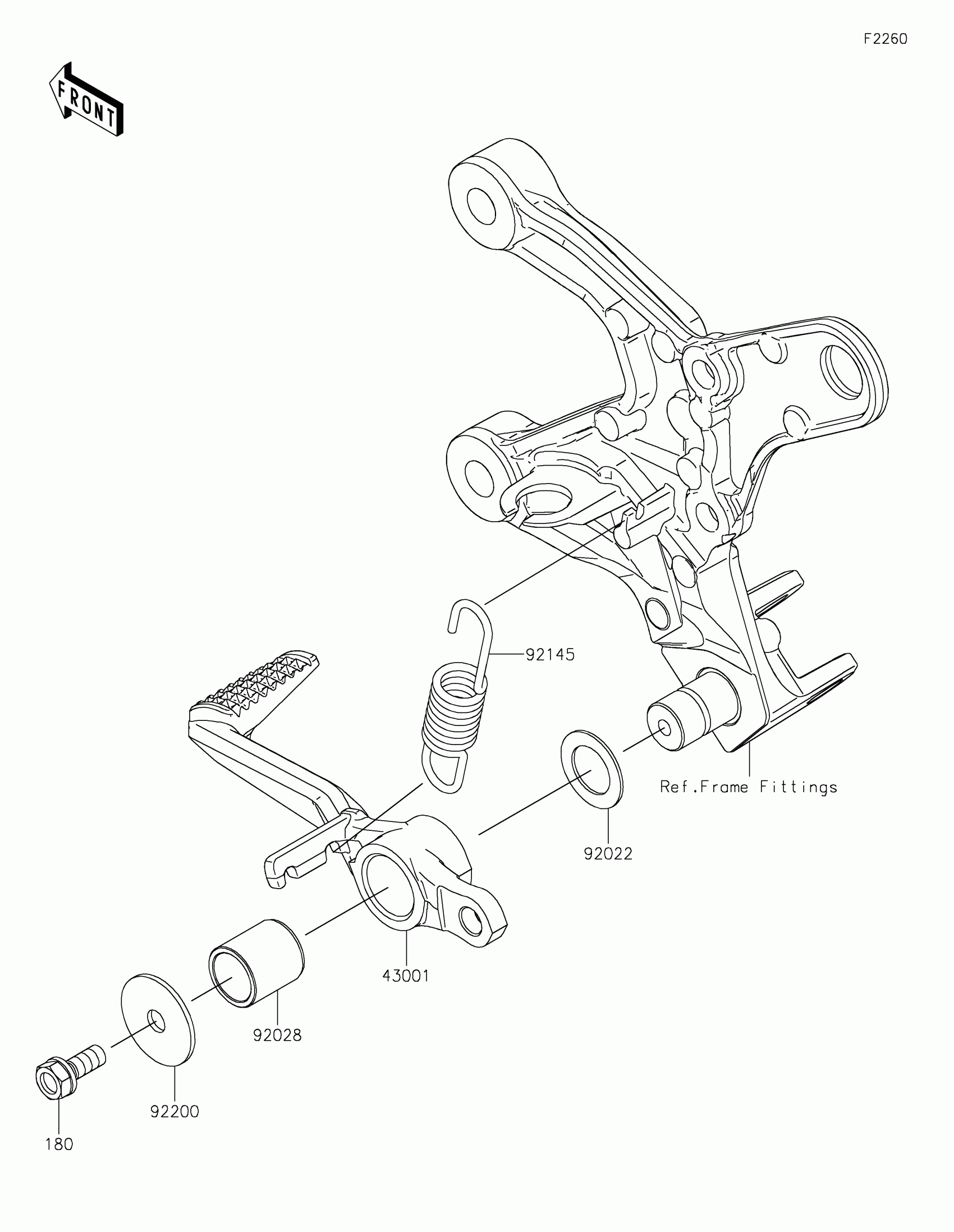

2018 Kawasaki Z900RS Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE

43001-0760

1
Out of stock

92022

WASHER,15.3X24X1

92022-326

1
Out of stock

92028

BUSHING,BRAKE PEDAL

92028-1282

1

$13.39

In stock

92145

1

$11.02

In stock

92200

WASHER,7X28X1.6

92200-0279

1
Out of stock

180

BOLT-UPSET-WS,6X16

180BA0616

1

$2.02

In stock
