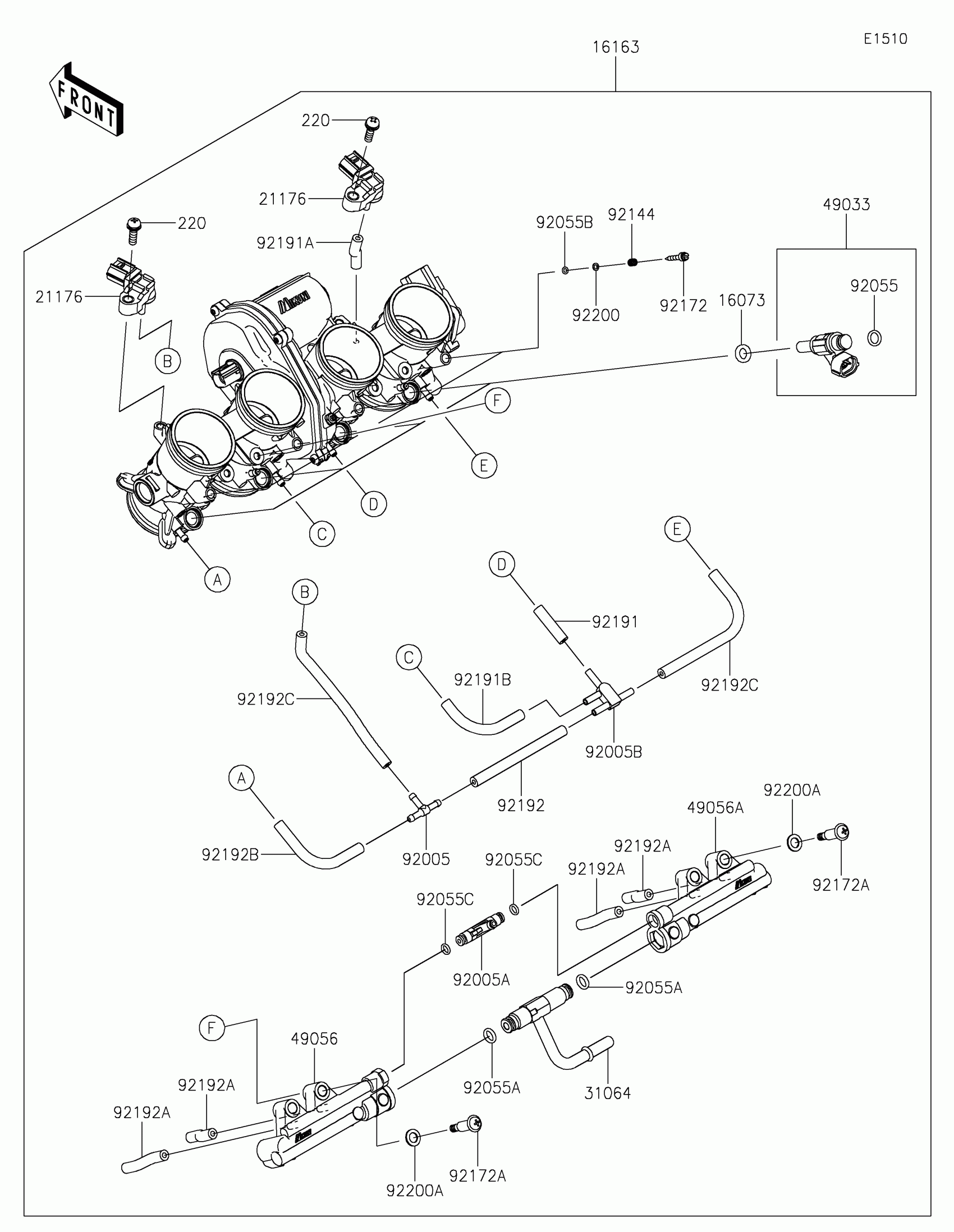

Kawasaki Z900 SE ABS Throttle Diagram

#

Description
Price

16073

INSULATOR

16073-0848

$11.03

16163

THROTTLE-ASSY

16163-1322

$1,928.51

21176

SENSOR,PRESSURE

21176-0906

$226.99

31064

PIPE-COMP

31064-0714

$87.59

49033

NOZZLE-INJECTION

49033-0563

$127.27

49056

PIPE-INJECTION,LH

49056-0569

$102.66

49056A

PIPE-INJECTION,RH

49056-0570

$93.85

92005

FITTING

92005-1380

$15.71

92005A

FITTING

92005-1475

$15.24

92005B

FITTING

92005-1476

$13.73

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.09

92055A

RING-O

92055-0761

$7.31

92055B

RING-O,AIR SCREW

92055-1658

$4.53

92055C

RING-O

92055-1758

$14.05

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$4.33

92172

SCREW

92172-0156

$14.39

92172A

SCREW,PIPE INJECTION

92172-0828

$2.11

92191

TUBE,3.2X7.4X30

92191-1550

$1.98

92191A

TUBE,3.2X7.4X40

92191-1551

$2.27

92191B

TUBE,3.2X7.4X70

92191-1552

$3.71

92192

TUBE,3.2X7.4X90

92192-1265

$15.02

92192A

TUBE,3.5X7.5X40

92192-1494

$9.53

92192B

TUBE,3.2X7.4X80

92192-2727

$9.92

92192C

TUBE,3.2X7.4X125

92192-2729

$9.92

92200

WASHER,PILOT AIR SCREW

92200-1564

$1.82

92200A

WASHER

92200-3807

$4.53

220

SCREW-PAN-CROS,5X16

220AA0516

$1.49
