2025 Kawasaki Z900 Se ABS Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2025 Kawasaki Z900 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

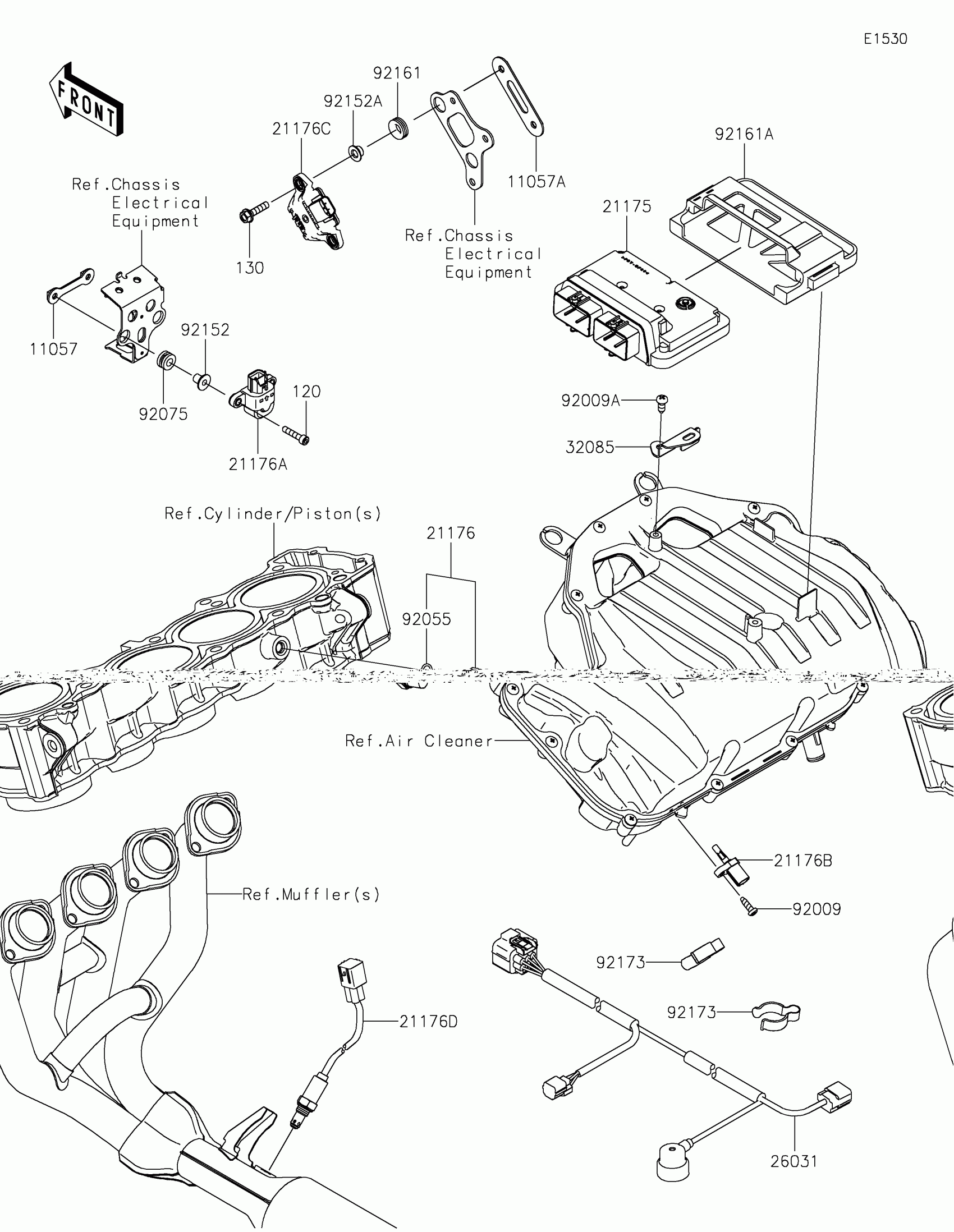

2025 Kawasaki Z900 Se ABS Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

1

$2.20

In stock

11057A

BRACKET,SENSOR

11057-0381

1

$4.31

In stock

21175

1

$1,206.04

In stock

21176

SENSOR,WATER TEMP

21176-0009

1

$63.44

In stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1

$79.06

In stock

21176B

1

$24.07

In stock

21176C

SENSOR,GYRO

21176-1126

1

$753.32

In stock

21176D

SENSOR,OXYGEN,FR

21176-1220

1

$235.82

In stock

26031

HARNESS,SUB

26031-3777

1

$61.70

In stock

32085

STOPPER

32085-0918

1

$2.46

In stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92009A

SCREW,6X14

92009-3845

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92075

DAMPER

92075-1912

1

$5.07

In stock

92152

COLLAR,5.6X8X11.2

92152-1562

1

$2.19

In stock

92152A

COLLAR,6.5X16X7.3

92152-2336

1
Out of stock

92161

DAMPER,10X20X6

92161-1592

1

$7.24

In stock

92161A

DAMPER,ECU

92161-2140

1

$25.56

In stock

92173

CLAMP

92173-2419

1

$10.51

In stock

120

BOLT-SOCKET,5X25

120CA0525

1

$3.86

In stock

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock
