2025 Kawasaki Z900 Se ABS Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2025 Kawasaki Z900 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

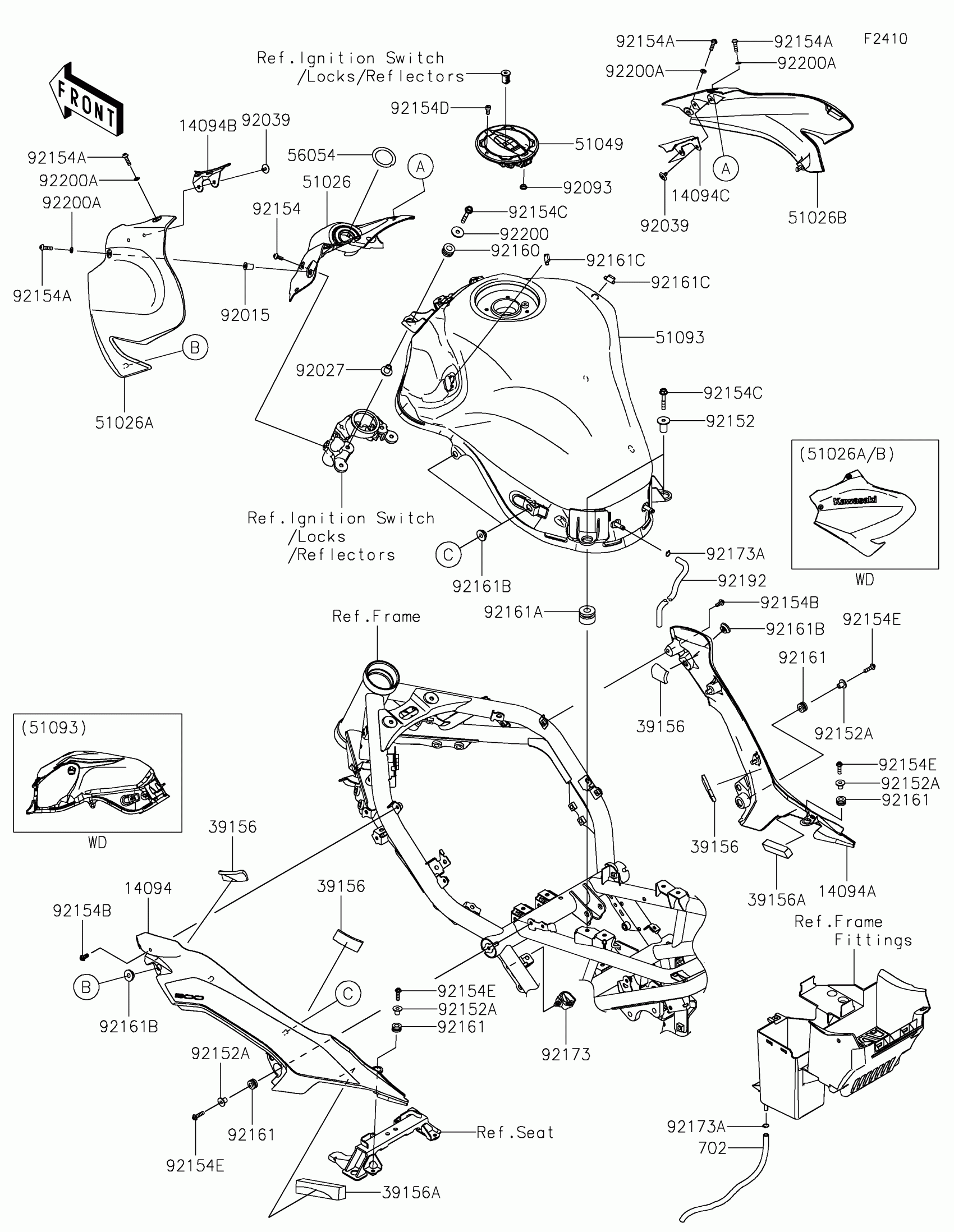

2025 Kawasaki Z900 Se ABS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14094

COVER,KNEE GRIP,LH

14094-0124

1
Out of stock

14094A

COVER,KNEE GRIP,RH

14094-0125

1
Out of stock

14094B

COVER,TANK ORNAMENT,LH

14094-0126

1
Out of stock

14094C

COVER,TANK ORNAMENT,RH

14094-0127

1
Out of stock

39156

PAD,20X50X5

39156-2191

1
Out of stock

39156A

PAD,15X66X10

39156-2215

1
Out of stock

51026

COVER TANK,CNT

51026-0027

1
Out of stock

51026A

COVER TANK,LH,M.G.GRAY

51026-5235-45W

1
Out of stock

51026B

COVER TANK,RH,M.G.GRAY

51026-5236-45W

1
Out of stock

51049

CAP-TANK,FUEL

51049-0756

1
Out of stock

51093

TANK-COMP-FUEL,EBONY

51093-5487-H8

1
Out of stock

56054

MARK,IG. SWITCH

56054-2963

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92027

COLLAR,6.5X10X14.1

92027-1183

1
Out of stock

92039

RIVET

92039-0768

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92152

COLLAR,6.3X12X22.6

92152-2252

1
Out of stock

92152A

COLLAR,5.6X8X11.2

92152-2342

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-0917

1
Out of stock

92154A

BOLT,SOCKET,5X18

92154-1945

1
Out of stock

92154B

BOLT,SOCKET,5X12

92154-4289

1
Out of stock

92154C

BOLT-FLANGED,6X35

92154-4290

1
Out of stock

92154D

BOLT-SOCKET,5X12

92154-4291

1
Out of stock

92154E

BOLT,SOCKET,5X20

92154-4301

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92161

DAMPER,8X16X8.6

92161-0685

1
Out of stock

92161A

DAMPER,12X28X21

92161-1468

1
Out of stock

92161B

DAMPER

92161-1810

1
Out of stock

92161C

DAMPER

92161-1917

1
Out of stock

92173

CLAMP

92173-0861

1
Out of stock

92173A

CLAMP,TUBE

92173-2442

1
Out of stock

92192

TUBE,DRAIN

92192-2895

1
Out of stock

92200

WASHER,6.5X22X1.6

92200-1087

1
Out of stock

92200A

WASHER,5.2X10X1

92200-2286

1
Out of stock

702

TUBE-RUBBER,6X9X330

702A06330

1
Out of stock
