2025 Kawasaki Z900 Se ABS Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2025 Kawasaki Z900 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

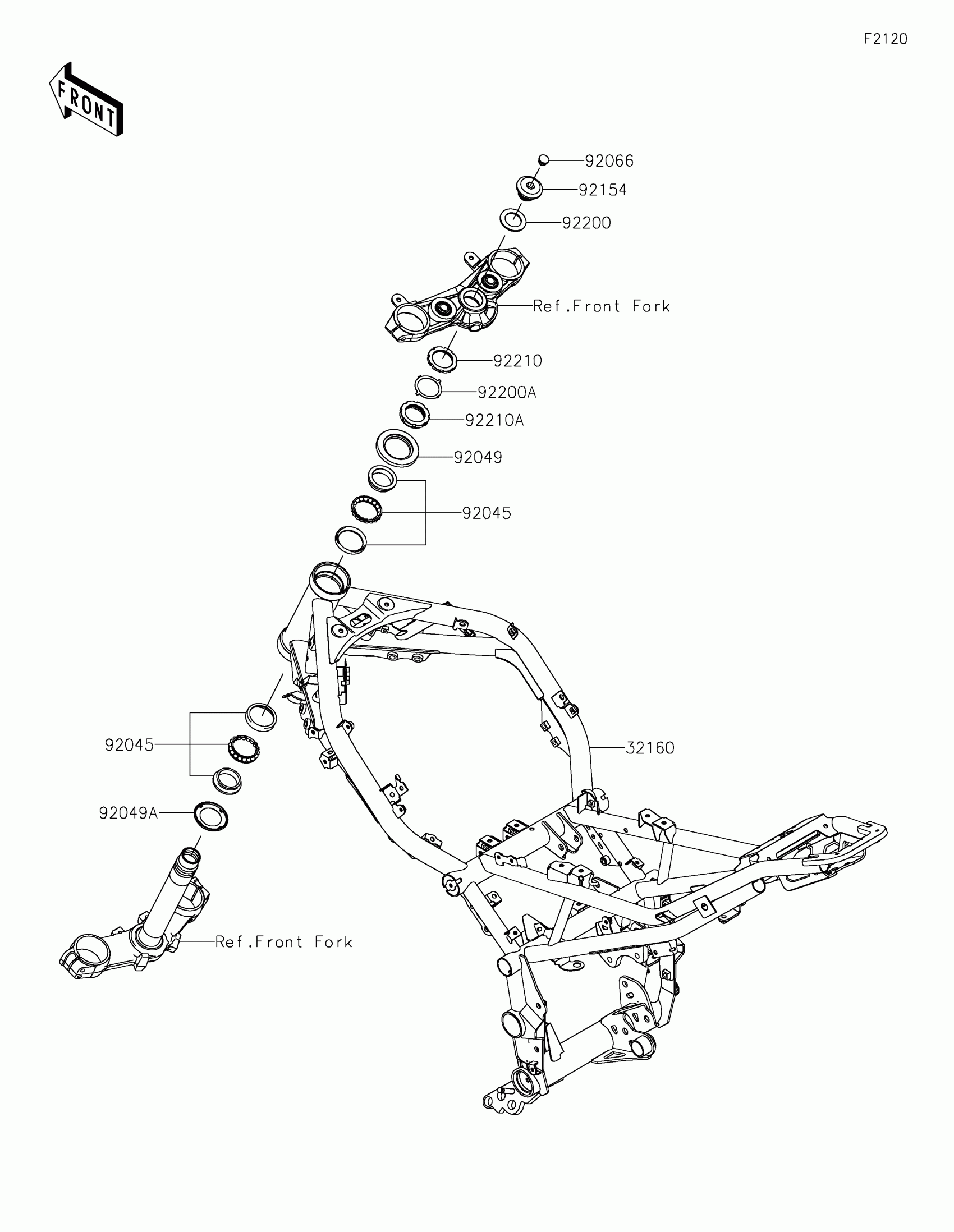

2025 Kawasaki Z900 Se ABS Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,G.B.GREEN

32160-2086-46Y

1

$2,018.19

In stock

92045

1

$41.48

In stock

92049

SEAL-OIL

92049-0131

1
Out of stock

92049A

SEAL-OIL

92049-0137

1
Out of stock

92066

PLUG

92066-0981

1

$1.31

In stock

92154

BOLT,26MM

92154-4351

1

$29.31

In stock

92200

WASHER,27X42X2.3

92200-0753

1
Out of stock

92200A

WASHER

92200-0781

1
Out of stock

92210

NUT,STEERING STEM,35MM

92210-0534

1
Out of stock

92210A

NUT,STEERING STEM,35MM

92210-0535

1
Out of stock
