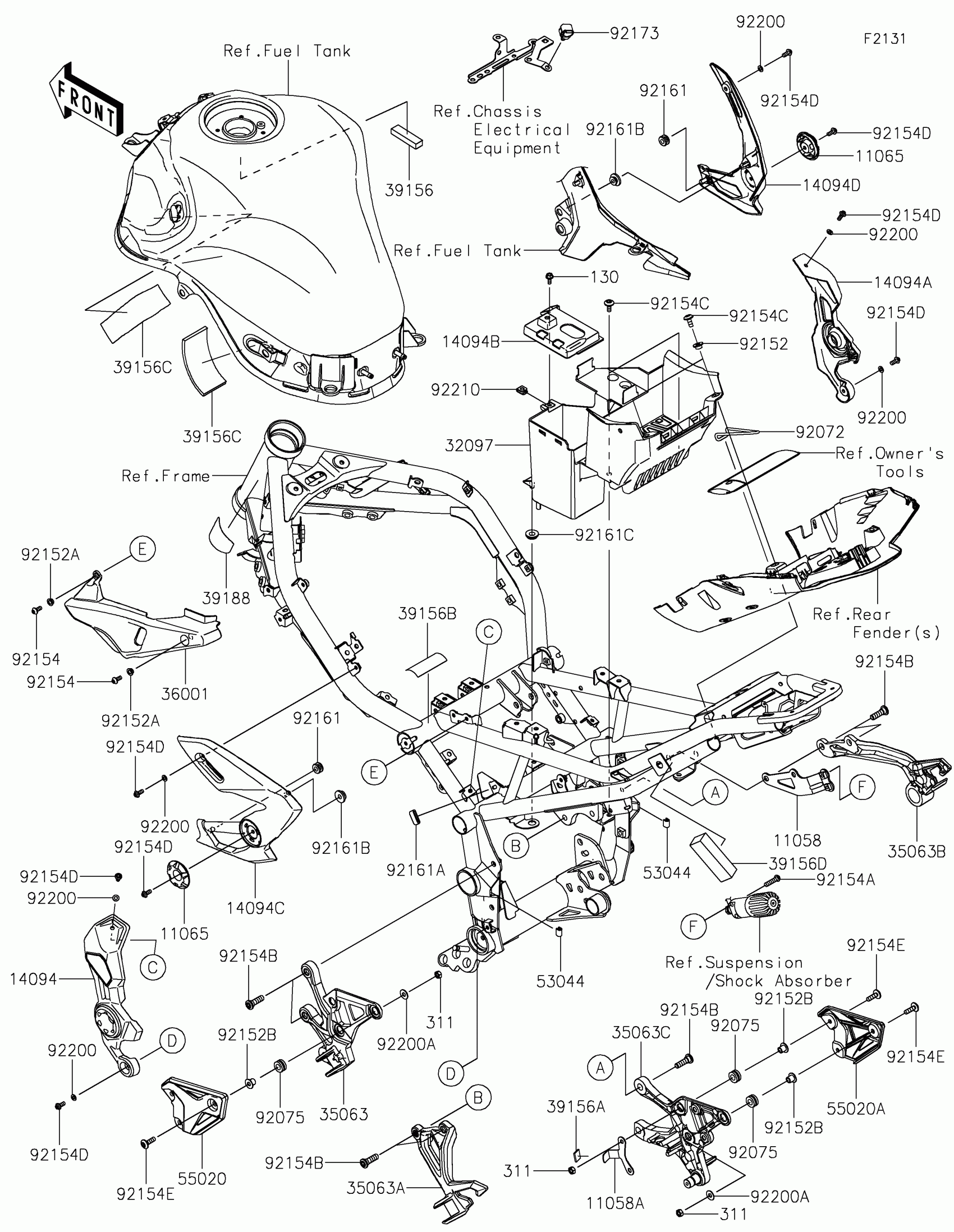

Kawasaki Z900 SE ABS Frame Fittings Diagram

#

Description
Price

11058

BRACKET,PRELOAD ADJUSTER

11058-1885

$11.39

11058A

BRACKET,STEP STAY

11058-2831

$2.37

11065

CAP,FRAME COVER

11065-1461

Unavailable

14094

COVER,PIVOT,LH,EBONY

14094-0130-H8

$55.46

14094A

COVER,PIVOT,RH,EBONY

14094-0131-H8

$54.33

14094B

COVER,CANISTER

14094-0136

$21.22

14094C

COVER,FRAME,LH,M.G.GRAY

14094-0425-45W

$66.15

14094D

COVER,FRAME,RH,M.G.GRAY

14094-0426-45W

$67.66

32097

CASE-BATTERY

32097-0574

$37.22

35063

STAY,STEP,FR,LH,F.S.BLACK

35063-1399-18R

$159.36

35063A

STAY,STEP,RR,LH,F.S.BLACK

35063-1452-18R

$143.22

35063B

STAY,STEP,RR,RH,F.S.BLACK

35063-1518-18R

$158.48

35063C

STAY,STEP,FR,RH,F.S.BLACK

35063-1610-18R

$157.77

36001

COVER-SIDE

36001-0778

$22.00

39156

PAD,15X55X15

39156-2129

$1.71

39156A

PAD,15X15X2

39156-2511

$0.69

39156B

PAD,70X30X1

39156-2535

$1.20

39156C

PAD,100X50X5

39156-2543

$1.87

39156D

PAD,55X25X25

39156-2916

$1.36

39188

TAPE

39188-0616

$7.44

53044

TRIM

53044-0577

$2.03

55020

GUARD,HEEL,LH

55020-2487

$9.47

55020A

GUARD,HEEL,RH

55020-2488

$9.47

92072

BAND,TOOL CASE

92072-0865

$11.61

92075

DAMPER

92075-1409

$5.61

92152

COLLAR,6.5X10X6.4

92152-2287

$2.20

92152A

COLLAR,5.7X8.5X4.5

92152-2354

$4.08

92152B

COLLAR

92152-2682

$1.74

92154

BOLT,SOCKET,5X12

92154-0917

$3.59

92154A

BOLT,SOCKET,6X25

92154-1142

$1.44

92154B

BOLT,SOCKET,8X28

92154-2334

$2.72

92154C

BOLT,SOCKET,6X14

92154-4286

$1.56

92154D

BOLT,SOCKET,5X12

92154-4289

$0.81

92154E

BOLT,SOCKET,6X20

92154-7441

$1.43

92161

DAMPER

92161-0864

$2.69

92161A

DAMPER,12X23

92161-1367

$0.95

92161B

DAMPER

92161-1810

$0.95

92161C

DAMPER

92161-2717

$1.27

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92200

WASHER,5.2X10X1

92200-2286

$0.43

92200A

WASHER,6.5X16X1.0

92200-2390

$0.69

92210

NUT

92210-0571

$2.69

130

BOLT-FLANGED,5X12

130BC0512

$1.47

311

NUT-HEX,6MM

311AA0600

$0.81
