2016 Kawasaki Z800 ABS Suspension/shock Absorber Diagram

← All diagrams

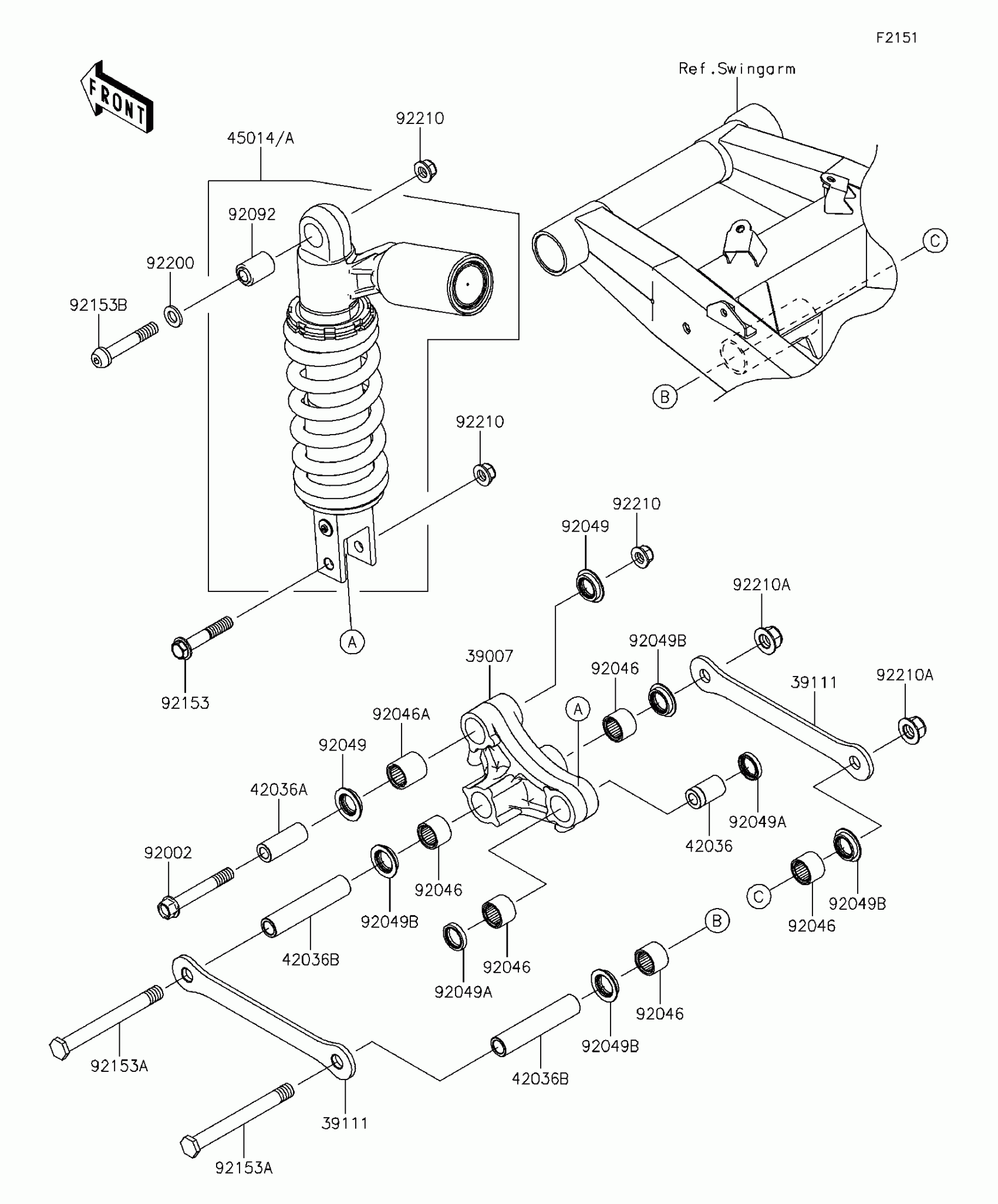

Find the part on the Suspension/shock Absorber diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Z800 ABS Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-0003

1
Out of stock

39111

ROD-TIE,SUSPENSION

39111-0017

1
Out of stock

42036

SLEEVE,10.1X18X30

42036-0717

1
Out of stock

42036A

SLEEVE,10.1X17X44.5

42036-0718

1
Out of stock

42036B

SLEEVE,12.1X18X90

42036-1360

1
Out of stock

45014

SHOCKABSORBER,SPG GRN+BODY BLK

45014-0386-37Z

1
Out of stock

45014A

SHOCKABSORBER,BLACK

45014-0386-52E

1
Out of stock

92002

BOLT,10X70

92002-1183

1
Out of stock

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

1
Out of stock

92046A

BEARING-NEEDLE,SFYZM172425

92046-1273

1
Out of stock

92049

SEAL-OIL,MHA17245.7F

92049-1223

1
Out of stock

92049A

SEAL-OIL,MHA18244

92049-1225

1
Out of stock

92049B

SEAL-OIL,KCR MF018N1

92049-1493

1
Out of stock

92092

BUSHING-RUBBER

92092-0003

1
Out of stock

92153

BOLT,FLANGED,10X55

92153-1546

1
Out of stock

92153A

BOLT,12X114

92153-1662

1
Out of stock

92153B

BOLT,SOCKET,10X60

92153-1837

1
Out of stock

92200

WASHER,10.5X19X2.3

92200-1042

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

92210A

NUT,LOCK,FLANGED,12MM

92210-1150

1
Out of stock
