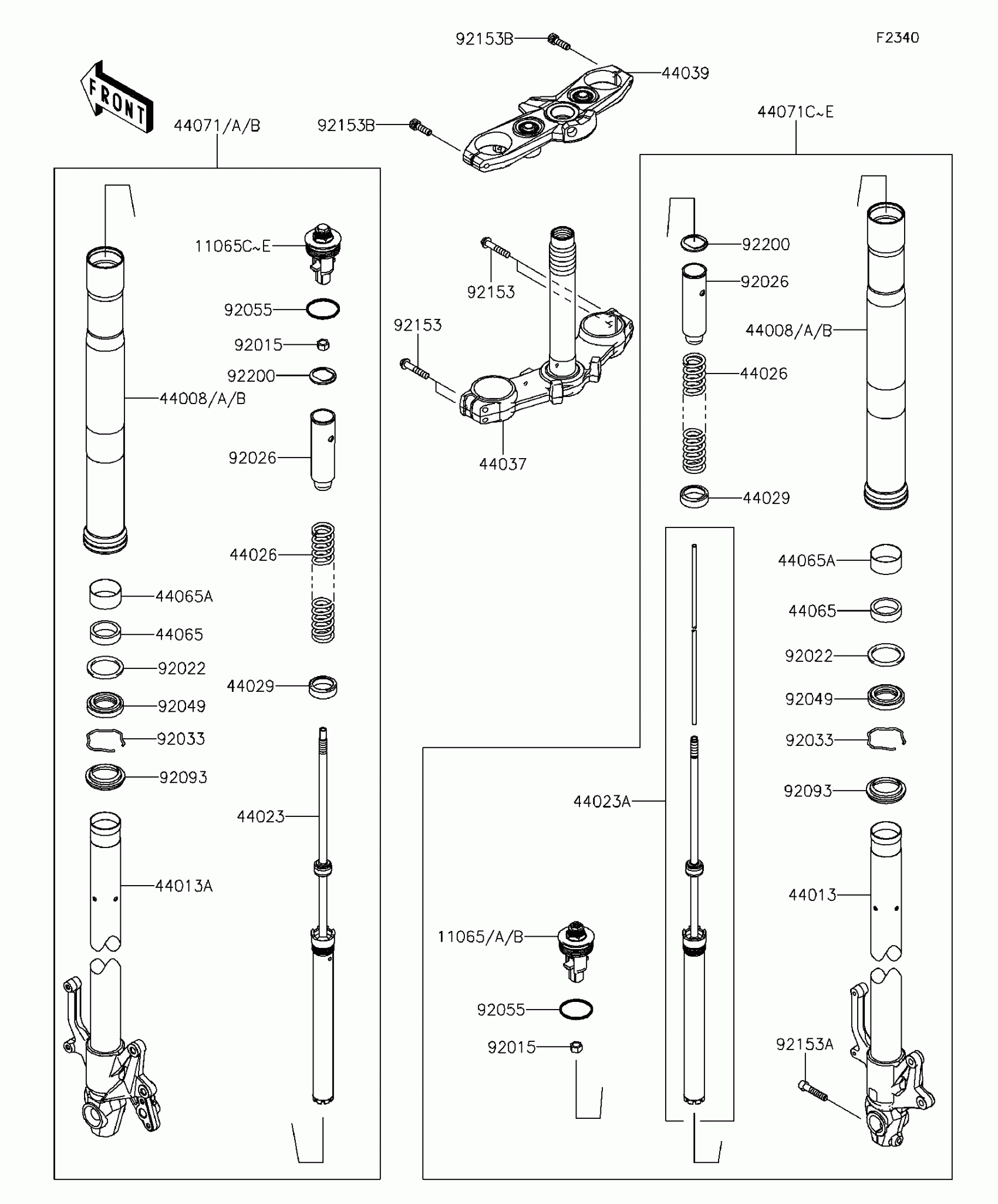

2016 Kawasaki Z800 ABS Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Z800 ABS Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,COMP.,RH,P.RED

11065-0781-10B

1

$159.99

In stock

11065A

CAP,COMP,RH,G.B.GREEN

11065-0781-50Y

1

$159.99

In stock

11065B

CAP,COMP,RH,D.RED

11065-0781-56N

1

$159.99

In stock

11065C

CAP,COMP.,LH,P.RED

11065-0782-10B

1

$159.99

In stock

11065D

CAP,COMP,LH,G.B.GREEN

11065-0782-50Y

1

$164.61

In stock

11065E

CAP,COMP,LH,D.RED

11065-0782-56N

1

$164.61

In stock

44008

PIPE-FORK OUTER,R.GOLD

44008-0062-484

1
Out of stock

44008A

PIPE-FORK OUTER,A.BLACK

44008-0062-499

1

$481.45

In stock

44008B

PIPE-FORK OUTER,D.RED

44008-0062-56N

1

$481.45

In stock

44013

1

$412.07

In stock

44013A

1

$439.74

In stock

44023

1

$458.56

In stock

44023A

1

$458.56

In stock

44026

SPRING-FRONT FORK

44026-0193

1

$94.00

In stock

44029

SEAT-FORK SPRING

44029-0015

1

$12.44

In stock

44037

1

$584.21

In stock

44039

1

$327.89

In stock

44065

BUSHING-FRONT FORK

44065-0042

1

$19.47

In stock

44065A

1

$19.99

In stock

44071

DAMPER-ASSY,FORK,LH,BLACK

44071-1095-56Q

1

$990.01

In stock

44071A

DAMPER-ASSY,FORK,LH,D.RED

44071-1095-56R

1

$990.01

In stock

44071B

DAMPER-ASSY,FORK,LH,GOLD

44071-1095-58E

1
Out of stock

44071C

DAMPER-ASSY,FORK,RH,BLACK

44071-1104-56Q

1

$980.11

In stock

44071D

DAMPER-ASSY,FORK,RH,D.RED

44071-1104-56R

1

$990.01

In stock

44071E

DAMPER-ASSY,FORK,RH,GOLD

44071-1104-58E

1
Out of stock

92015

NUT

92015-1795

1

$4.85

In stock

92022

1

$6.82

In stock

92026

SPACER,FORK

92026-0045

1
Out of stock

92033

RING-SNAP

92033-1036

1

$5.15

In stock

92049

SEAL-OIL

92049-0073

1
Out of stock

92055

1

$4.75

In stock

92093

1

$22.03

In stock

92153

BOLT,FLANGED,8X40

92153-0484

1
Out of stock

92153A

BOLT,SOCKET,8X40

92153-0506

1
Out of stock

92153B

BOLT,SOCKET,8X25

92153-1625

1

$3.69

In stock

92200

WASHER

92200-0085

1
Out of stock
